1kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable
1kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable
Specifications
Brand Name :
IEC60502-1 LV Cable
Certification :
IEC,CE,CCC,ISO
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different Qty
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Voltage :
600V, 1000V
Standard :
IEC60502-1
Feature :
LSZH
conductor :
Copper or Aluminium
Type :
XLPE insulated, PVC sheath, PVC Jacket
Armour :
Steel Wire
Description

1kv CU/XLPE/PVC Low Voltage Power Cable 1x70sqmm IEC60502-1


‌Application


1kv CU/XLPE/PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 UNE 21123 are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.



Construction

Conductor:Class 1 or class 2 stranded Copper conductor

Insulation:Cross-Linked Polyethylene(XLPE)

Inner sheath:Polyvinyl chloride (PVC)

Armour:Single core: Steel Tape Multi core: Galvanized Steel Tape

Outer sheath:Polyvinyl chloride (PVC)

Specification


Specs

mm²

Conductor diameter
mm

Nominal thickness of insulation
mm

Thickness of Lining mm

Nominal thickness of steel tape m m

Nominal thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

1×10

4.0

0.7

1.0

0.2

1.4

11.3

242

1×16

5.0

0.7

1.0

0.2

1.4

12.3

313

1×25

6.1

0.9

1.0

0.2

1.4

13.8

427

1×35

7.2

0.9

1.0

0.2

1.4

14.9

534

1×50

8.4

1.0

1.0

0.2

1.4

16.3

671

1×70

10.0

1.1

1.0

0.2

1.5

18.3

904

1×95

12.0

1.1

1.0

0.2

1.6

20.5

1187

1×120

13.0

1.2

1.0

0.2

1.6

21.7

1434

1×150

14.9

1.4

1.0

0.2

1.7

24.2

1751

1×185

16.5

1.6

1.0

0.2

1.7

26.3

2125

1×240

18.4

1.7

1.0

0.2

1.8

28.6

2704

1×300

21.0

1.8

1.0

0.2

1.9

31.6

3330

1×400

23.4

2.0

1.2

0.2

2.0

35.0

4227

1×500

26.6

2.2

1.2

0.5

2.2

40.3

5713

1×630

30.0

2.4

1.2

0.5

2.3

44.3

7136


About Us

1kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable

PROJECTS


1kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable


Package

1kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable

FAQ


Q1. Are you a manufacture or trading company?

A1.We are a professional manufacturer since 2oo4 and engaged in the production of wire and cable processing.The factory is located in Hebei Province,China,and is a leading enterprise in the local cable industry.

Q2. Can I get free samples?

A2.Of course,we could provide free samples and you charge the shipping cost.

Q3.How long is delivery time?

A3.lt usually takes 3-10days for sample order and 10-30days for big order.

Q4.What is your payment term?

A4.Our payment term is usually T/T30% in advanced,the balance before picking up the goods

Q5.what is the package of the cable?

A5.The package is usually wooden drum or steel wooden drum or coil.also according to customer's requirements.

Q6.Do you accept OEM or ODM service?

A6.Of course,we could customize the products according to your specific requirements.

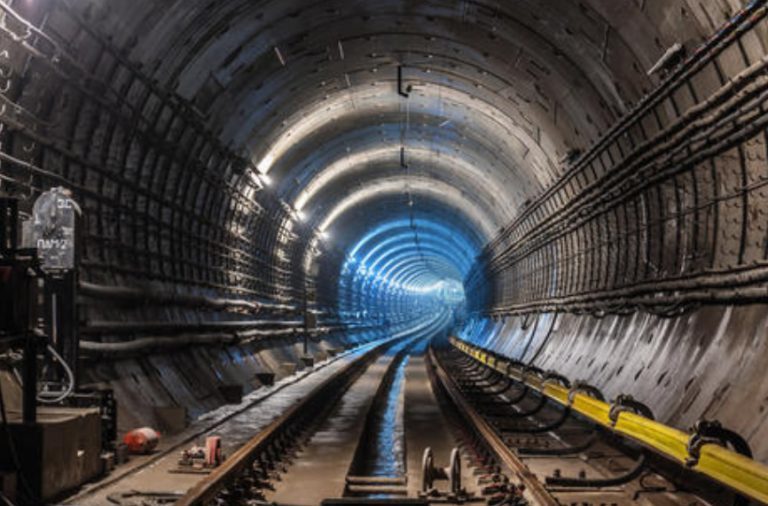

Application
