Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation
Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation
Specifications
Brand Name :
Medium Voltage Cable
Model Number :
NYBY NAYBY
Certification :
IEC,CE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Armored :
Steel Wire
Sheath Material :
PVC
Insulation :
XLPE
Rated Voltage :
6/10kV
Conductor :
Copper
No of Core :
1,3
Description

Copper Conductor Medium Voltage Cable 8.7/15kV Cu/XLPE/PVC/SWA

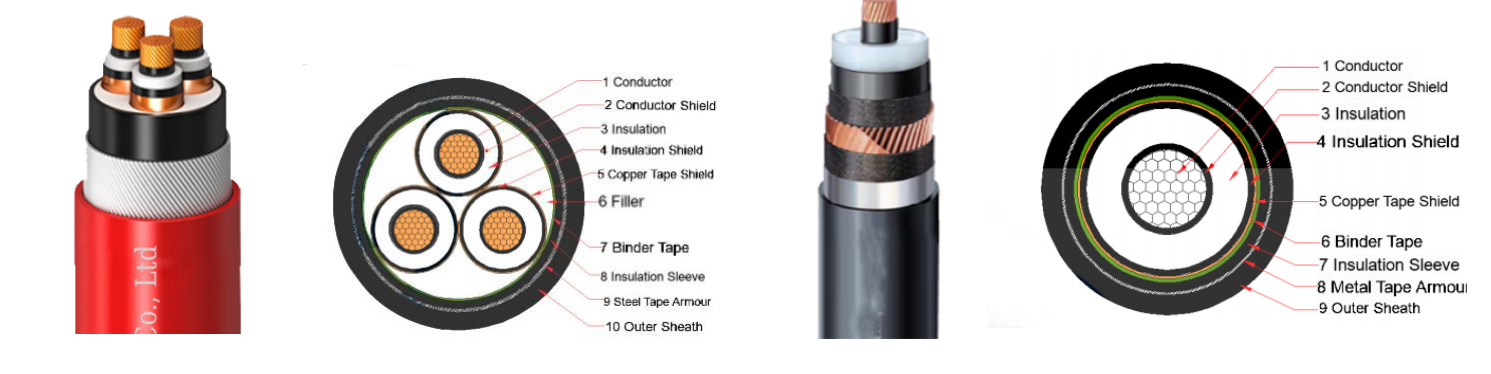

Construction


Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation




  1. Conductor: Circular compacted stranded Copper or aluminium
  2. Conductor screen: Extruded semi-conductive compound
  3. Insulation: XLPE
  4. Insulation screen: Extruded semi-conductive compound
  5. Metallic screen: Copper Wire
  6. Binder tape: non-hygroscopic material
  7. Inner covering(bedding): PVC
  8. Metallic armor: Galvanized steel tape


Application


Medium-voltage cables (typically rated between 1 kV and 35 kV) are extensively used in power distribution networks to deliver electricity from substations to industrial, commercial, and residential areas. They are commonly employed in underground and overhead systems, industrial plants, renewable energy installations (e.g., solar farms, wind turbines), and infrastructure projects like airports, hospitals, and transportation hubs. These cables also serve in mining operations, oil and gas facilities, and urban grids due to their durability, high current-carrying capacity, and resistance to environmental stressors. Insulated with materials like XLPE, they ensure efficient energy transfer, safety in harsh conditions, and reliability in medium-voltage application


Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation


Specification


YJV62 YJV22-3.6/6kV Cable Structure Parameters


Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×25

6.0±0.1

12.2

20.5

751

3×25

6.0±0.1

12.2

39.1

2415

1×35

6.6±0.2

12.8

21.1

853

3×35

6.6±0.2

12.8

40.8

2775

1×50

7.6±0.2

13.8

22.3

1006

3×50

7.6±0.2

13.8

43.1

3250

1×70

9.2±0.2

15.4

23.9

1248

3×70

9.2±0.2

15.4

46.9

4063

1×95

10.9±0.2

17.1

25.8

1551

3×95

10.9±0.2

17.1

50.7

5015

1×120

12.2±0.2

18.4

27.1

1813

3×120

12.2±0.2

18.4

54.1

5919

1×150

13.6±0.2

19.8

28.6

2118

3×150

13.6±0.2

19.8

57.4

6902

1×185

15.2±0.2

21.4

30.2

2499

3×185

15.2±0.2

21.4

61.1

8136

1×240

17.4±0.2

23.8

32.8

3103

3×240

17.4±0.2

23.8

66.8

10099

1×300

19.5±0.2

26.3

36.9

4116

3×300

19.5±0.2

26.3

72.7

12239

1×400

22.0±0.2

29.2

40.0

5008

3×400

22.0±0.2

29.2

81.0

15868

1×500

24.8±0.2

33.2

44.4

6222

3×500

24.8±0.2

33.2

90.1

19700

1×630

28.2±0.2

36.6

48.1

7695

3×630

28.2±0.2

36.6

98.3

24392

1×800

34.0±0.2

42.4

54.1

9734



ABOUT US

Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation

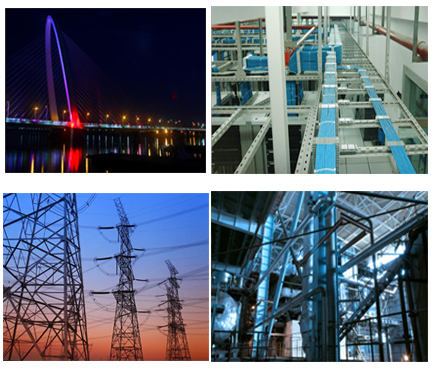

APPLICATION

Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation


PACKAGE


Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation


PARTNER


Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE InsulationCopper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation


FAQ

1. Are you a manufacturer or trading company?
We are a professional cable manufacturer more than 20 years.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
We adopt flexible MOQ Policy. But the cable is very heavy, a suitable quantity could avoid the high freight.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight.

5. Does your company accept OEM production?
Yes, We support OEM/ODM service
