Fire Resistant MV Power Cable CU/XLPE/CTS/CWS/SWA/FR-PVC Cable for Outgoing Line of Power Station

Application

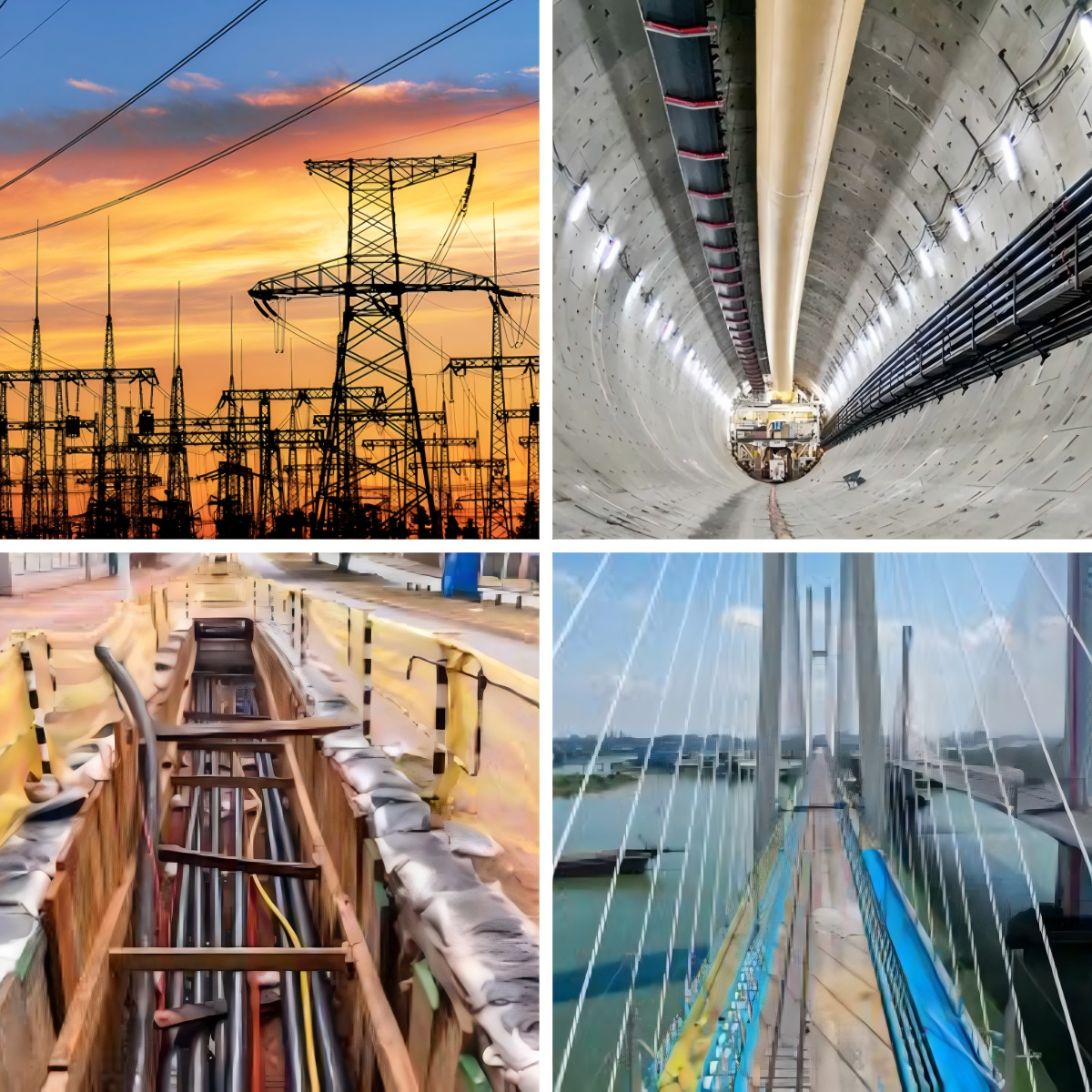

This product is suitable for power supply lines with flame retardant requirements, such as urban underground power grids, power station outgoing lines, and internal power lines of industrial and mining enterprises.

Construction

Conductor: Tightly press round conductor

Conductor Screen:Semi-conductive shield

Insulation:XLPE

Insulation shield:Semi-conductive shield

Metal shielding layer:Copper tape: Copper Wire:35kV above 500mm2

Binder tape:Non-woven fabrics

Isolation sleeve:Polyvinyl chloride(PVC)

Armour:Non-magnetic steel wire

Outer sheath:Polyvinyl chloride (PVC)

Characteristic

Voltage Rating Uo/U(U_M)

3.6/6(7.2)kV 6/6(7.2)kV 6/10(12)kV 8.7/10(12)kV 8.7/15(17.5)kV 12/20(24)kV

18/20(24)kV 18/30(36kV ) 21/35(40.5)kV 26/35(40.5)kV

Maximum operating temperature of conductor:+90℃

Operating ambient temperature: -15℃~+55℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius

Single core:15D

Multicire: 12D

(D is the actual outer diameter of the cable)

Parameter

This table shows 21/36kv data, for more voltage, please contact us for details
