Underground Medium Voltage 11kv 15kv 22kv 70mm-400 Sqmm Aluminium Armoured Power Cable
Underground Medium Voltage 11kv 15kv 22kv 70mm-400 Sqmm Aluminium Armoured Power Cable
Specifications
Brand Name :
Custom Logo MV Cable
Model Number :
YJV
Certification :
ISO,CCC,CE,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10work days
Packaging Details :
Wooden Drum
Insulation Material :
XLPE
Screen :
Copper Wire
Rated Voltage :
21/35kV
No of Core :
3
Conductor :
Copper or Alumnium
Jacket :
PVC
Description

Underground Medium Voltage 11kv 15kv 22kv 70mm-400 Sqmm Aluminium Armoured Power Cable



Application

The cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 1KV to 35KV and frequency 50Hz, as in power supply stations, indoors and in cable ducts, outdoors, underground.

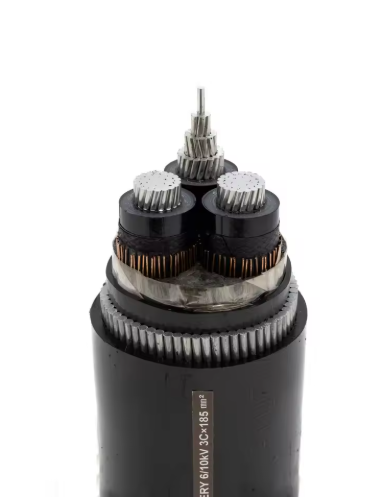

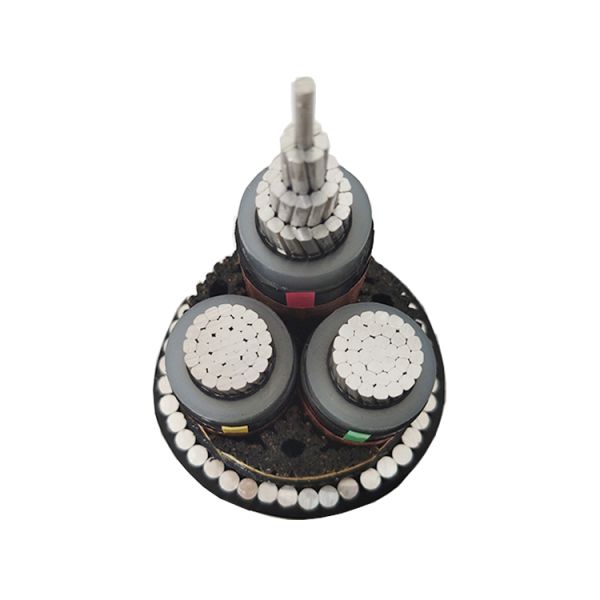

Construction

Conductor:Class 2 Aluminium conductor

Conductor:Semi-conductive shield

Insulation:Cross-Linked Polyethylene(XLPE)

Insulation shield:Semi-conductive shield

Metal shielding layer:Copper tape: 50-400mm Copper Wire: 500-800mm2

Binder tape:Non-woven fabrics

Isolation sleeve:Polyvinyl chloride(PVC)

Armour:Non-magnetic steel Tape

Outer sheath:Polyvinyl chloride (PVC)


Underground Medium Voltage 11kv 15kv 22kv 70mm-400 Sqmm Aluminium Armoured Power CableUnderground Medium Voltage 11kv 15kv 22kv 70mm-400 Sqmm Aluminium Armoured Power Cable

Parameter

Specs
mm²

Conductor diameter
mm

Nominal thickness of insulation
mm

Outside diameter of insulation
±1.0mm

Nominal thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

1×50

8.2

10.5

31.6

2.3

44.1

2354

1×70

100

10.5

33.2

2.4

45.9

2551

1×95

11.6

10.5

35.0

2.4

47.7

2755

1×120

13.0

10.5

36.4

2.5

49.4

2953

1×150

14.4

10.5

37.8

2.5

51.0

3166

1×185

16.1

10.5

39.6

2.6

53.0

3425

1×240

18.4

10.5

41.8

2.6

55.2

3744

1×300

20.6

10.5

44.0

2.7

57.9

4135

1×400

23.4

10.5

46.8

2.8

60.9

4654

1×500

26.6

10.5

50.6

3.0

67.5

5647

1×630

30.0

10.5

54.0

3.1

71.3

6335

1×800

34.0

10.5

58.0

3.2

75.4

7146


Underground Medium Voltage 11kv 15kv 22kv 70mm-400 Sqmm Aluminium Armoured Power Cable

Underground Medium Voltage 11kv 15kv 22kv 70mm-400 Sqmm Aluminium Armoured Power Cable

Underground Medium Voltage 11kv 15kv 22kv 70mm-400 Sqmm Aluminium Armoured Power Cable


Underground Medium Voltage 11kv 15kv 22kv 70mm-400 Sqmm Aluminium Armoured Power Cable


Underground Medium Voltage 11kv 15kv 22kv 70mm-400 Sqmm Aluminium Armoured Power Cable


FAQ

1.What types of cable products does your company primarily manufacture?
We specialize in the production of various types of power cables, control cables, communication cables, and specialty cables, including but not limited to PVC-insulated cables, XLPE power cables, mining cables, marine cables, and photovoltaic cables.
2.How do you ensure product quality for export?
We follow international standards (IEC, UL) and maintain strict quality control with regular inspections.

3. What payment methods are accepted for international orders?
We accept L/C, T/T, Western Union, PayPal, and bank transfers.

4. Can you provide samples before placing a large order?
Yes, we offer free samples for new customers to verify product quality.

5. How long is the typical delivery time for international orders?
Delivery times vary by destination, but we aim for 2-6 weeks for most orders.

6. Do you offer customization for special cable types?
Yes, we can customize cable specifications based on customer requirements.
