XLPE Insulated Aluminum Cable 3 Core Armoured Cable Medium Voltage 120mm 240mm
XLPE Insulated Aluminum Cable 3 Core Armoured Cable Medium Voltage 120mm 240mm
Specifications
Brand Name :
Aluminium Power Cable
Model Number :
NA2XRY NA2X2Y
Certification :
IEC,CE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Voltage :
26/35kV
Insulation :
XLPE
Jacket :
PVC
No of Core :
1,3
Armouring :
Steel Tape or Steel Wire
Conductor :
Aluminium
Description

XLPE Insulated Aluminum Cable 3 Core Armoured Cable Medium Voltage 120mm 240mm


APPLICATION

The cables have the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route. mainly used in transmission and distribution lines because of its excellent electrical and physical properties.

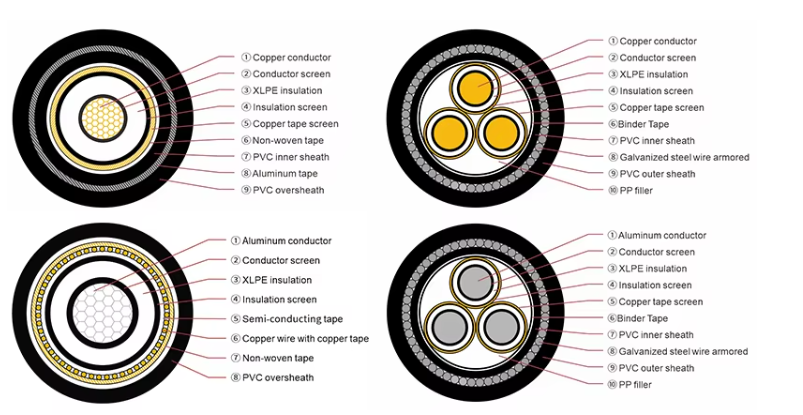

CONSUCTRUCTION

Conductor:Class 2 Aluminium conductor

Conductor :Semi-conductive shield

Insulation:Cross-Linked Polyethylene(XLPE)

Insulation shield:Semi-conductive shield

Binder tape: Non-woven fabrics:

Isolation sleeve: Polyvinyl chloride(PVC)

Armour:Non-magnetic steel Tape or Steel Wire

Outer sheath:Polyvinyl chloride (PVC)


XLPE Insulated Aluminum Cable 3 Core Armoured Cable Medium Voltage 120mm 240mm



CHARACTERISTIC

Voltage Rating Uo/U: 6kV～35 kV.

Temperature Rating: Maximum operating temperature of conductor:+90℃

Operating ambient temperature: -15℃~+55℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius

single unarmored cable: 20 x OD
multi-core unarmored cable: 15 x OD
single armored cable: 5 x OD
multi-core armored cable: 12 x OD


SPECIFICATION


26/35kV


Specs

Conductor diameter

Outer thickness of insulation

Approx outer diameter of cable

Approx cable weight

Specs

Conductor diameter

Outer thickness of insulation

Approx outer diameter of cable

Approx cable weight

mm²

mm

±1.0mm

mm

kg/km

mm²

mm

±1.0mm

mm

kg/km

1×50

7.6±0.2

312

44.1

3697

3×50

7.6±0.2

31.2

85.5

10922

1×70

9.2±0.2

32.8

45.8

4073

3×70

9.2±0.2

32.8

89.3

12127

1×95

10.9±0.2

34.5

47.5

4481

3×95

10.9±0.2

34.5

93.3

13610

1×120

12.2±0.2

35.8

49.0

4874

3×120

12.2±0.2

35.8

96.5

14791

1×150

13.6±0.2

37.2

50.6

5299

3×150

13.6±0.2

37.2

99.9

16179

1×185

15.2±0.2

38.8

52.3

5778

3×185

15.2±0.2

38.8

103.5

17856

1×240

17.4±0.2

41.0

54.5

6530

3×240

17.4±0.2

41.0

108.7

20327

1×300

19.5±0.2

43.1

57.0

7360

3×300

19.5±0.2

43.1

115.3

24487

1×400

22.0±0.2

45.6

59.7

8363

3×400

22.0±0.2

45.6

121.4

27921

1×500/35

24.8±0.2

492

66.0

10213

3×500/35

24.8±0.2

49.2

134.8

34088

1×630/35

28.2±0.2

52.6

69.7

11899

3×630/35

28.2±0.2

52.6

1,448

42268

1×800/35

33.7±0.2

58.1

76.8

15129



CONTACTR US FOR MORE VOLATAGE
