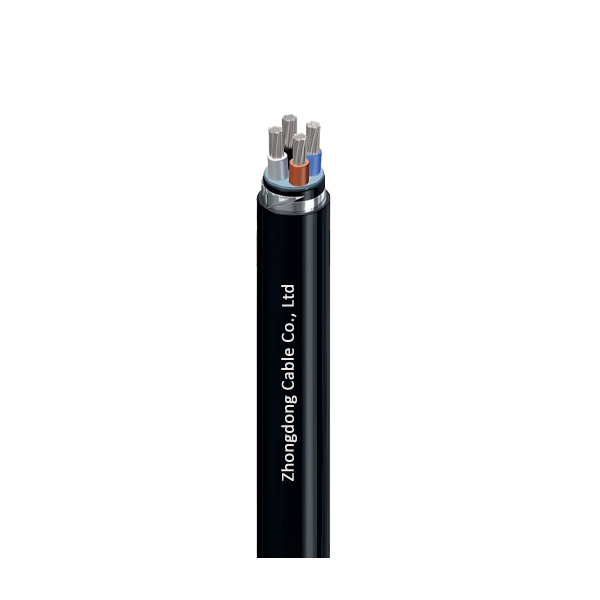

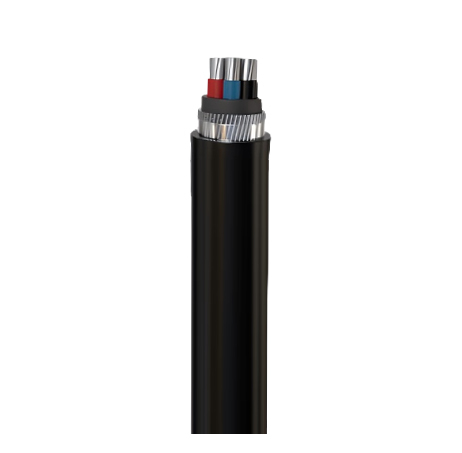

Armored Aluminium Conductor Cable AL/XLPE/STA SWA/PVC NA2XRY NA2X2Y

APPLICATION

• Substation connections
• Urban underground grids
• Mining and heavy industrial power distribution

CONSUCTRUCTION

Conductor:Class 2 Aluminium conductor

Conductor :Semi-conductive shield

Insulation:Cross-Linked Polyethylene(XLPE)

Insulation shield:Semi-conductive shield

Binder tape: Non-woven fabrics:

Isolation sleeve: Polyvinyl chloride(PVC)

Armour:Non-magnetic steel Tape or Steel Wire

Outer sheath:Polyvinyl chloride (PVC)

CHARACTERISTIC

Voltage Rating Uo/U

26/35(40.5)kV

Temperature Rating

Maximum operating temperature of conductor:+90℃

Operating ambient temperature: -15℃~+55℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius

Single Core 15D

(D is the actual outer diameter of the cable)

SPECIFICATION

26/35kV

CONTACTR US FOR MORE VOLATAGE
