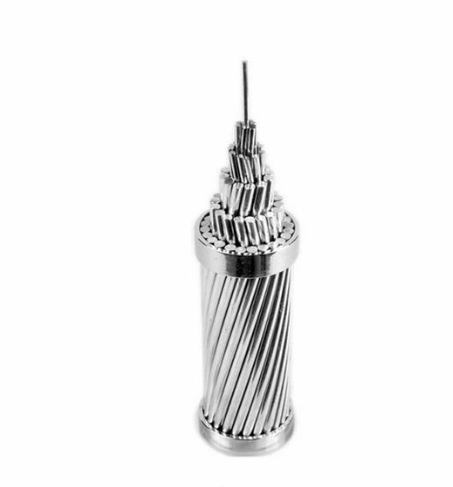

AACSR/AC Aluminum Alloy Conductor Aluminum Clad Steel Reinforced IEC 61089
AACSR/AC Aluminum Alloy Conductor Aluminum Clad Steel Reinforced IEC 61089
Specifications
Brand Name :
AACSR/AC
Model Number :
AACSR/AC
Certification :
ISO,CCC,TUV,CE,VDE
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Material :
Aluminium Alloy
Usage :
Overhead
Standard :
IEC61089
Description

AACSR/AC Aluminum Alloy Conductor Aluminum Clad Steel Reinforced IEC 61089


Application

AACSR/AC (Aluminum Alloy Conductor Aluminum Clad Steel Reinforced) is widely used for overhead power transmission and distribution. It offers high tensile strength, excellent corrosion resistance, and reliable conductivity, making it ideal for long-span lines, coastal areas, and harsh environmental conditions. This conductor ensures stable and efficient power transmission in medium and high voltage networks.

Features:

  • Aluminum alloy strands for improved strength and conductivity
  • Aluminum-clad steel core for enhanced tensile performance
  • Excellent resistance to corrosion, suitable for coastal and polluted environments
  • For long-span installations and heavy load conditions


Typical Use:

  • Medium and high voltage overhead lines
  • River crossings and long-span routes
  • Coastal, humid, and industrial areas

Standards:

  • ASTM B711 – Aluminum Alloy Steel Reinforced (AACSR)
  • ASTM B502 – Aluminum-Clad Steel Core Wire
  • IEC 61089 – Round Wire Concentric Lay Overhead Electrical Conductors


Specification:


AACSR/AW-AACSR/AC/1120 AS 3607

Code Stranding and Wire
Diameter(mm)		 Nominal Overall
Diameter(mm)		 Cross-sectional
Area(mm²)		 Approx.Mass
(kg/km)		 Break.Load
(kN )		 Equiv.Aluminium
Area(mm²)		 20℃(Ω)
1120 Steel
Archery 1120 6/3.00 1/3.00 9.0 49.48 163 18.4 42.7 0.662
Baseball 1120 6/3.75 1/3.75 11.3 77.31 254 27.6 66.7 0.424
Bowls 1120 6/4.75 7/1.60 14.3 120.4 385 40.0 106 0.267
Boxing 1120 18/3.50 1/3.50 17.5 182.8 540 51.5 167 0.169
Cricket 1120 30/2.50 7/2.50 17.5 181.6 636 75.2 151 0.188
Darts 1120 30/3.00 7/3.00 21.0 261.5 913 108 217 0.130
Dice 1120 30/3.25 7/3.25 22.8 306.9 1070 127 254 0.111
Diving 1120 30/3.50 7/3.50 24.5 356.0 1240 143 295 0.0961
Golf 1120 54/3.00 7/3.00 27.0 431.2 1380 150 377 0.0750
Gymnastics1120 54/3.25 7/3.25 29.3 506.0 1620 176 442 0.0639
Hurdles 1120 54/3.50 7/3.50 31.5 586.9 1880 197 513 0.0552


AACSR/AC Aluminum Alloy Conductor Aluminum Clad Steel Reinforced IEC 61089


AACSR/AC Aluminum Alloy Conductor Aluminum Clad Steel Reinforced IEC 61089

AACSR/AC Aluminum Alloy Conductor Aluminum Clad Steel Reinforced IEC 61089

AACSR/AC Aluminum Alloy Conductor Aluminum Clad Steel Reinforced IEC 61089

FAQ

1. What is AACSR/AC conductor?
AACSR/AC (Aluminum Alloy Conductor Aluminum Clad Steel Reinforced) is an overhead conductor made of aluminum alloy strands with an aluminum-clad steel core, designed for high strength and corrosion resistance in power transmission.

2. What are the main advantages of AACSR/AC conductor?
AACSR/AC offers high tensile strength, excellent corrosion resistance, good conductivity, and improved sag performance, making it suitable for long-span and harsh environment applications.

3.How does AACSR/AC differ from ACSR conductor?
Compared to ACSR, AACSR/AC uses aluminum alloy instead of pure aluminum and aluminum-clad steel instead of galvanized steel, providing better corrosion resistance and higher strength, especially in aggressive environments.

4. What standards does AACSR/AC comply with?
AACSR/AC conductor is typically manufactured according to ASTM B711, ASTM B502, and IEC 61089, depending on project requirements.
