Specifications
Certification :
ISO9001, CCC, RoHS,IP68
Price :
Negotiable
Brand Name :
YESWITCH
Model Number :
PF Series
Place of Origin :
China
Payment Terms :
T/T
Model NO. :
PF Series
Wiring :
Single Live Line
Principle :
Capacitive
Application :
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type :
Composite
Number of Switch :
Single Control Switch
Structure :
Power Built-in Type
Usage :
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind :
Single-pole on-off Switch
Contact Type :
Type a Contact
Detection Method :
Reflection Type
Brand :
Yeswitch
Rating :
400mA 32VAC ;200 Ma 50VDC ;125 Ma 125VAC
Initial Contact Resistance :
50m Ohm Max.
Insulation Resistance :
1g Ohm Min.at 500VDC
Dielectric Strength :
1,500 VAC RMS. (Initial Value
Electrical Life at Full Load :
500,000 Cycles.
Operating Temperature :
-30 to 85 Degrees.
Total Travel :
1.5 mm(.059)
Operating Force :
3n~6n
Contact Bounce :
10 Ms.
Mechanical Life :
1,000,000 Cycles.
Torque :
0.5 Nm Max.
Ingress Protection :
IP68 (in House Test)
Transport Package :
Carton
Specification :
12mm
Trademark :
Yeswitch
Origin :
China
HS Code :
853650000
Supply Ability :
500, 000/Month
Package Size :
9.00cm * 8.00cm * 5.00cm
Package Gross Weight :
0.010kg
Customization :
Available
Protection :
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation
Feature :
Flat
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Description

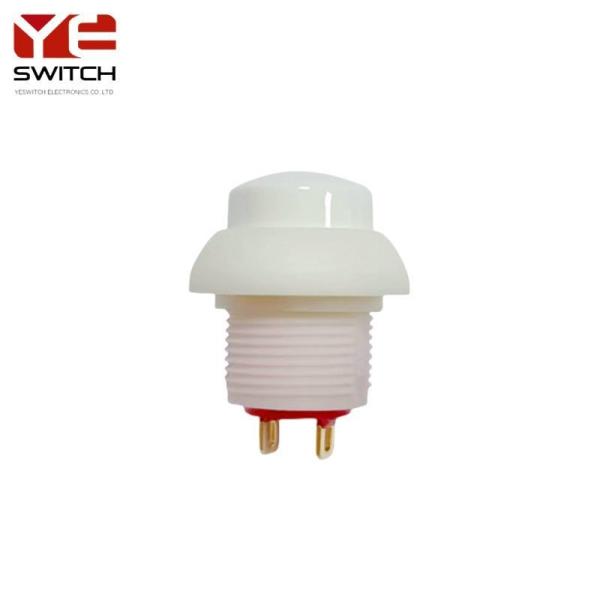

12mm Sub-Miniature Waterproof Momentary Push Button Switch

Product Description

IP68 Waterproof performance:
The waterproof momentary push button switch uses special sealing materials and structural design to ensure that moisture can't penetrate into the switch, thereby maintaining the stability of its electrical and mechanical properties.

Momentary function:
The momentary push button switch automatically returns to its initial position after being pressed. This design helps ensure safe operation and stable operation of the device.
In an emergency, the sealed push button switch can also be used to reset or restart the device.

Multiple button designs:
High-head buttons: Usually used in occasions that require more obvious tactile feedback or easy operation.
Flat-head buttons: More low-key, suitable for occasions that need to reduce false touches or keep a neat appearance.
Round buttons: Provide a comfortable grip and operating experience, suitable for occasions that require frequent operation.

Multiple color options:
The waterproof momentary push button switches provide buttons in a variety of colors, such as red, green, yellow, blue, etc., which can be selected according to different application scenarios and aesthetic needs.
The diversity of colors also helps to quickly identify and operate the switch in complex environments.

Application scenarios
Outdoor control handles:
Waterproof momentary push button switches are widely used in outdoor control handles, such as those for garden tools, electric scooters, electric bicycles, etc.
These devices are usually used outdoors, in rainy days or in humid environments, so waterproof performance is essential.
The momentary function ensures that the device can quickly return to a safe state under abnormal conditions.

Other application scenarios:
In addition to outdoor control handles, waterproof momentary push button switches are also widely used in industrial control, automation equipment, marine electronics, automotive electronics and other fields.

Specification:
MAX.CURRENT/VOLTAGE RATING WITH RESISTIVE LOAD: 400mA 32VAC ;200 mA 50VDC ;125 mA 125VAC
INITIAL CONTACT RESISTANCE : 50m ohm max.
INSULATION RESISTANCE: 1G ohm min.at 500VDC
DIELECTRIC STRENGTH : 1,500 VAC rms. (initial value)
ELECTRICAL LIFE AT FULL LOAD : 500,000 cycles.
OPERATING TEMPERATURE : -30 to 85 Degrees.
TOTAL TRAVEL : 1.5 mm(.059)
OPERATING FORCE : 3N~6N
CONTACT BOUNCE : 10 ms.
MECHANICAL LIFE : 1,000,000 cycles.
TORQUE : 0.5 Nm max.
INGRESS PROTECTION: IP68 (In house test)
Material:
CAP: Polyamide 6/6.
PLUNGER: PFS6:PC
PFS7: Polyamide 6/6
RUBBER: Silicone.
BUSHING: Polyamide 6/6
CASE: Diallyl phthalate (DAP)(UL94v-0).
TERMINAL/CONTACTS: Brass with gold over silver plated.
Photo:

12mm Sub Miniature Waterproof Push Button Switch Electrical Switch 500VDC 12mm Sub Miniature Waterproof Push Button Switch Electrical Switch 500VDC12mm Sub Miniature Waterproof Push Button Switch Electrical Switch 500VDC12mm Sub Miniature Waterproof Push Button Switch Electrical Switch 500VDC12mm Sub Miniature Waterproof Push Button Switch Electrical Switch 500VDC12mm Sub Miniature Waterproof Push Button Switch Electrical Switch 500VDC
12mm Sub Miniature Waterproof Push Button Switch Electrical Switch 500VDC12mm Sub Miniature Waterproof Push Button Switch Electrical Switch 500VDC12mm Sub Miniature Waterproof Push Button Switch Electrical Switch 500VDC12mm Sub Miniature Waterproof Push Button Switch Electrical Switch 500VDC
