Automotive Push Waterproof Push Button Switch 1mm - 4mm Normal Open
Automotive Push Waterproof Push Button Switch 1mm - 4mm Normal Open
Automotive Push Waterproof Push Button Switch 1mm - 4mm Normal Open
Automotive Push Waterproof Push Button Switch 1mm - 4mm Normal Open
Automotive Push Waterproof Push Button Switch 1mm - 4mm Normal Open
Automotive Push Waterproof Push Button Switch 1mm - 4mm Normal Open
Automotive Push Waterproof Push Button Switch 1mm - 4mm Normal Open
Automotive Push Waterproof Push Button Switch 1mm - 4mm Normal Open
Automotive Push Waterproof Push Button Switch 1mm - 4mm Normal Open
Automotive Push Waterproof Push Button Switch 1mm - 4mm Normal Open
Automotive Push Waterproof Push Button Switch 1mm - 4mm Normal Open
Automotive Push Waterproof Push Button Switch 1mm - 4mm Normal Open
Specifications
Certification :
ISO9001, CE, CCC, RoHS
Price :
Negotiable
Brand Name :
YESWITCH
Model Number :
PA Series
Payment Terms :
T/T
Model NO. :
PA Series
Principle :
Capacitive
Application :
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type :
Normal Open
Number of Switch :
Single Control Switch
Structure :
Power Built-in Type
Usage :
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind :
Single-pole on-off Switch
Contact Type :
Solder Terminal
Detection Method :
Retro-reflective Mode
Brand :
Yeswitch
Max. Current/Voltage Rating :
400mA 32VAC,100mA 50VDC,125mA 125VAC
Initlal Gontact Resistance :
50mΩ Max
Insulation Resistance :
1gΩ Min. at 500VDC
Delectric Strength :
1.000 VAC RMS
Electrical Life at Full Load :
500.000 Cycles
Panel Thickness :
1.5mm(.059) Min-4mm(.157)Max
Total Travel :
1.5mm(.059)
Operating Force :
2n~5n
Gontact Bounce :
10 Ms
Mechanical Life :
1,000,000 Cycles
Toroue :
0.5nm Max. Applied to Nut
Soldering :
350 Degree Max. for 5 Seconds
Transport Package :
Carton
Specification :
12mm
Trademark :
YESWITCH
Origin :
China
HS Code :
8536500000
Supply Ability :
50, 000/Month
Customization :
Available
Protection :
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation
Feature :
Flat
Description

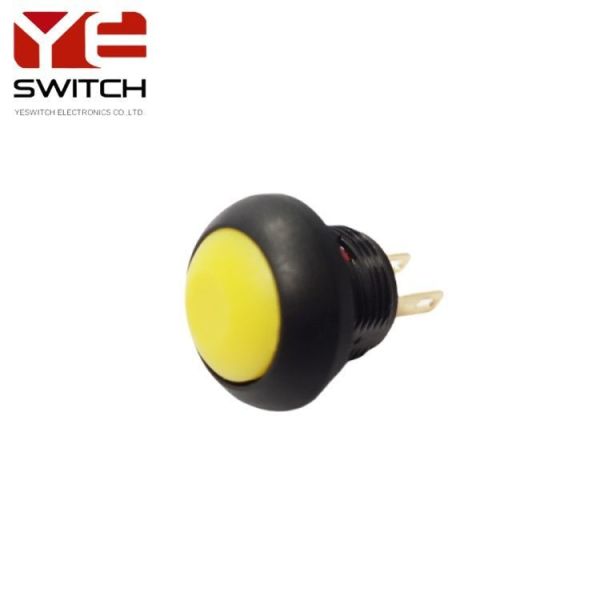

12mm IP67 Automotive Push Button Switch With Yellow Cap
Description:
The 12mm waterproof push button switch is mounted with a threaded panel and can be quickly and easily fixed to a variety of devices.The push button switches sealing grade reaches IP67 standard,excellent water and dust resistance,and automotive switches can operate stably in harsh environments.

Moreover,the 12mm automotive push button switches have a very long life,reach 1,000,000 cycles.The push button switch has been rigorously tested and verified,and can withstand prolonged use and frequent operation.

The momentary push button switch with yellow cap.Of course,you can also choose other colors, such as white, black, red, orange, green, blue.The caps come in a wide variety of colors to meet your individual needs.

In addition,the 12mm push button switch types offer options with and without LED.The LED colors including single color white,red,yellow,green,blue and double color red green and red blue for you to choose,make the switch more cool!

Whether in the field of home appliances,industrial equipment,automotive electronics,ship equipment or medical equipment can be applied.
Specification:
Max. Current/voltage rating with resistive load: 400mA 32VAC,100mA 50VDC,125mA 125VAC
INITLAL GONTACT RESISTANCE: 50mΩ max
INSULATION RESISTANCE: 1GΩ min. at 500VDC
DELECTRIC STRENGTH: 1.000 VAC rms
ELECTRICAL LIFE AT FULL LOAD: 500.000 cycles
PANEL THICKNESS: 1.5mm(.059) min-4mm(.157)max
TOTAL TRAVEL: 1.5mm(.059)
OPERATING FORCE: 2N~5N
GONTACT BOUNCE: 10 ms
MECHANICAL LIFE: 1,000,000 cycles
TOROUE: 0.5Nm max. applied to nut
SOLDERING: 350 degree max. for 5 seconds
Material:
CASE: Diallyl phthalate(DAP)UL94v-0)
CAP: Polyamide 6/6
BUSHING: Polyamide 6/6
TERMINALICONTACTS: Brass, Gold over silver plated.
RoHS & Lead Free
