IP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 Cycles
IP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 Cycles
IP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 Cycles
IP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 Cycles
IP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 Cycles
IP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 Cycles
IP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 Cycles
IP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 Cycles
IP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 Cycles
IP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 Cycles
IP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 Cycles
IP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 Cycles
Specifications
Certification :
ISO9001, CE, CCC, UL
Price :
Negotiable
Brand Name :
YESWITCH
Model Number :
PF Series
Place of Origin :
China
Payment Terms :
T/T
Model NO. :
PF Series
Wiring :
Single Live Line
Principle :
Capacitive
Application :
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type :
Normal Open
Number of Switch :
Single Control Switch
Structure :
Power Built-in Type
Usage :
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind :
Single-pole on-off Switch
Contact Type :
Solder,PC Pin,Quick Connect Terminal
Detection Method :
Retro-reflective Mode
Brand :
Yeswitch
Rating :
400mA 32VAC -200 Ma 50VDC-125 Ma 125VAC
Initial Contact Resistance :
50 MΩ Max.
Insulation Resistance :
1 GΩ Min.at 500VDC
Dielectric Strength :
1,500 VAC RMS.
Electrical Life at Full Load :
500,000 Cycles
Total Travel :
1.5 mm(.059)
Operating Force :
3n~6n.
Contact Bounce :
1 Ms Max.
Mechanical Life :
1.000.000 Cycles
Torque :
0.5 Nm Max. Applied to Nut.
Soldering :
350°c Max.for 5 Seconds.
Operating Temperature :
-30 to 85 Degrees
Cdegree of Proteciton :
IP68
Transport Package :
Carton
Specification :
12mm
Trademark :
YESWITCH
Origin :
China
HS Code :
8536500000
Supply Ability :
50, 000/Month
Package Size :
9.00cm * 8.00cm * 5.00cm
Package Gross Weight :
0.010kg
Customization :
Available
Protection :
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation
Feature :
High Cap
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Description

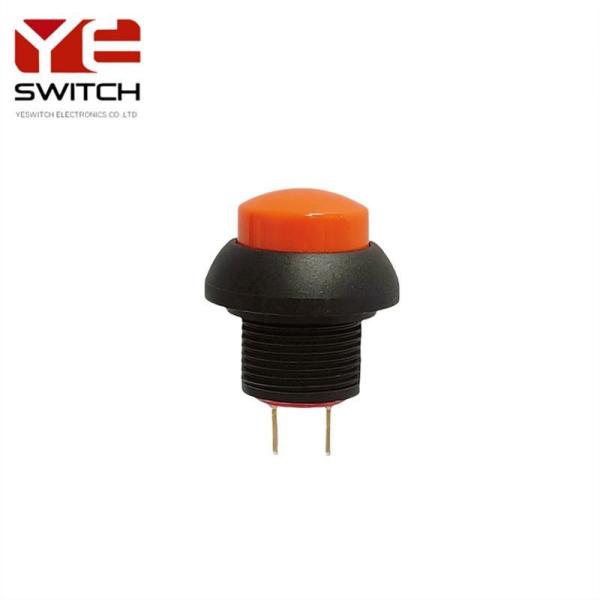

12mm IP68 High Push Orange Button Switches
Description:
The threaded bushing 12 mm momentary sealed push button switches OFF-(ON) Switch 7 Colors.The versatile waterproof push button switch offers a reliable and convenient solution for your electrical needs.Whether you're looking for a waterproof momentary push button switch or an OFF-(ON) switch,the product has got you covered.With a diameter of 12mm, the push button switches are compact yet powerful,making it suitable for a variety of application,such as electronic handle,cross-country transportation,operating rod,crane,agricultural equipment, computer equipment and so on.

The 12mm waterproof push button switch momentary function allows for quick and easy activation,perfect for situations where you only need temporary power.The waterproof feature ensures durability and protection against the elements,making it ideal for outdoor use or in environments where moisture is a concern.The automotive push button switch in 7 different colors(white,balck,red,orange,yellow,green,blue),giving you plenty of options to suit your aesthetic preferences or organizational needs.The vivid colors also make it easier to differentiate between various functions or circuits.Whether you need a momentary push button switch,an OFF-(ON) switch,or both,the product has the versatility to meet your requirements.

Its 12mm size,waterproof design,and multiple color options make it an excellent choice for DIY projects,electronics enthusiasts,or professionals in need of reliable electrical components.
Specification:
RATING: 400mA 32VAC
100 mA 50VDC
125 mA 125VAC
INITIAL CONTACT RESISTANCE: 50 mQ max.
INSULATION RESISTANCE: 1 GΩmin. at 500VDC.
DIELETRIC STRENGTH: 1,500 VAC rms.
ELECTRICAL LIFE AT FULL LOAD: 500,000 cycles.
PANELTHICKNESS: 1.5 mm(.059)
OPERATING TEMPERATURE: -30~85 degree
TOTAL TRAVEL: 1.5 mm(.059)
OPERATING FORCE: 3N~6N.
CONTACT BOUNCE: 1 ms max.
MECHANICAL LIFE: 1,000,000 cycles.
TORQUE: 0.5 Nm max. applied to nut.
SOLDERING: 350°C max. for 5 seconds.
CDEGREE OF PROTECITON: IP68
Material:
CAP: Polyamide 6/6.
PLUNGER: PC.
RUBBER: Silicone.
BUSHING: Polyamide 6/6.
CASE: Diallyl phthalate (DAP)(UL94v-0).
TERMINAL/CONTACTS: Gold over silver plated.
Detailed Photos
IP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 CyclesIP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 CyclesIP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 CyclesIP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 CyclesIP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 CyclesIP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 CyclesIP68 Waterproof Push Button Switch 12mm Momentary Electrical Switch 500000 Cycles
