12mm Waterproof Push Button Switch Normal Close Electrical Safety Switch 125VAC
12mm Waterproof Push Button Switch Normal Close Electrical Safety Switch 125VAC
12mm Waterproof Push Button Switch Normal Close Electrical Safety Switch 125VAC
12mm Waterproof Push Button Switch Normal Close Electrical Safety Switch 125VAC
12mm Waterproof Push Button Switch Normal Close Electrical Safety Switch 125VAC
12mm Waterproof Push Button Switch Normal Close Electrical Safety Switch 125VAC
12mm Waterproof Push Button Switch Normal Close Electrical Safety Switch 125VAC
12mm Waterproof Push Button Switch Normal Close Electrical Safety Switch 125VAC
12mm Waterproof Push Button Switch Normal Close Electrical Safety Switch 125VAC
12mm Waterproof Push Button Switch Normal Close Electrical Safety Switch 125VAC
12mm Waterproof Push Button Switch Normal Close Electrical Safety Switch 125VAC
12mm Waterproof Push Button Switch Normal Close Electrical Safety Switch 125VAC
Specifications
Certification :
ISO9001, CE, CCC, UL
Price :
Negotiable
Brand Name :
YESWITCH
Model Number :
PF Series
Place of Origin :
China
Payment Terms :
T/T
Model NO. :
PF Series
Wiring :
Single Live Line
Principle :
Capacitive
Application :
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type :
Normal Close
Number of Switch :
Single Control Switch
Structure :
Power Built-in Type
Usage :
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind :
Single-pole on-off Switch
Contact Type :
Solder Terminal
Detection Method :
Retro-reflective Mode
Brand :
Yeswitch
Rating :
400mA 32VAC;200 Ma 50VDC;125 Ma 125VAC
Initial Contact Resistance :
50 M Ohm Max.
Insulation Resistance :
1 G Ohm Min. at 500VDC.
Dielectric Strength :
1,500 VAC RMS.
Electrical Life at Full Load :
500,000 Cycles
Total Travel :
1.5 mm(.059)
Operating Force :
3n~6n.
Contact Bounce :
10 Ms
Mechanical Life :
1.000.000 Cycles
Torque :
0.5 Nm Max.Applied to Nut.
Soldering :
. Applied to Nut.
Operating Temperature :
-30 to 85 Degrees
Cdegree of Proteciton :
IP68
Transport Package :
Carton
Specification :
12mm
Trademark :
YESWITCH
Origin :
China
HS Code :
8536500000
Supply Ability :
50, 000/Month
Package Size :
9.00cm * 8.00cm * 5.00cm
Package Gross Weight :
0.100kg
Customization :
Available
Protection :
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation
Feature :
Round Cap
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Description

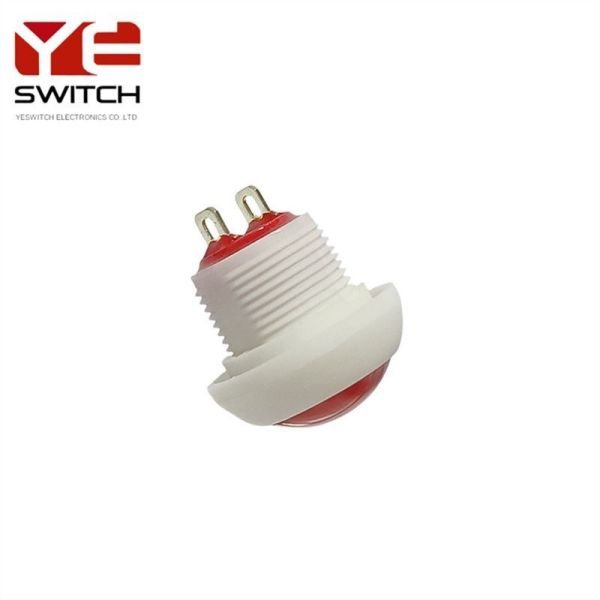

12mm Reset White Waterproof Push Button Switch
Description:
The 12mm PF Series reset push button switch is a versatile and robust component that combines functionality with durability.

The push button switch types measures 12mm in diameter,making it a compact and space-saving option.Available in three distinct shapes:round arc, flat, and high-head types,catering to different aesthetic and functional requirements.
Boasting an IP68 rating,this push button switches are highly resistant to dust ingress and can withstand immersion in water up to a specified depth and duration.This makes it ideal for use in harsh environments.
Offered in a variety of button colors,the momentary push button switch allows for easy identification and aesthetic customization to match the specific needs of the application.
As a reset button,it is designed to restore a system or device to its initial state when pressed.This is particularly useful in scenarios where a quick reset is necessary.

The high dust and water resistance,combined with its compact size and reliability,make the 12mm PF Series reset sealed push button switch suitable for use in various medical equipment,such as patient monitors,infusion pumps,and other life-support systems.
In the automotive industry,this sub-miniature push button switch can be found in motorcycles,cars,and other motor vehicles,where it may be used for resetting trip meters,diagnostic systems,or other electronic components.
Beyond medical and automotive uses,the push button switch's versatility extends to a wide range of industrial and consumer electronics,including marine equipment,outdoor electronics,and more.
Specification:
RATING: 400mA 32VAC
200 mA 50VDC
125 mA 125VAC
INITIAL CONTACT RESISTANCE: 50 m ohm max.
INSULATION RESISTANCE: 1 G ohm min. at 500VDC.
DIELETRIC STRENGTH: 1,500 VAC rms.
ELECTRICAL LIFE AT FULL LOAD: 500,000 cycles.
PANELTHICKNESS: 1.5 mm(.059)
OPERATING TEMPERATURE: -30~85 degree
TOTAL TRAVEL: 1.5 mm(.059)
OPERATING FORCE: 3N~6N.
CONTACT BOUNCE: 10ms
MECHANICAL LIFE: 1,000,000 cycles.
TORQUE: 0.5 Nm max. applied to nut.
SOLDERING: 350°C max. for 5 seconds.
CDEGREE OF PROTECITON: IP68
Material:
CAP: Polyamide 6/6.
PLUNGER: Polyamide 6/6.
RUBBER: Silicone.
BUSHING: Polyamide 6/6.
CASE: Diallyl phthalate (DAP)(UL94v-0).
TERMINAL/CONTACTS: Gold over silver plated.
