Small Volume Temperature And Humidity Testing Chamber Programmable 100L
Small Volume Temperature And Humidity Testing Chamber Programmable 100L
Small Volume Temperature And Humidity Testing Chamber Programmable 100L
Small Volume Temperature And Humidity Testing Chamber Programmable 100L
Small Volume Temperature And Humidity Testing Chamber Programmable 100L
Small Volume Temperature And Humidity Testing Chamber Programmable 100L
Small Volume Temperature And Humidity Testing Chamber Programmable 100L
Small Volume Temperature And Humidity Testing Chamber Programmable 100L
Small Volume Temperature And Humidity Testing Chamber Programmable 100L
Small Volume Temperature And Humidity Testing Chamber Programmable 100L
Specifications
Brand Name :
HBYIQI
Model Number :
HB-A01-S-RH-100L（A\B\C)
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1SET
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
15 days
Packaging Details :
International Standard Package
Volume :
100L
Heating Rate :
≥3℃/min or Customization
Cooling Rate :
0.8-1.5℃/min or Customization
A Type Range :
-20℃~ 150℃ or Customization
B Type Range :
-40℃~ 150℃ or Customization
C Type Range :
-65℃~ 150℃ or Customization
Humidity Range :
(20 - 98)%RH
Humidity Uniformity :
+3.0%RH (>75%RH) +5.0%RH (<75%RH)
Description

Programmable Constant Temperature and Humidity Test Chamber

Brand: HBYIQI

Equipment Name: 100L Programmable Constant Temperature and Humidity Test Machine

Relevant standards or equivalent requirements:

Complies with the following tests in national standards such as GB, GJB, ISO, IEC, ANSI, ASME, ASTM, JIS, BS, DIN, NF, UNI, TNAI, AS, BDSI, CAS, CA, COSQC, C.S., CSA, CSK, CSN, DGN, DGNT, DS, ELOT, E.S., ESI, GS, ICONTEC, INAPI, INEN, IOS, IRAM, IR, ISIRI, ITINTEC, IS, JS.S, JUS:

  • High-temperature test
  • Low-temperature test
  • High and low temperature cycle test
  • Cold test

  • Dry heat test

  • Humid heat test

  • Alternating humid heat test

Application:

The programmable constant temperature and humidity test chamber (also known as high - low temperature and humidity alternating test chamber, high - low temperature and humidity alternating temperature control device, etc.) is mainly used to test the tolerance of products, materials, etc. after continuous exposure to high - temperature, low - temperature, and humid - heat environments and cyclic testing. It simulates in advance the chemical changes and physical damage caused by different climate environments. This equipment is suitable for products such as batteries, electrical and electronic products, automotive electromechanical components, aerospace components, information and communication products, national defense technology products, and energy materials.

Technical Parameter

Model HB-A01-S-RH-100L(ABC)
Volume 100L
Inner Box Dimensions:cm

100L: W50*D40*H50
Outer Box Dimensions:cm

100L:W70*D115*H160
Temperature Range Type A: - 20°C ~ 150°C / Type B: - 40°C ~ 150°C / Type C: - 65°C ~ 150°C
Temperature Resolution 0.01°C
Temperature Fluctuation ±0.5°C
Temperature Uniformity ±2°C
Heating Rate (≥3°C/min, non - linear control, no load) (Fast temperature change rate can be customized)
Cooling Rate (0.8 - 1.5°C/min, non - linear control, no load) (Fast temperature change rate can be customized)
Humidity Range (20 - 98)%RH
Humidity Resolution 0.01%RH
Humidity Fluctuation 1%RH
Humidity Uniformity +3.0%RH (>75%RH) +5.0%RH (<75%RH)

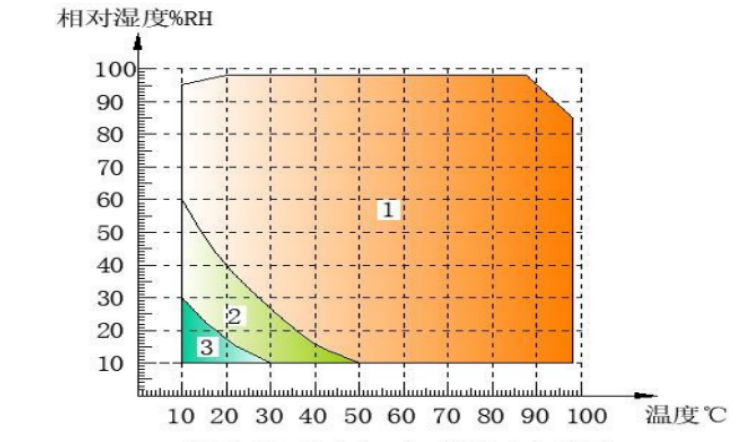

Temperature and Humidity Control Range Diagram

Small Volume Temperature And Humidity Testing Chamber Programmable 100L
This diagram shows the humidity range under standard atmospheric pressure.
Note 1: Area "1" is the standard range of the test chamber, and no additional components are required; Areas "2" and "3" can be achieved by selecting one of the "Drying & Dehumidification Function Components", and the specific component type shall be configured according to the on - site conditions of the buyer.
Note 2: All temperature and humidity areas in the above diagram are applicable when the test piece is in an unpowered state or when it is powered on but its heat output ≤ 400W!
Note 3: Temperature and humidity calibration points: ①20°C/40%RH; ②40°C/93%RH; ③80°C/98%RH)
Control System PLC balanced temperature and humidity programmable control system
Language Supports Chinese and English
Refrigeration System Adopts well - known compressors and well - known refrigeration system accessories
Heating System Adopts nickel - chromium alloy electric heating wires
Protection Devices Leakage protection, short - circuit protection, over - temperature protection, phase - loss protection, compressor overload and over - heat protection, and fault alarm system.
Shelves 2 shelves are standard (more can be selected)
Wiring Hole Ø50mm/1 hole
Voltage (V) 220V
Power (KW) 4 - 6KW
Weight (kg) To be confirmed before delivery

Detail Screen Display

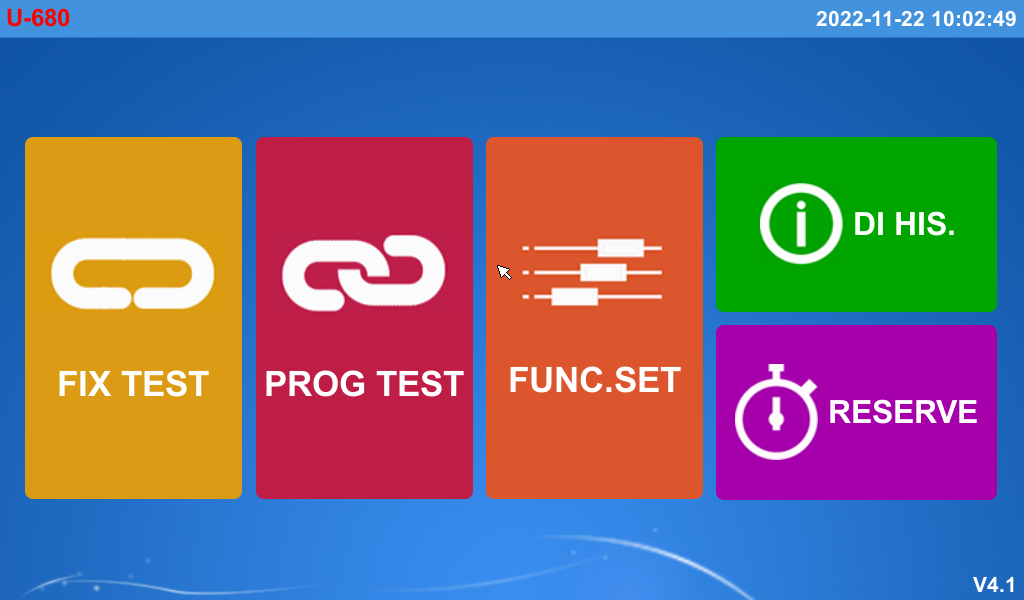

  • Control System Interface
  • Small Volume Temperature And Humidity Testing Chamber Programmable 100L

​

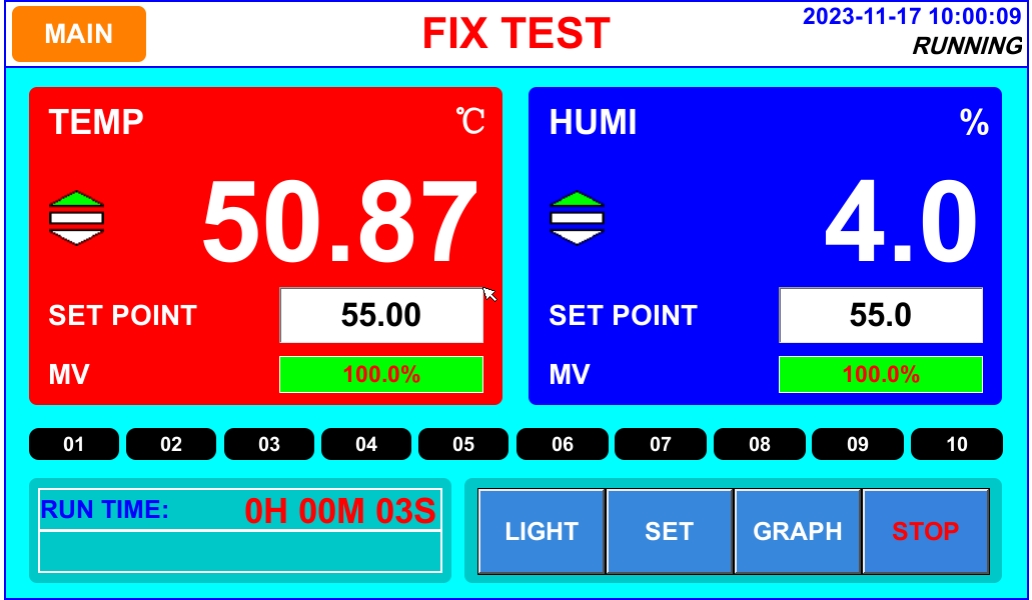

  • Fixed Value Experiment
  • Small Volume Temperature And Humidity Testing Chamber Programmable 100L​

​

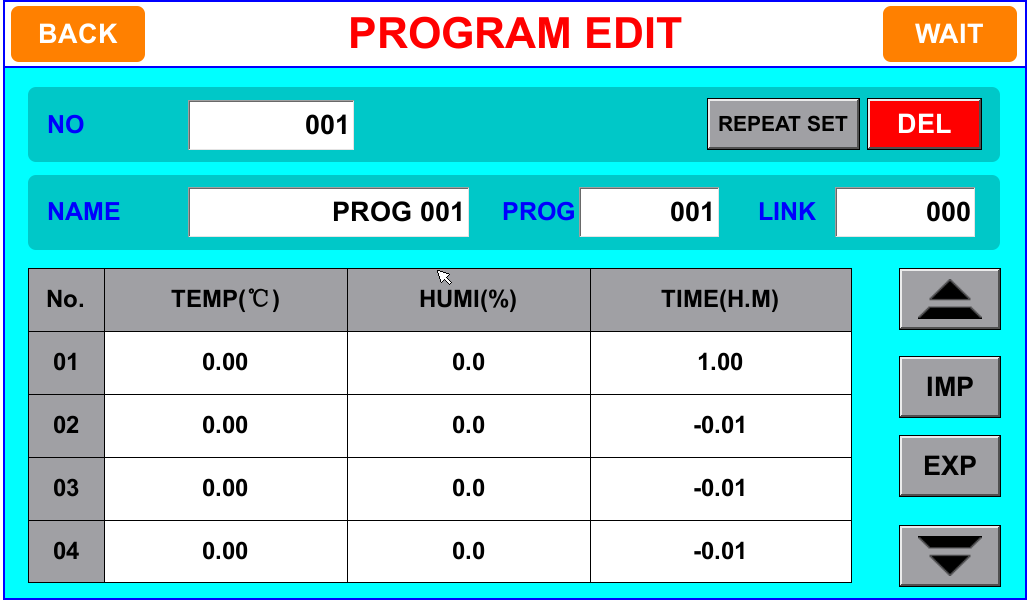

  • Program Experiment
  • Small Volume Temperature And Humidity Testing Chamber Programmable 100L
