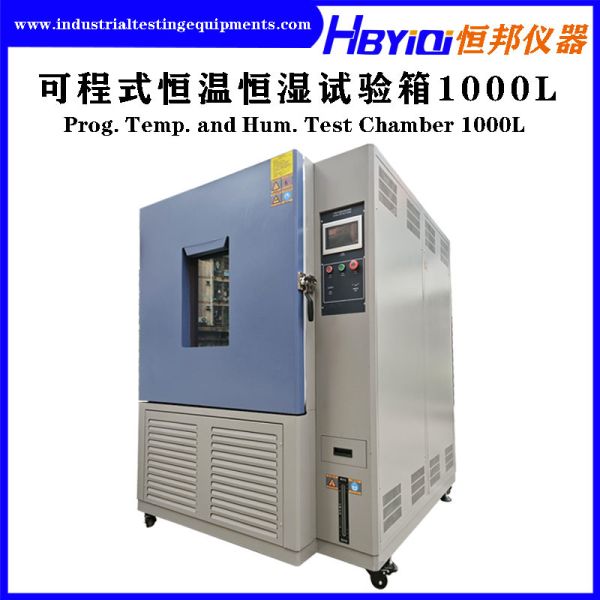

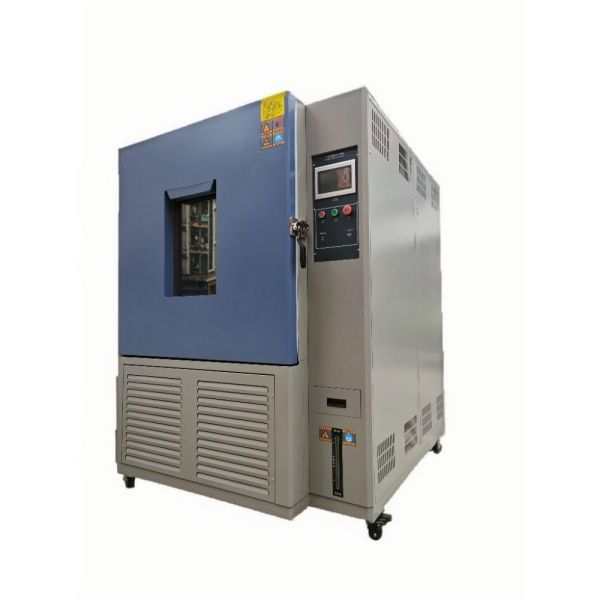

Precision Constant Temperature And Humidity Test Chamber 1000L 380V Computerized
Precision Constant Temperature And Humidity Test Chamber 1000L 380V Computerized
Precision Constant Temperature And Humidity Test Chamber 1000L 380V Computerized
Precision Constant Temperature And Humidity Test Chamber 1000L 380V Computerized
Precision Constant Temperature And Humidity Test Chamber 1000L 380V Computerized
Precision Constant Temperature And Humidity Test Chamber 1000L 380V Computerized
Precision Constant Temperature And Humidity Test Chamber 1000L 380V Computerized
Precision Constant Temperature And Humidity Test Chamber 1000L 380V Computerized
Specifications
Brand Name :
HBYIQI
Model Number :
HB-A02-RH-1000L（A\B\C)
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1SET
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
15 days
Packaging Details :
International Standard Package
Volume :
1000L
Heating Rate :
≥3℃/min or Customization
Cooling Rate :
0.8-1.5℃/min or Customization
A Type Range :
-20℃~ 150℃ or Customization
B Type Range :
-40℃~ 150℃ or Customization
C Type Range :
-65℃~ 150℃ or Customization
Humidity Range :
(20 - 98)%RH
Humidity Uniformity :
+3.0%RH (>75%RH) +5.0%RH (<75%RH)
Outer Size :
W150*D175*H210
Inner Size :
W100*D100*H100
Description

Constant Temp& Humidity Test Chamber Programmable PLC 1000L High/Low Temp Humidity-65℃~ 150℃

Brand: HBYIQI

Relevant standards or equivalent requirements:

Complies with the following tests in national standards such as GB, GJB, ISO, IEC, ANSI, ASME, ASTM, JIS, BS, DIN, NF, UNI, TNAI, AS, BDSI, CAS, CA, COSQC, C.S., CSA, CSK, CSN, DGN, DGNT, DS, ELOT, E.S., ESI, GS, ICONTEC, INAPI, INEN, IOS, IRAM, IR, ISIRI, ITINTEC, IS, JS.S, JUS:

  • High-temperature test
  • Low-temperature test
  • High and low temperature cycle test
  • Cold test

  • Dry heat test

  • Humid heat test

  • Alternating humid heat test(Optional)

Application:

The programmable constant temperature and humidity test chamber is mainly used to test the extent to which products, materials, etc. can withstand continuous high-temperature, low-temperature and wet heat environments and undergo cyclic tests, and to simulate in advance the chemical changes and physical damage caused by different climate environments. This equipment is suitable for products such as batteries, electrical and electronic, automotive electromechanical, aerospace, information and communication, national defense science and technology, energy materials, etc.

Technical Parameter

Model HB-A02-RH-1000L(A/B/C)
Volume 1000L
Inner Box Dimensions:cm

W100*D100*H100
Outer Box Dimensions:cm

W150*D175*H210
Temperature Range Type A: - 20°C ~ 150°C / Type B: - 40°C ~ 150°C / Type C: - 65°C ~ 150°C
Temperature Resolution 0.01°C
Temperature Fluctuation ±0.5°C
Temperature Uniformity ±2°C
Heating Rate (≥3°C/min, non - linear control, no load) (Fast temperature change rate can be customized)
Cooling Rate (0.8 - 1.5°C/min, non - linear control, no load) (Fast temperature change rate can be customized)
Humidity Range (20 - 98)%RH
Humidity Resolution 0.01%RH
Humidity Fluctuation ±2%RH
Humidity Uniformity +3.0%RH (>75%RH) +5.0%RH (<75%RH)
Temperature and Humidity Control Range Diagram

Precision Constant Temperature And Humidity Test Chamber 1000L 380V Computerized
Control System PLC balanced temperature and humidity programmable control system
Language Supports Chinese and English
Refrigeration System Adopts well - known compressors and well - known refrigeration system accessories
Heating System Adopts nickel - chromium alloy electric heating wires
Protection Devices Leakage protection, short - circuit protection, over - temperature protection, phase - loss protection, compressor overload and over - heat protection, and fault alarm system.
Shelves 2 shelves are standard (more can be selected)
Wiring Hole Ø50mm/1 hole
Voltage (V) 380V
Power (KW) 12~16KW
Weight (kg) To be confirmed before delivery

Detail Screen Display

  • Control System Interface
  • Precision Constant Temperature And Humidity Test Chamber 1000L 380V Computerized

​

  • Fixed Value Experiment
  • Precision Constant Temperature And Humidity Test Chamber 1000L 380V Computerized

  • Program Experiment
  • Precision Constant Temperature And Humidity Test Chamber 1000L 380V Computerized

​
