Programmable Alternating Constant Temperature Humidity Test Chamber 6000L
Programmable Alternating Constant Temperature Humidity Test Chamber 6000L
Programmable Alternating Constant Temperature Humidity Test Chamber 6000L
Programmable Alternating Constant Temperature Humidity Test Chamber 6000L
Programmable Alternating Constant Temperature Humidity Test Chamber 6000L
Programmable Alternating Constant Temperature Humidity Test Chamber 6000L
Programmable Alternating Constant Temperature Humidity Test Chamber 6000L
Programmable Alternating Constant Temperature Humidity Test Chamber 6000L
Programmable Alternating Constant Temperature Humidity Test Chamber 6000L
Programmable Alternating Constant Temperature Humidity Test Chamber 6000L
Programmable Alternating Constant Temperature Humidity Test Chamber 6000L
Programmable Alternating Constant Temperature Humidity Test Chamber 6000L
Specifications
Brand Name :
HBYIQI
Model Number :
HB-A01-RH-6M³（A\B\C\D)
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1SET
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
15 days
Packaging Details :
International Standard Package
Volume :
6000L
Power Supply :
380V
Heating Rate :
≤ 30min from 25°C to +85°C
Cooling Rate :
30min - 180min from 25°C to Rated low temperature
A Type Range :
0°C ~ 85°C
B Type Range :
-20°C ~ 85°C
C Type Range :
-40°C ~ 85°C
D Type Range :
-65°C ~ 85°C
Humidity Range :
(30 - 98)%RH/(20 - 75)°C
Humidity Uniformity :
+3.0%RH (>75%RH) +5.0%RH (<75%RH)
Description

Programmable Constant Temperature and Humidity Test Chamber

Brand: HBYIQI

Equipment Name: 6000L Programmable Alternating Constant Temperature and Humidity Test Machine

Relevant standards or equivalent requirements:

Complies with the following tests in national standards such as GB, GJB, ISO, IEC, ANSI, ASME, ASTM, JIS, BS, DIN, NF, UNI, TNAI, AS, BDSI, CAS, CA, COSQC, C.S., CSA, CSK, CSN, DGN, DGNT, DS, ELOT, E.S., ESI, GS, ICONTEC, INAPI, INEN, IOS, IRAM, IR, ISIRI, ITINTEC, IS, JS.S, JUS:

  • High-temperature test
  • Low-temperature test
  • High and low temperature cycle test
  • Cold test

  • Dry heat test

  • Humid heat test

  • Alternating humid heat test

Application:

The programmable constant temperature and humidity test chamber (also known as high - low temperature and humidity alternating test chamber, high - low temperature and humidity alternating temperature control device, etc.) is mainly used to test the tolerance of products, materials, etc. after continuous exposure to high - temperature, low - temperature, and humid - heat environments and cyclic testing. It simulates in advance the chemical changes and physical damage caused by different climate environments. This equipment is suitable for products such as batteries, electrical and electronic products, automotive electromechanical components, aerospace components, information and communication products, national defense technology products, and energy materials.

Technical Parameter

Model HB-A01-RH-6M³ (A/B/C/D)
Volume 6000L
Inner Box Dimensions (cm)

W180*D145*H210
Outer Box Dimensions (cm) Subject to model design
Temperature Range Type A: - 0°C ~ 85°C / Type B: - 20°C ~ 85°C / Type C: - 40°C ~ 85°C / Type D: - 65°C ~ 85°C
Temperature Resolution 0.01°C
Temperature Fluctuation ±0.5°C
Temperature Uniformity ±2°C
Heating Rate 25°C → +85°C ≤ 30min (non - linear control, no load) (Fast temperature change rate can be customized)
Cooling Rate 25°C → rated low temperature, 30min - 180min (non - linear control, no load) (Fast temperature change rate can be customized)
Humidity Range (30 - 98)%RH/(20 - 75)°C
Humidity Resolution 0.01%RH
Humidity Fluctuation 1%RH
Humidity Uniformity +3.0%RH (>75%RH)+5.0%RH (<75%RH)
Control System PLC balanced temperature and humidity programmable control system
Language Supports Chinese and English
Refrigeration System Adopts well - known brand compressors and well - known refrigeration system accessories
Heating System Adopts nickel - chromium alloy electric heating wires
Protection Devices Leakage protection, short - circuit protection, over - temperature protection, phase - loss protection, compressor overload and over - heat protection, and fault alarm system.
Test Rack Customizable
Wiring Hole Ø50mm/1 hole
Voltage (V) AC 380V
Power (KW) Subject to model design
Weight (kg) To be confirmed before delivery

Detail Screen Display

  • Control System Interface
  • Programmable Alternating Constant Temperature Humidity Test Chamber 6000L​
  • Fixed Value Experiment

  • Programmable Alternating Constant Temperature Humidity Test Chamber 6000L​

  • Program Experiment
  • Programmable Alternating Constant Temperature Humidity Test Chamber 6000L`
  • Data Record
  • Programmable Alternating Constant Temperature Humidity Test Chamber 6000L

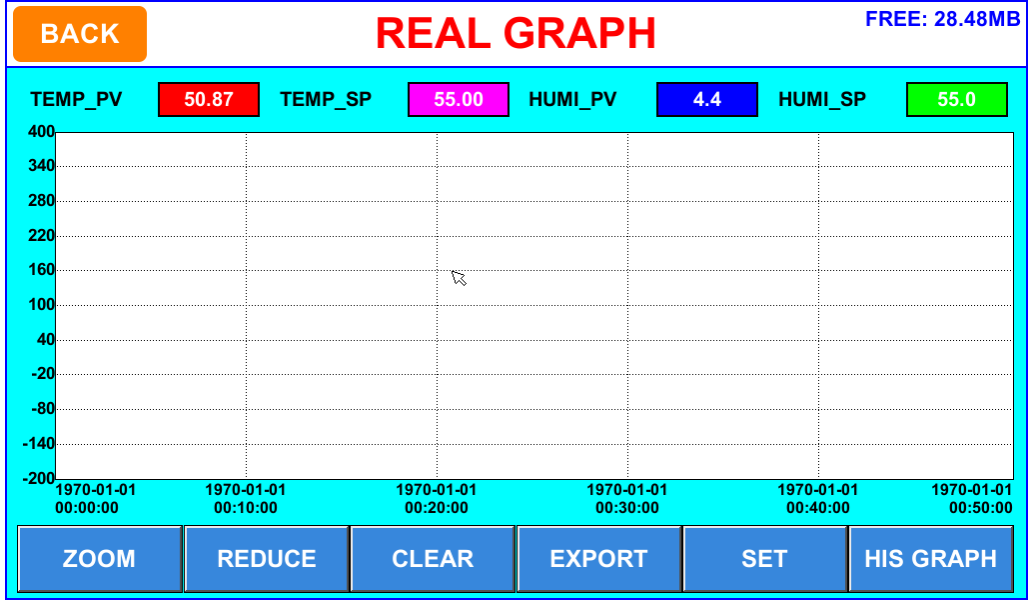

  • Curve
  • Programmable Alternating Constant Temperature Humidity Test Chamber 6000L
