Specifications
Brand Name :
Chitherm
Model Number :
MBF40-10N
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Customized
Supply Ability :
50 Sets/Year
Delivery Time :
Customized
Packaging Details :
Customized
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
330*200*660mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1150*1970*1460mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Description

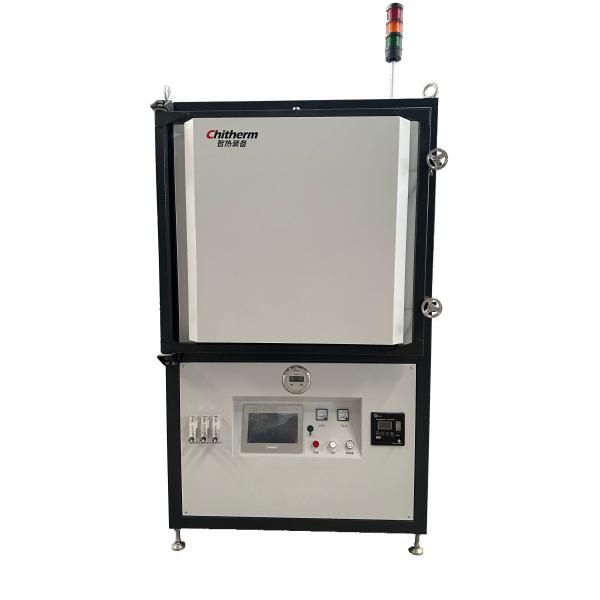

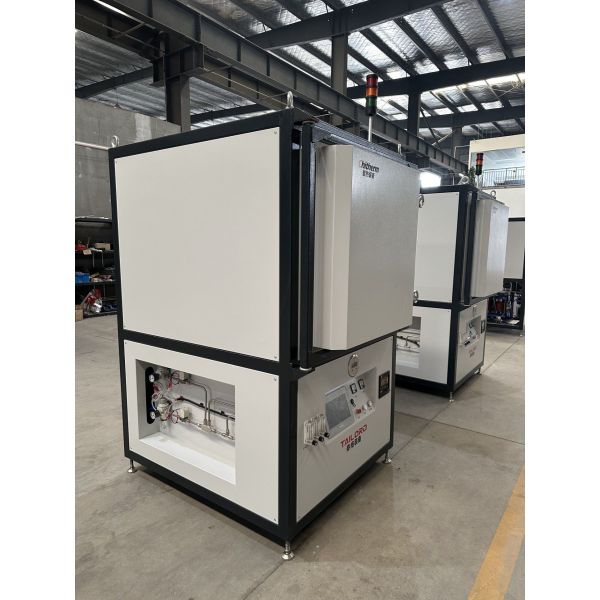

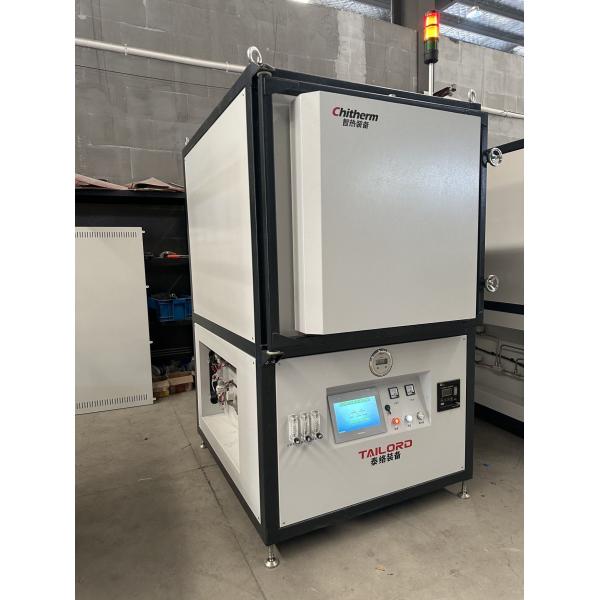

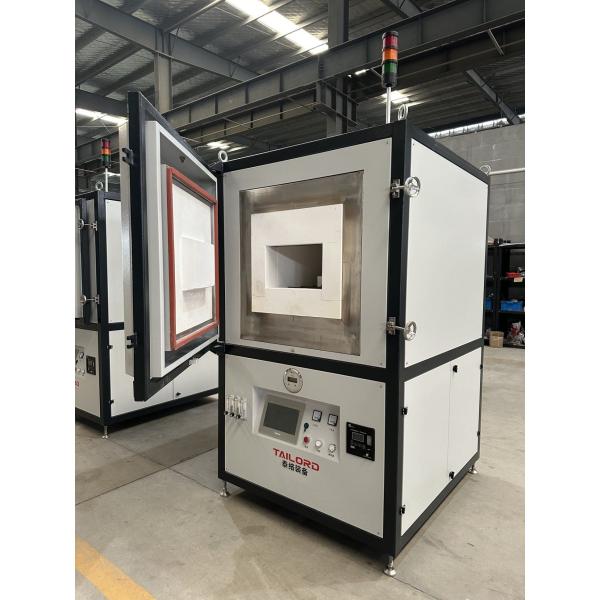

MBF40-11N Atmosphere Box Furnace - Nitrogen Electric Industrial Furnace (1150°C)
Key Specifications
Attribute Value
Range of Applications Industrial
Type Electric Holding Furnace
Usage Ceramic Sintering
Fuel Electric
Atmosphere Air
Effective Chamber Dimensions 330×200×660mm (W×H×D)
Specification 1150×1970×1460mm (W×H×D)
Certification ISO
Product Overview

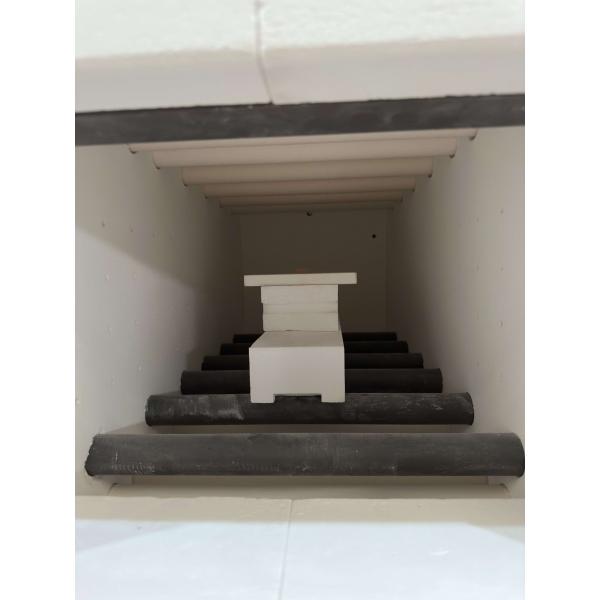

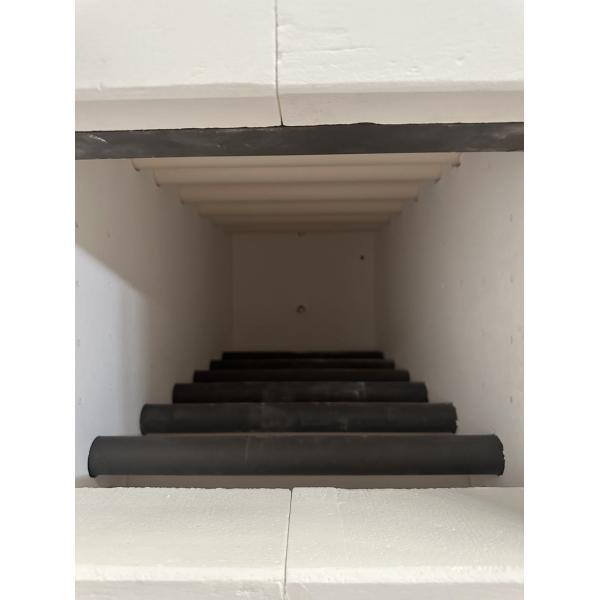

The MBF40-10N atmosphere box furnace features silicon carbide rods inserted in ceramic tubes as heating elements, offering excellent resistance to acid and alkali corrosion. With heating elements arranged both above and below, it ensures uniform temperature distribution throughout the furnace chamber.

1150º C The Mbf40-11n Type Atmosphere Box Furnace Nitrogen Electric Furnace Industrial Furnace 1150º C The Mbf40-11n Type Atmosphere Box Furnace Nitrogen Electric Furnace Industrial Furnace
Technical Specifications
Parameter Value
Rated Temperature 850-1000°C
Maximum Temperature 1000°C
Furnace Chamber Material Inner layer: alumina products, Outer layer: ceramic fiber inorganic standard board
Heating Elements Silicon carbide rods in ceramic tubes
Program Steps 20 steps
Temperature Control Two-point control (top and bottom) with middle measurement point
Surface Temperature Rise ≤40°C
Temperature Uniformity ±5°C at 850°C
Standard Delivery Contents
Item Description Quantity
Furnace Main unit 1 PC
Certificates Furnace and major components 1 Set
Technical Documents Specifications and component details 1 Set
Heating Elements Ceramic tube-encased silicon carbide rod 1 Set
Temperature Controller Azbil brand 1 Set
Touch Screen Control interface 1 Set
Spare Silicon Carbide Rod Replacement heating element 1 PC
Installation Requirements
  • Environment: Temperature 0-40ºC, humidity ≤80% RH, no corrosive gas or strong airflow
  • Process Air: 99.999% purity nitrogen, pressure 0.2-0.4Mpa, consumption 4-12m³/h
  • Ventilation: Non-contact access to pumping system (>15m³/h capacity)
  • Power: >35kVA, 3-phase 5-wire, 220/380V, 50Hz
  • Space: Minimum 2500×2000×3000mm (W×H×D), >5m² area
1150º C The Mbf40-11n Type Atmosphere Box Furnace Nitrogen Electric Furnace Industrial Furnace 1150º C The Mbf40-11n Type Atmosphere Box Furnace Nitrogen Electric Furnace Industrial Furnace 1150º C The Mbf40-11n Type Atmosphere Box Furnace Nitrogen Electric Furnace Industrial Furnace 1150º C The Mbf40-11n Type Atmosphere Box Furnace Nitrogen Electric Furnace Industrial Furnace
