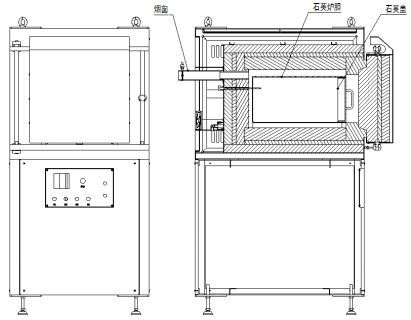

Equipment Name and Model: MBF60-10 Type Medium-Temperature Clean Box Furnace

Mainly used for high-temperature heat treatment processes of similar products such as electronic devices and electronic ceramics.

• 3.1 Rated Temperature: 900°C
• 3.2 Maximum Temperature: 1000°C
• 3.3 Inner Lining Material: Fused Quartz
• 3.4 Effective Dimensions: 350 ×300 × 550mm (W × H × D)
• 3.5 Heating Rate: ≤10°C/min
• 3.6 Heating Elements: FEC ceramic fiber heating plates, heating from all four sides
• 3.7 Temperature Stability: ±1°C, with PID parameter self-tuning function
• 3.8 Temperature Uniformity: ±5°C (tested with an empty furnace at constant temperature of 900°C)
• 3.9 Thermocouple Type: K-type
• 3.10 Number of Temperature Control Points: 1 point
• 3.11 Number of Temperature Control Segments: 9 segments
• 3.12 Exhaust Chimney: Equipped with an exhaust port at the rear, which can be manually adjusted
• 3.13 Inlet Design: Allows the introduction of dry, clean, oil-free compressed air or oxygen into the furnace chamber
• 3.14 Alarm Protection: Over-temperature, open circuit, etc., with audible and visual alarm protection
• 3.15 Maximum Heating Power: 16 kW
• 3.16 Typical Insulation Power for an Empty Furnace: ≤8 kW
• 3.17 Surface Temperature Rise: <35°C
• 3.18 Equipment Weight: Approximately 400 Kg
• 3.19 Equipment Exterior Color: Light Grey
• 3.20 Reference External Dimensions: 860 × 1750 × 1220mm (W × H × D)

• 1. Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance.
• 2. Process air conditions: clean, dry, oil-free compressed air, pressure 0.2 - 0.4Mpa, gas consumption 3 - 6m3 /h.
• 3. Ventilation system: non-contact access to the user pumping system, pumping capacity is greater than 10m3 /h
• 4. Ground requirements: level, no obvious vibration, bearing capacity > 250Kg/m2
• 5. Power conditions: capacity greater than 22kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green
• 6. Installation site: 1800mm×1850mm×3000mm (W×H×D), installation area greater than 3.5m2
