Specifications
Model Number :
MBF100-10
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Supply Ability :
50 Sets/Year
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Nitrogen
Effective Chamber Dimensions :
640*640*250mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1200*1200*1500mm
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Description
Industrial CVD Electric Holding High Temperature Box Furnace 1000°C
Product Specifications
Attribute Value
Range of Applications Industrial
Type Electric Holding Furnace
Usage Ceramic Sintering
Fuel Electric
Atmosphere Nitrogen
Effective Chamber Dimensions 640*640*250mm (W*H*D)
Transport Package Wooden Packaging
Specification 1200*1200*1500mm
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Certification ISO
Place Style Vertical
Technical Specifications
MBF100-10 Type Chemical Vapor Deposition Furnace
  • Rated Temperature: 750°C
  • Maximum Temperature: 1000°C
  • Heating Zone Dimensions: 770 × 770 × 300 mm (W × D × H)
  • Effective Dimensions: 640 × 640 × 250 mm (W × D × H)
  • Outer Chamber Material: SUS310S

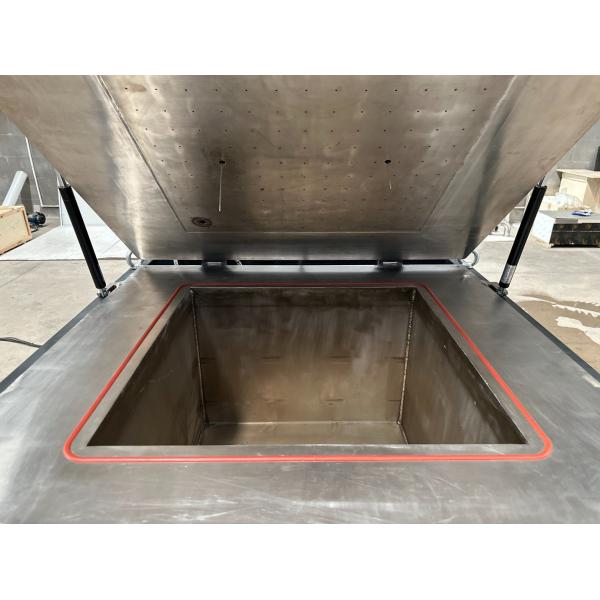

  • Inner Liner Material: Fused Quartz
  • Product Size: Φ120
  • Equipment Capacity: 16 substrates per batch
  • Maximum Heating Power: 16 kW
  • Heating Method: Bottom + Four Sides (Five-Sided Heating)

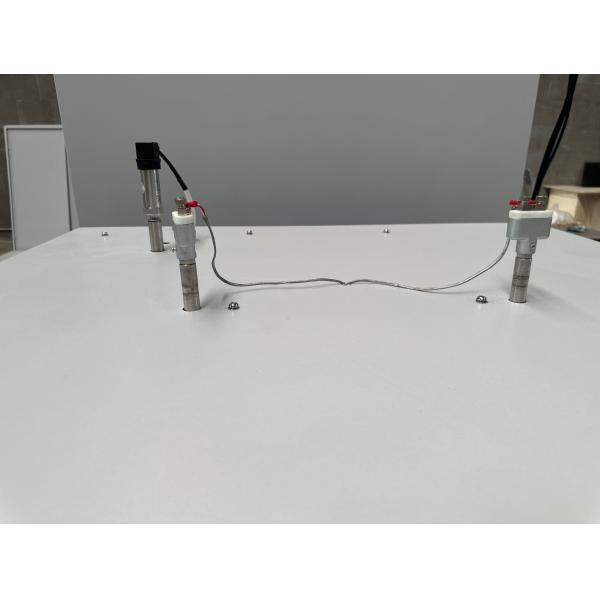

  • Temperature Control Points: Bottom + Side, 2 points in total

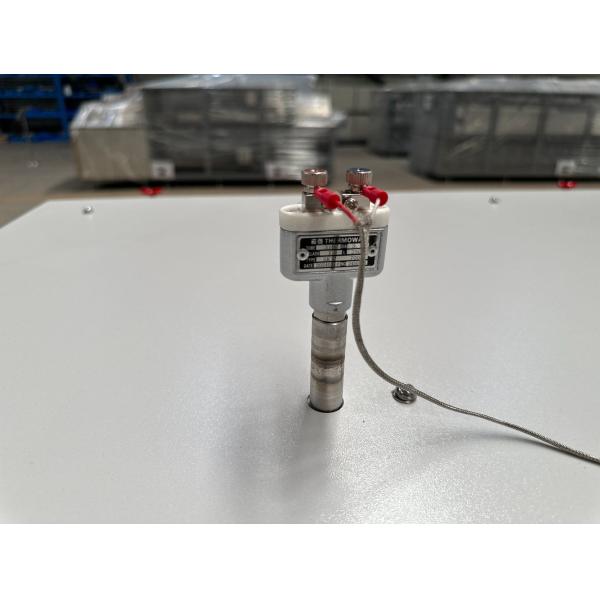

  • Thermocouple Type: K-Type
  • Heating Rate: ≤8°C/min
  • Heating Elements: FEC Ceramic Fiber Heaters

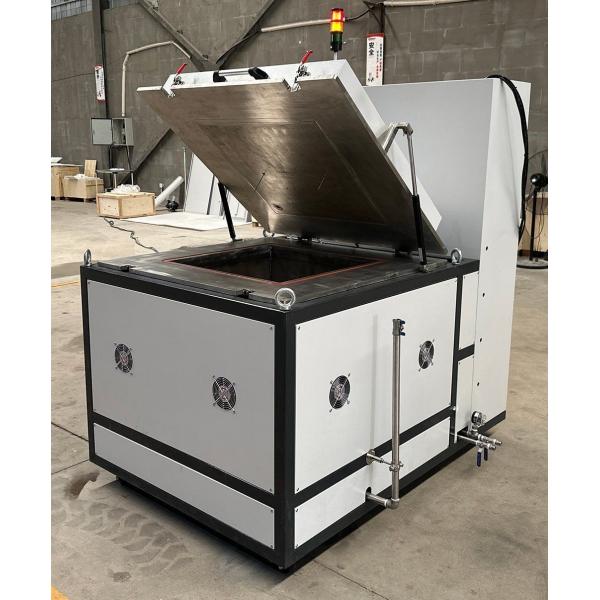

  • Furnace Door Opening Method: Top-Opening Design
  • Temperature Control Stability: ±1°C

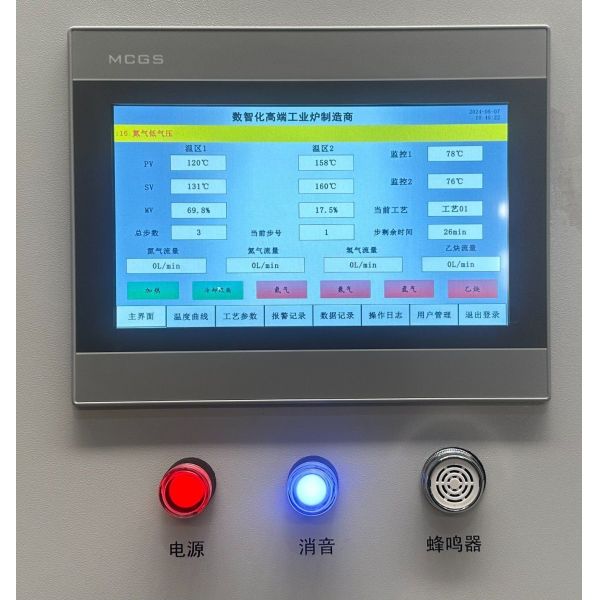

  • Temperature Control Instrument: Imported PID Controller with Auto-Tuning Function
  • Program Steps: 20 steps
  • Alarm and Protection: Over-temperature, thermocouple breakage, and other audible/visual alarms, with over-temperature power-off protection
  • Surface Temperature Rise: <35ºC
  • Weight: about 500kg
  • Furnace Dimensions: about 1200×1200×1500mm (W×H×D)
  • Appearance Color: light gray
Industrial CVD Nitrogen Atmosphere Furnace 1000 Ordm C
Delivery List
Item Note QTY
Basic Compositions
Furnace 1 unit
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components, etc 1 Set
Key Parts
Mass Flow Controller (MFC) Yamatake or HORIBA 4 Set

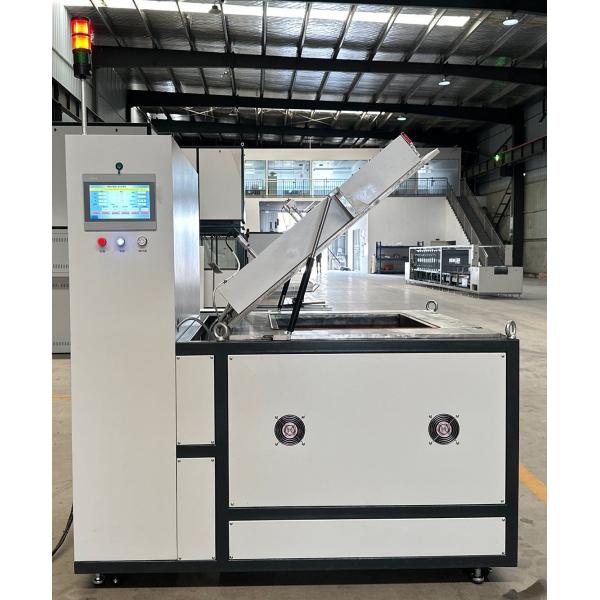

Touch screen 1 PC
Temperature Controller 1 Set
FEC Heater 1 Set
Quartz Liner 1 Set
Spares
SSR 1 PC
Facility Requirements
  • Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance
  • Ground requirements: level, no obvious vibration, bearing capacity > 500Kg/m²
  • Power conditions: capacity greater than 22kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz (according to local situation)
  • Installation site: 1500mm×1500mm×3000mm (W×H×D), installation area greater than 2.5m²
