Specifications
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Supply Ability :
50 Sets/Year
Model NO. :
SXL64-17NH
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Effective Chamber Dimensions :
400*400*400mm(W*H*D)
Atmosphere :
Nitrogen/Hydrogen
Transport Package :
Wooden Package
Specification :
1200*1950*1250mm (W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Description
1700°C SXL64-17NH High Temp. Atmosphere Box Furnace HTCC Melting Furnace for Customization Vertical Place Style
Product Specifications
Model NO. SXL64-17NH
Range of Applications Industrial
Type Electric Holding Furnace
Usage Ceramic Sintering
Fuel Electric
Effective Chamber Dimensions 400*400*400mm(W*H*D)
Atmosphere Nitrogen/Hydrogen
Transport Package Wooden Package
Specification 1200*1950*1250mm (W*H*D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Certification ISO
Place Style Vertical
Product Description
Applications

Primarily designed for high-temperature co-firing processes of alumina substrates and metal pastes (HTCC) in nitrogen-hydrogen atmospheres.

Technical Specifications
Rated Temperature: 1600°C
Maximum Temperature: 1700°C
Effective Dimensions: 400 × 400 × 400mm (W×H×D)
Heating Method: U-shaped molybdenum coil
Process Atmosphere: Nitrogen/hydrogen (optional humidification)
Temperature Control Stability: ±1°C with PID self-tuning
Temperature Uniformity: Better than ±3°C
Thermocouple: B Type
Exhaust System: One exhaust port with ignition device
Alarm System: Sound and light alarms for over-temperature and thermocouple failure
Max Heating Power: 25kW
Insulation Power: ≤15kW
Heating Rate: RT-1000°C ≤5°C/min, 1000-1600°C ≤2°C/min
Surface Temperature Rise: <35°C
Weight: ~960kg
Furnace Dimensions: ~1200×1950×1250mm (W×H×D)
Appearance Color: Light gray
1700 Ordm C High Temperature Box Furnace Htcc Melting For Customization Vertical
Delivery List
Item Note QTY
Basic Compositions
Furnace 1 PC
Certificates of Inspection Furnace and major components 1 Set
Technical Documents Specifications and component documents 1 Set
Key Parts
Molybdenum wire 1 Set
Dew point meter 1 PC
Temperature Controller 1 Set
Touch screen 1 Set
Vacuum system 1 Set

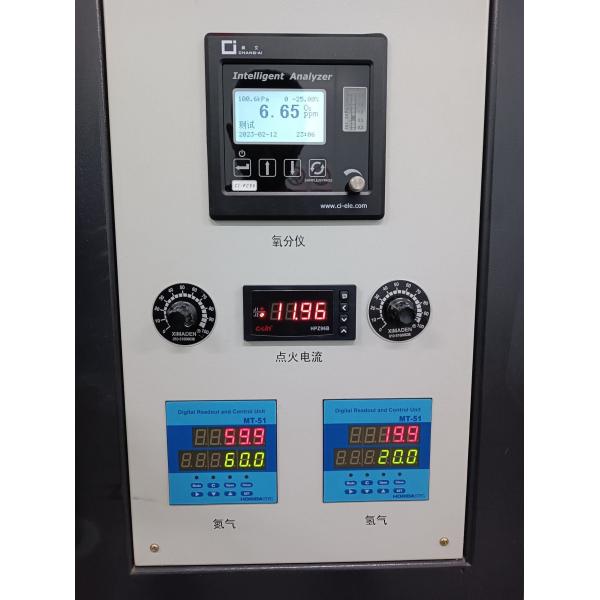

Oxygen Analyzer 1 Set
Hydrogen alarm instrument 1 Set
Water chiller 1 Set
Spares
Heating Elements Molybdenum Coil 4 PC
Facility Requirements
  • Environmental conditions: Temperature 0-40°C, humidity ≤80% RH, no corrosive gas, no strong airflow disturbance
  • Process air conditions: Nitrogen (99.999% purity, 0.2-0.4Mpa, 3-6m³/h) and Hydrogen (99.99% purity, ≥0.1Mpa, 3-6m³/h)
  • Power air source: Clean, dry, oil-free compressed air (0.4-0.8Mpa)
  • Water inlet: 0.1-0.3Mpa, clean, non-corrosive (2-5L/min flow)
  • Ventilation system: Non-contact access to user pumping system (>1.5m³/h capacity)
  • Ground requirements: Level surface, minimal vibration, >200Kg/m² bearing capacity
  • Power conditions: >34kVA capacity, 3-phase 5-wire (220/380V, 50Hz)
  • Installation site: Minimum 2500×3000×2500mm (W×H×D), >5m² area
