Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance in White or Black
Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance in White or Black
Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance in White or Black
Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance in White or Black
Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance in White or Black
Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance in White or Black
Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance in White or Black
Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance in White or Black
Specifications
quality :
premium grade
elongation at break :
200%-320%
hardness :
55+/-5shore D
density :
2.1-2.3g/cm3
color :
white, black
tensile strength :
20-30Mpa
break down voltage :
10KV/mm
temperature resist :
-180°C - +260°C
Payment Terms :
L/C,T/T,Western Union,Paypal
Brand Name :
3A Rubber
Model Number :
3A3001
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
100kgs
Price :
negotiation
Supply Ability :
1000000pieces per month
Delivery Time :
10 working days after received your payment
Packaging Details :
Packed in cartons
surface :
smooth/smooth
material :
virgin PTFE
Description
White / Black 100% Virgin PTFE Sheet 3A3001 Tensile Strength 20-30Mpa
Premium 100% Virgin PTFE Sheet available in white and black colors with tensile strength of 20-30Mpa. Manufactured using high-quality polytetrafluoroethylene material through moulding or skiving processes.
Product Overview
PTFE sheets are manufactured from high-quality polytetrafluoroethylene material using moulded or skived processes. This material represents the best polymer for chemical resistance among all known plastic materials. With excellent characteristics including corrosion resistance, weathering resistance, dielectric properties, and the lowest coefficient of friction among all known solid materials, PTFE sheets are widely used as corrosion-resistant linings, seals, gaskets, guides, electrical insulating parts, and bearing pads for bridges. The material does not age.
Technical Specifications
Material Virgin PTFE
Quality Premium Grade
Color White, Black
Surface Smooth/Smooth
Tensile Strength 20-30Mpa
Hardness 55+/-5 Shore D
Elongation at Break 200%-320%
Density 2.1-2.3g/cm³
Break Down Voltage 10KV/mm
Temperature Resistance -180°C to +260°C
Available Sizes
PTFE Moulded Sheet Sizes
  • 1.0-60mm x 150mm x 150mm
  • 1.0-60mm x 250mm x 250mm
  • 1.0-60mm x 300mm x 300mm
  • 1.0-60mm x 450mm x 450mm
  • 1.0-60mm x 600mm x 600mm
  • 2.0-60mm x 800mm x 800mm
  • 2.0-60mm x 1000mm x 1000mm
  • 2.0-60mm x 1200mm x 1200mm
  • 2.0-60mm x 1500mm x 1500mm
  • 2.0-60mm x 1000mm x 2000mm
PTFE Skived Sheet Sizes
  • 0.3-6.0mm x 300mm x 10, 15, 20m
  • 0.3-6.0mm x 600mm x 10, 15, 20m
  • 0.3-6.0mm x 1000mm x 10, 15, 20m
  • 0.3-6.0mm x 1200mm x 10, 15, 20m
  • 0.3-6.0mm x 1500mm x 10, 15, 20m
  • 0.3-6.0mm x 2000mm x 10, 15, 20m
Packing: Rolls and Pallets
When requesting a quote, please confirm the material, size, and quantity requirements.

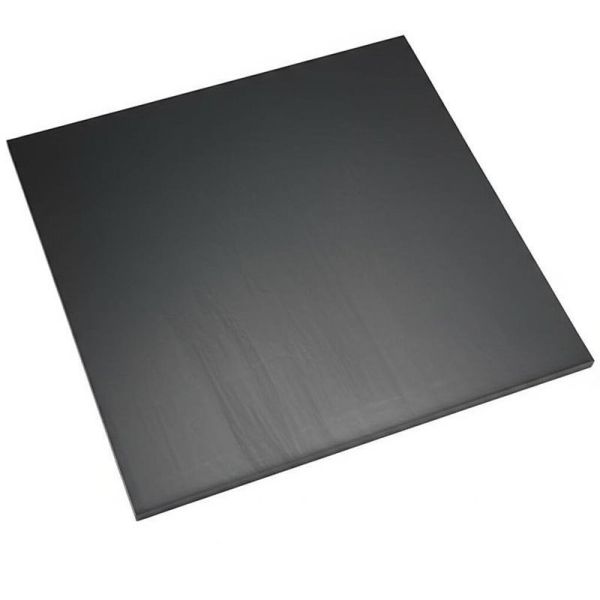

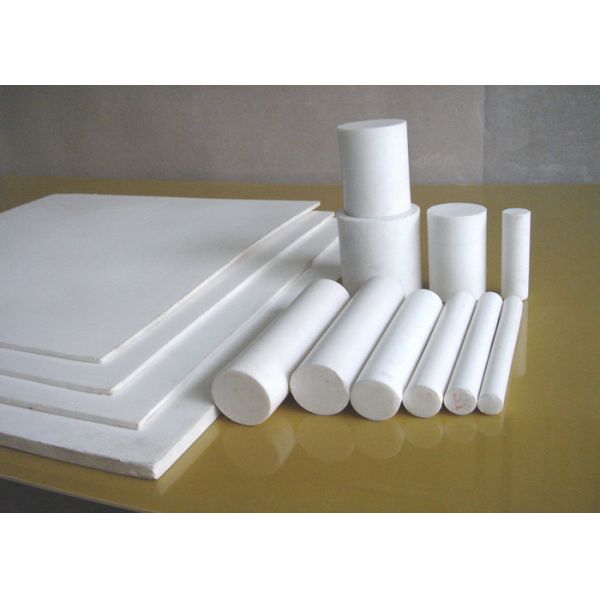

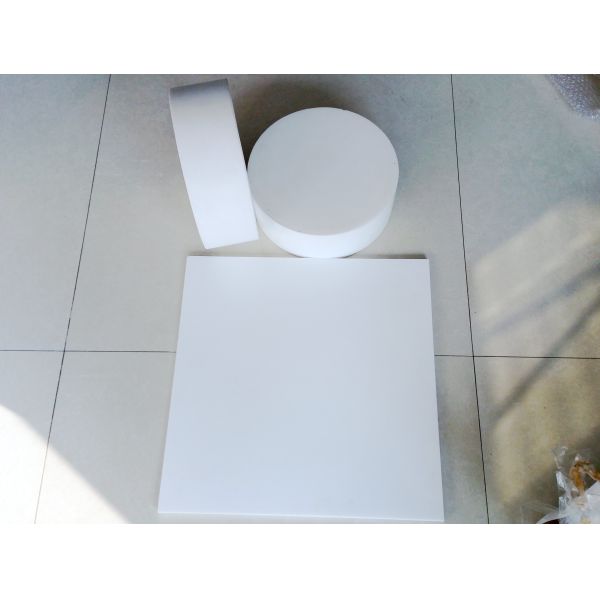

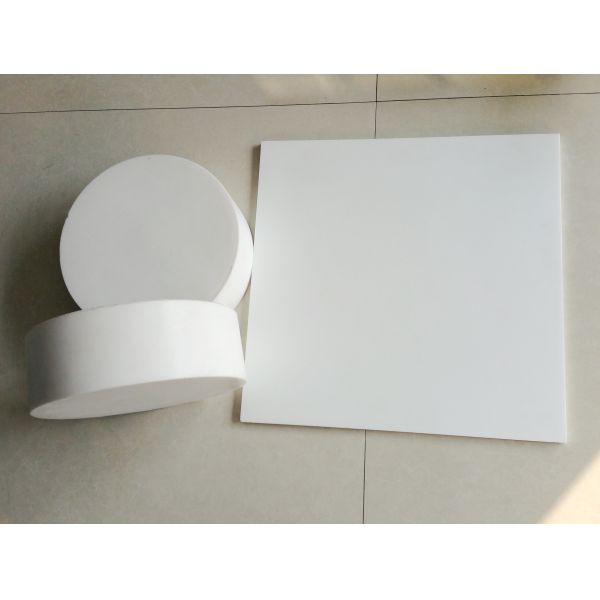

Product Images
Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance in White or Black Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance in White or Black Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance in White or Black Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance in White or Black
