Specifications
Brand Name :
E-link
Model Number :
LNK-FCAN01
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Dimensions (LxWxH): :
133mm×120mm×50mm
Weight :
0.75KG
Installation :
35mm DIN-Rail, Wall Mounting
Casing :
IP40 protection, Aluminum case
Working Temperature :
-40°C ~ 85°C
Fiber Type :
FC/SC/ST (FC in default)
Maximum transmission distance :
2Km
Description

Industrial 1-2Ch CAN Bus to Fiber Optic Converter

Product Advantages

· Integrated circuits based on independent intellectual property rights;

· Provide 1-2 CAN bus interfaces and 1 optical port;

· CAN data is fully transparent, baud rate is self-adaptive, no setting is required

· CAN interface maximum number of nodes 128; CAN interface maximum rate 0-1Mbps;

· The CAN interface speed complies with the international CAN1.0 and CAN2.0 standards;

· Support wide range AC / DC input, support internal isolation, redundant dual power input, power supply support overload protection, anti-reverse protection

Technical Indexes

Optical Fiber

Multi-mode Fiber:50/125um, 62.5/125um

Maximum transmission distance

2Km

Wavelength

850/1310nm

Transmitting power

Multimode 850nm: -18dBm

Multimode 1310nm: -25dBm

Receiver sensitivity

-40dBm~-28dBm

Fiber Type

FC/SC/ST (FC in default)

Single-mode Fiber: 9/125um

Transmission distance

20~120Km

Wavelength

1310/1550nm

Transmitting power

≥-9dBm

Receiver sensitivity

-40dBm~-28dBm

Fiber Type

FC/SC/ST (FC in default)

CAN Bus Interface

Protocol

Comply with international CAN1.0, CAN2.0 standards

No. of Ports

1 (LNK-FCAN01) or 2 (LNK-FCAN02)

Rate

0~1000Kbps

Physical Interface

Industrial Terminal

CAN Signals

CAN_H, CAN_L, GND

Power Supply

Power input

AC7V~50C; DC9-55V

Power consumption

≤2W

Access terminal

4-pin 5.08mm pitch plug-in terminal

Working environment

Working Temperature

-40°C ~ 85°C

Storage Temperature

-40°C ~ 85°C

Working Humidity

5%~95 % (no condensation)

MTBF

>100,000 hours

Mechanical:

Dimension (WxDxH)

133mm×120mm×50mm

Casing

IP40 protection, Aluminum case

Installation

35mm DIN-Rail, Wall Mounting

Weight

0.75KG

Overview

The CAN-to-fiber converters support all the transmission speeds (transmission rates):0-1Mbps. The CAN optical fiber converter can convert the CAN bus signal into an optical signal and transmit it on the optical fiber, which has the effect of extending the communication distance of the CAN bus. At the same time, the use of optical fiber communication solves the problems of electromagnetic interference, ground ring interference and lightning damage.

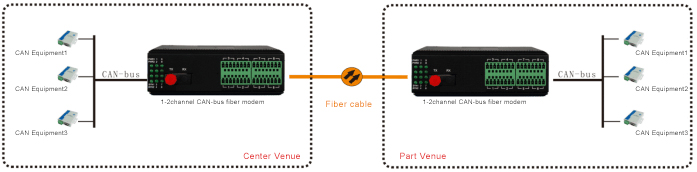

Application

Industrial 1-2Ch CAN Bus to Fiber Optic Converter

Ordering Information


Model

Description

Industrial 1Ch CAN-to-fiber converters

LNK-FCAN01

Industrial 1Ch CAN BUS Fiber Media Converter: Multimode, Dual Fiber, FC, 2KM

LNK-FCAN01-20

Industrial 1Ch CAN BUS Fiber Media Converter: Single Mode, Dual Fiber, FC, 20KM

LNK-FCAN01S-20

Industrial 1Ch CAN BUS Fiber Media Converter: Single Mode, Single Fiber, FC, 20KM

Industrial 2Ch CAN-to-fiber converters

LNK-FCAN02

Industrial 2Ch CAN BUS Fiber Media Converter: Multimode, Dual Fiber, FC, 2KM

LNK-FCAN02-20

Industrial 2Ch CAN BUS Fiber Media Converter: Single Mode, Dual Fiber, FC, 20KM

LNK-FCAN02S-20

Industrial 2Ch CAN BUS Fiber Media Converter: Single Mode, Single Fiber, FC, 20KM

Note*: Default FC fiber connector, SC, ST optional
