3G/HD/SD-SDI, RS422, Audio, Ethernet, Tally, Intercom & Return Video over Fiber Multiplexer

Product Advantages

· 3G/HD/SD-SDI - This product supports SMPTE complaint 3G, HD and SD-SDI data rates

· Handle all Pathological patterns

· Automatic cable equalization to ensure signal integrity

· With Remote & Tally & Audio(Intercom) & Return video

· 10/100 Ethernet - This product transmits and receives 10/100 Ethernet.

· Automatic cable equalization to ensure signal integrity

· Automatic re-locking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

· Support signal type: 270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards, DVB-ASI

Technical Indexes

General Specifications

Work Temp

-10°C to +75°C

Storage Temp

-40°C to 85°C

humidity

0 ~ 95% (non-condensing)

Input power

DC5V 3A

Power consumption

15W

Net weight

4kg

Appearance size

172mm*167mm*45mm (LxWxH)

Optical Fiber

Wavelength

1310nm / 1550nm / CWDM

Output Power

-6~-1dBm

Rx sensitivity

<-18dBm

Transmission Distance

SM fiber 10+km , MM fiber 300m

Optical connector

Dul LC /FC/ST/SC/MX/ Lemo / Neutrino (optional)

SDI input/output

Signal format

SMPTE 424M, SMPTE 292M, SMPTE 259M

Data rate

270Mbit/s - 1.48Gbit/s - 3Gbit/s

Cable Equalization

Automatic cable EQ (Bel den 1694A cable)

250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s

SDI interface

BNC 75 Ohm

Intercom

Camera Optic Adaptor

Interface

4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack

Microphone

Mic inputs with mute and pre-empt

Headphone

with volume up or down

Audio

Balance or unbalance line level

Tally

Camera Optic Adaptor

Interface

4pin air head or 3pin mini XLR

Output

Dry Contact Closure or wet +12V

On: short or +12V

Off: open or 0V

Remote Control

Interface

Terminal Block of Industrial Standard

Data

RS422 /RS232/RS485

Ethernet

Port

10/100 Base-T, RJ-45 connector

Work mode

Full duplex/half duplex

Data Rate

10 M bps & 100 M bps Ethernet (Auto Adaptive)

Overview

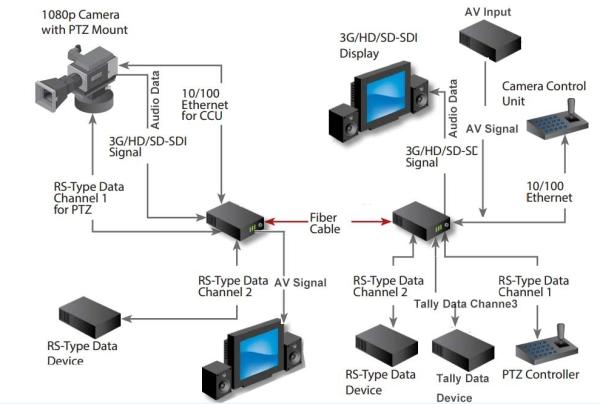

The LN K-MSDI Series allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259 with the ability to transmit 10/100 Base-T Ethernet RS422, Audio, Ethernet, Tally, Intercom & Return Video over single mode or multi mode fiber. All data channels are available simultaneously. The system transports a 3G/HD-SDI signal from the camera to the Base Station and a return video (3G/HD-SDI), Remote control data, gen lock, intercom, tally, audio and 10/100M Ethernet are also provided.

Application

· EFP (Electronic Field Production)

· Remote OB Van/Truck Video Feeds

· Broadcast Studio Camera Feeds

· Long-haul Signal Transport

· TV station/video conference

· Lecture Hall Projector Connectivity

· Medical/Surgical Room Broadcast

· Building to Building video conference calling

· Small corporate campus video links3G/HD/SD-SDI, RS422, Audio, Ethernet, Tally, Intercom & Return Video over Fiber Multiplexer
