Specifications
Brand Name :
E-link
Model Number :
ETH-IMC2402-OEO
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
$39-270
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Converter Standard Export Package
Keywords :
Industrial Media Converter
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
MTBF :
> 200,000 hrs
Weight :
0.25KG
Dimensions (WxDxH) :
95 x 70 x 30 mm
Power Consumption :
8W Max
Description

Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function

Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function Advantages

► Transparent Transport and very low delay

► 3R function (Regeneration, Reshaping, Re-timing)

► Support hot plugging, full state led display, easy installation

► Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function

► Support Loop-back and Jumbo Frame

► DIP Switch supports 1.25G/10G fiber data rate switching

► Can be as 1G Ethernet Media Converter if using Ethernet

► IP40 Aluminum Case

► Supports DIN-Rail/Wall-Mount installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function Overview

ETH-IMC2402-OEO series Industrial 10G OEO Converter is a connection between fiber to fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance transmission in harsh environment at operating temperature -40~ 80℃.

It is for network backbone (SAN, LAN, MAN) application. Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, which can be applied in R&D laboratory, data center, telecommunication room. It supports optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back.

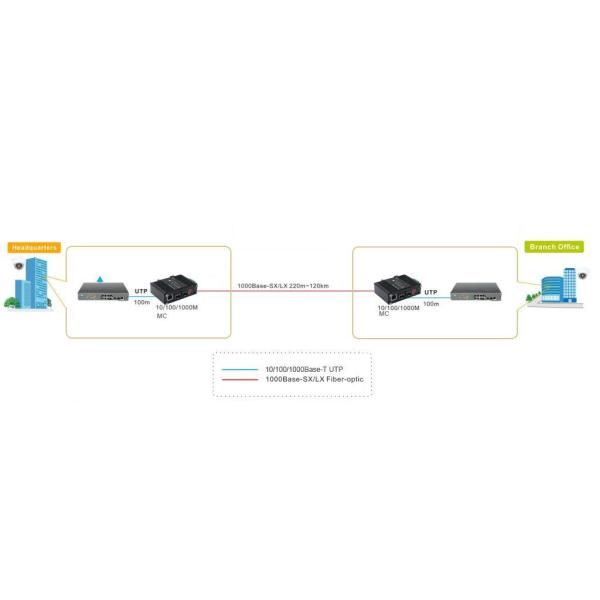

When only connecting the copper and fiber port, it can be connection between fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission up to 120km.

Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function Technical Indexes

Ethernet Media Converter Specifications

Standards

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z, 1000BASE-SX/LX

IEEE 802.3x Full-duplex flow control

Work Mode

10/100/1000BASE-T to 1000BASE-SX/LX

Port Type

SFP to RJ45

Network Cables

Twisted-pair
10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m
100BASE-TX: 2-pair UTP Cat. 5, up to 100m
1000BASE-T: 4-pair STP Cat 5 up to 100m

Fiber-optic Cable
1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.
1000BASE-LX:
9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on SFP module)

Electrical and Mechanical

Input Power

12~48VDC, Redundant Power (6-pin Terminal Block)

Power Consumption

8W Max

Protection

Power Input Overload

Automatic Resettable

Reverse Polarity

Present

Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function ordering information

Model

Description

ETH-IMC2402-OEO

Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
