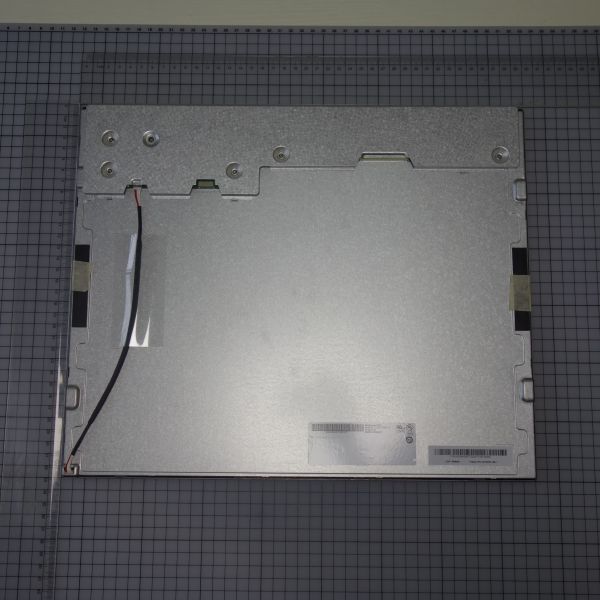

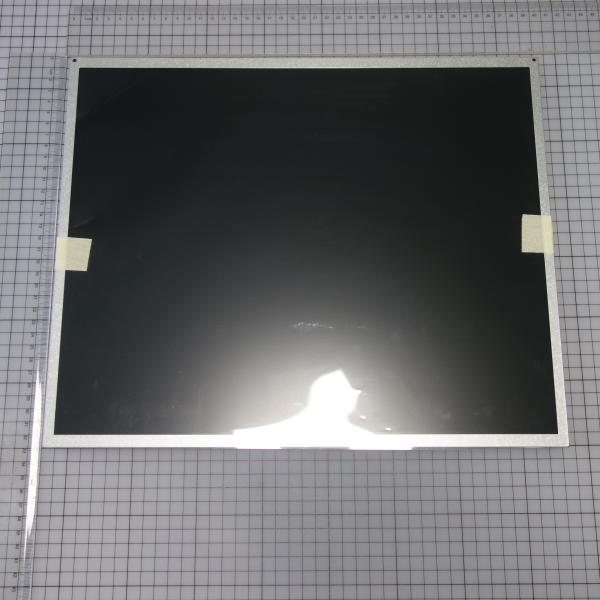

G190ETN01.4 AUO Touch Panel Anti Glare AUO LCD Screen 19 Inch LCM 1280×1024
G190ETN01.4 AUO Touch Panel Anti Glare AUO LCD Screen 19 Inch LCM 1280×1024
Specifications
Brand Name :
AUO
Model Number :
G190ETN01.4
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Name :
Auo Touch Panel
Model :
G190ETN01.4
Diagonal Size :
19.0 inch
Type :
a-Si TFT-LCD
Frame Rate :
60Hz
Touch Panel :
Without
Description

G190ETN01.4 AUO 19 inch LCM 1280×1024 Touch screen

Panel ModelG190ETN01.4
Panel BrandAUO
Descritiona-Si TFT-LCD ,19.0 inch, 1280×1024
Panel Typea-Si TFT-LCD
Display ModeTN, Normally White, Transmissive
Active Area376.32×301.06 mm
Outline396×324×13.38 mm
SurfaceAntiglare, Hard coating (3H)
Contrast Ratio1000:1 (Typ.)
Display Colors16.7M (6-bit + Hi-FRC) , CIE1931 90%
Response Time7/3 (Typ.)(Tr/Td)
Viewing Angle85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency60Hz
Lamp Type4 strings WLED Embedded (LED Driver)
Signal InterfaceLVDS (2 ch, 8-bit) , 30 pins
Input Voltage5.0V (Typ.)

G190ETN01.4 Basic Information

Panel ModelG190ETN01.4
Panel BrandAUO
Descritiona-Si TFT-LCD ,19.0 inch, 1280×1024
Panel Typea-Si TFT-LCD
Operating Temperature-30 ~ 85 °C
Storage Temperature-30 ~ 85 °C

G190ETN01.4 Mechanical Features

Dot Resolution1280(RGB)×1024 (SXGA)
Pixel ConfigurationRGB Vertical Stripe
Pixel Density86 PPI
Aspect Ratio5:4 (H:V)
Form FactorFlat Rectangle Display
Dot Pitch0.098×0.294 mm (H×V)
Pixel Pitch0.294×0.294 mm (H×V)
Weight1.80Kgs (Typ.)
SurfaceAntiglare, Hard coating (3H)
Active Area376.32×301.06 mm (H×V)
Bezel Area379.72×304.46 mm (H×V)
Outline Dimension396×324 mm (H×V)
Outline Depth13.38 (Max.) mm
Holes & BracketsSide mounting holes (4-M3) on left, right bezel
Landscape or PortraitLandscape type
Touch PanelWithout


Feature Of AUO LCD Panel

  1. Backlight: 2 CCFL, replaceable;
  2. High range of temperature;
  3. Grade: 100% New ,Grade A+;
  4. LVDS Interface and VGA interface
  5. High-speed response, Low power consumption
  6. Panel Type: TFT
  7. Surface Treatment: Haze 25%, 3H
  8. Accessories: LCD Inverter, LCD drive board, cables, key board, touch-screen,and LVDS cables etc…
  9. Competitive prices, offer 1 year of warranty;
  10. Original technology support.
  11. CE,ROHS certification


Advantage Of AUO LCD Panel

  1. We are professional LCD module manufacture in China with precise and advanced equipments.
  2. High quality Control with CE,ROHS and so on approved.
  3. More than 10 years of industry experience and involved main markets all over the world
  4. Dedicated and professional sales team will offer you 24 hours online and immediate service
  5. OEM and ODM support,12 months warranty for all of our products
  6. Our mission is to help our customers achieve success, then fulfill our both dreams

We also have other industrial LCD panels, pls contact to us for the further information
