1024*768 Antiglare flat lcd panel Screen , G150XTN03.0 tft lcd module High Brightness
1024*768 Antiglare flat lcd panel Screen , G150XTN03.0 tft lcd module High Brightness
1024*768 Antiglare flat lcd panel Screen , G150XTN03.0 tft lcd module High Brightness
1024*768 Antiglare flat lcd panel Screen , G150XTN03.0 tft lcd module High Brightness
1024*768 Antiglare flat lcd panel Screen , G150XTN03.0 tft lcd module High Brightness
1024*768 Antiglare flat lcd panel Screen , G150XTN03.0 tft lcd module High Brightness
1024*768 Antiglare flat lcd panel Screen , G150XTN03.0 tft lcd module High Brightness
1024*768 Antiglare flat lcd panel Screen , G150XTN03.0 tft lcd module High Brightness
Specifications
Brand Name :
AUO LCD Panel
Model Number :
G150XTN03.0
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box
Contrast Ratio :
700:1 (Typ.)
Signal Interface :
LVDS (1 ch, 6/8-bit) , 20 pins
Panel Type :
a-Si TFT-LCD , Panel
Color :
262K/16.2M
Color Saturation :
60%NTSC(CIE1931)
Outline :
326.50× 253.50×12.00 mm
Singnal Interface Definition :
LVDS-20P1C8B-020A
Pixel Arrangement :
RGB Vertical Stripe
Description

1024*768 Antiglare flat lcd panel Screen , G150XTN03.0 tft lcd module High Brightness

Our Services

Payment:

(1) Bank transfer , Western Union , T/T, Paypal are accepted.

(2) If any problem of payment, you can contact with us.

Warranty:

1. All panels’ grade is promised strictly same as original factory’s standard.

2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

4. ISO 9001 guarantee.

Our Advantage

>>Quality Guarantee:

Our LCD Panels are 100% original and brand new!

Warranty : 12 months

You can enjoy the real panels directly from the LCD panel brand distributor.

>>Packing Guarantee:

All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!

>>Delivery Guarantee:

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!

>>After-Sale service:

We have many years good experience on display solution.

Any question, we will reply you within 12 hours.

Mechanical Features

Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 85 PPI
Aspect Ratio : 4:3 (H:V)
Dot Pitch : 0.099×0.297 mm (H×V)
Pixel Pitch : 0.297×0.297 mm (H×V)
Weight : 1.20Kgs (Max.)
Bezel Area : 313.55×237.25 mm (H×V)
Outline Dimension : 326.5×253.5 mm (H×V)
Outline Depth : 12.0 (Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel

Photoelectric Parameter

Display mode TN, Normally White, Transmissive
Luminance 350 nits
Contrast Ratio 700:1
Color 262K/16.2M
Color Saturation 60%NTSC(CIE1931)
Response 5.7/2.3 (Tr/Td) ms
Viewing Angle 80/80/85/85(U/D/L/R)
White Field Chroma X:0.313; Y:0.329
White Field Dynamic 1.25 (9 points)
Scanning Frequency 60Hz
The kind of Singnal LVDS
Interface LVDS
Singnal Interface Definition LVDS-20P1C8B-020A
Drive-screen voltage 3.3V
Input Current 1A
Kind of Singnal Interface Connector
Brand of Singnal Interface E&T
Model of Singnal Interface MSB240420E
Pitch of Singnal Interface 1.25 mm
Pin of Singnal Interface 5 pins

Product Picture for G150XTN03.0

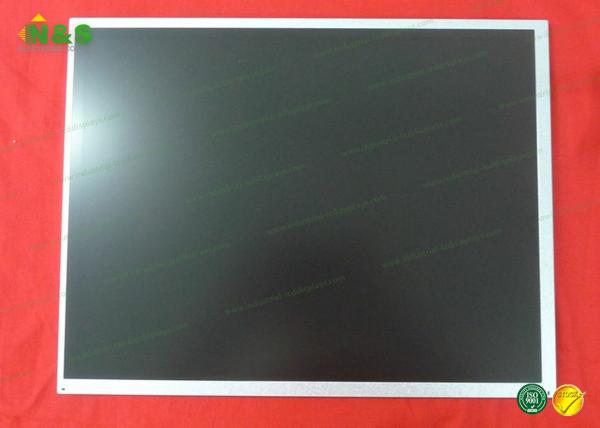

Front Picture

1024*768 Antiglare flat lcd panel Screen , G150XTN03.0 tft lcd module High Brightness

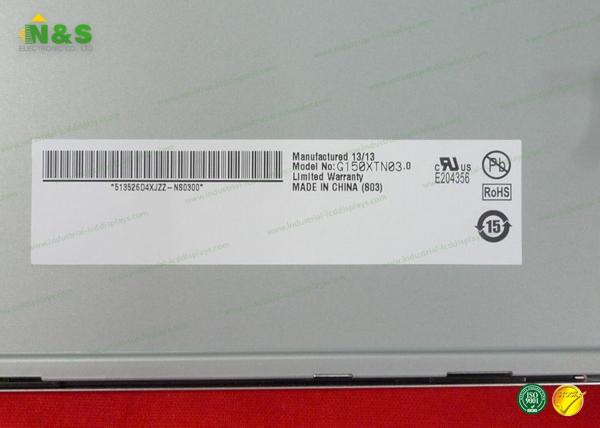

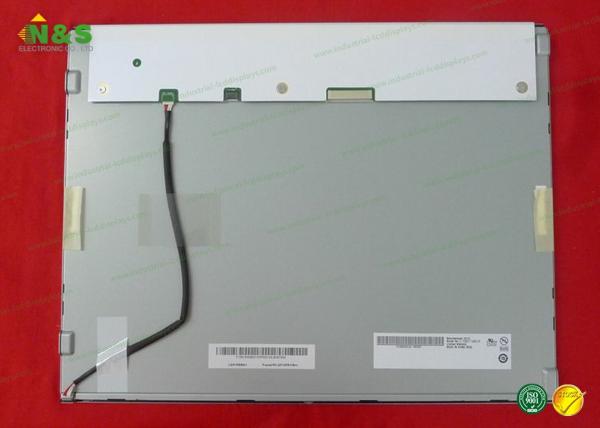

Backside Picture

1024*768 Antiglare flat lcd panel Screen , G150XTN03.0 tft lcd module High Brightness

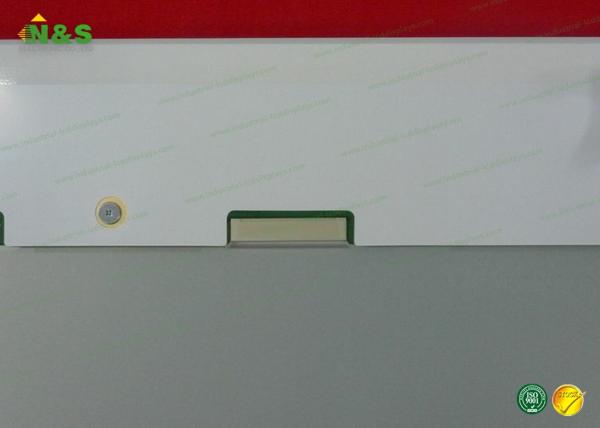

Tabs Picture

1024*768 Antiglare flat lcd panel Screen , G150XTN03.0 tft lcd module High Brightness
