Specifications
Brand Name :
Tianma LCD Displays
Model Number :
TM070SDH05
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Resolution :
800(RGB)×600 , SVGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
141×105.75 mm
Outline :
155.5×118.7×5.9 mm
Display Colors :
262K (6-bit) , CIE1931 50%
Response Time :
25 (Typ.)(Tr+Td)
Viewing Angle :
70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency :
60Hz
Description

Tianma LCD Displays TM070SDH05 7.0 inch 141×105.75 mm Active Area 155.5×118.7×5.9 mm Outline

TIANMA TM070SDH05 General Features

Panel Brand :TIANMA
Panel Model :TM070SDH05
Panel Type :a-Si TFT-LCD , Panel
Panel Size :7.0 inch
Resolution :800(RGB)×600 , SVGA
Display Mode :TN, Normally White, Transmissive
Active Area :141×105.75 mm
Outline :155.5×118.7×5.9 mm
Surface :Antiglare
Brightness :200 cd/m² (Typ.)
Contrast Ratio :500:1 (Typ.)
Display Colors :262K (6-bit) , CIE1931 50%
Response Time :25 (Typ.)(Tr+Td)
Viewing Angle :70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :3S6P WLED
Signal Interface :Parallel RGB (1 ch, 6-bit) , 30 pins
Input Voltage :3.3V (Typ.)


TIANMA TM070SDH05 Optical Features

Display Mode :TN, Normally White, Transmissive
Brightness :200 cd/m² (Typ.)
Contrast Ratio :500 : 1 (Typ.) (Transmissive)
Display Color :262K (6-bit)
Color Gamut :50% NTSC (CIE1931)
Response Time :25 (Typ.)(Tr+Td)
Viewing Angle :70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :12 o'clock
White color Chromaticity :Wx:0.310; Wy:0.337
White Variation :1.25/1.33 (Typ./Max.)(9 points)


Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.

We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.

Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
TM240160XCFWGRATianma2.2"240×160
TM128128F6CCWGWC1Tianma1.44"128×128
TM12864G3CCWGWA-1Tianma2.4"128×64
TM050XYSP02Tianma5.0"540×960
TM050JYHN11-00Tianma5.0"720×1280
TM055JYSP08Tianma5.5"720×1280
TM040XYHP01Tianma4.0"640×1136
TM055JYSP03Tianma5.5"720×1280
TM055JYHP03Tianma5.5"720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

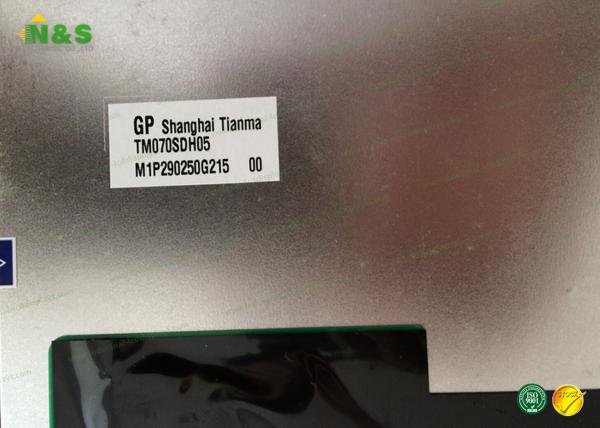

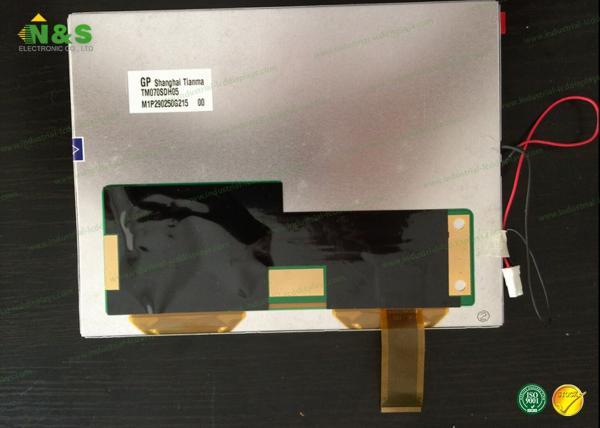

Details Pictures for Tianma LCD Displays TM070SDH05

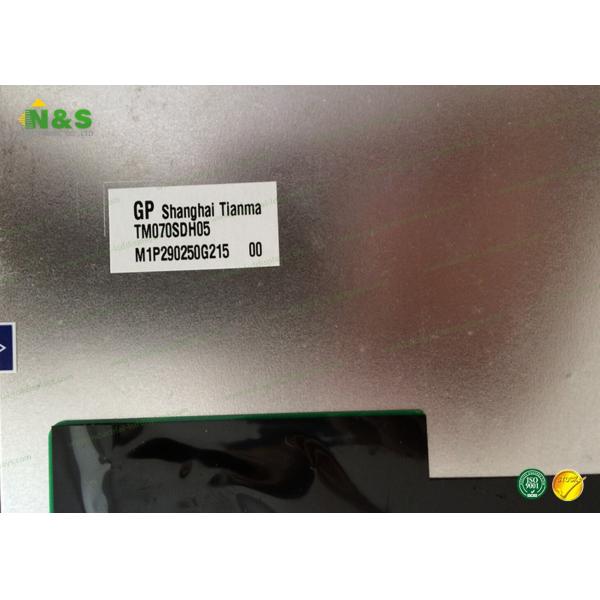

Tianma LCD Displays TM070SDH05  7.0 inch 141×105.75 mm Active Area 155.5×118.7×5.9 mm Outline

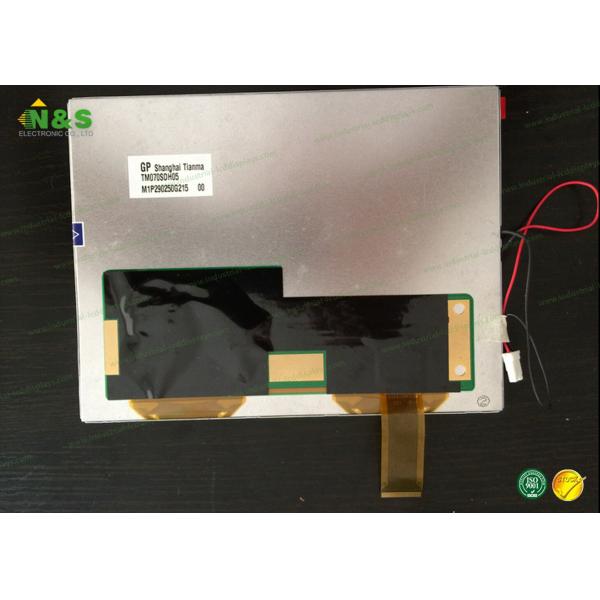

Tianma LCD Displays TM070SDH05  7.0 inch 141×105.75 mm Active Area 155.5×118.7×5.9 mm Outline
