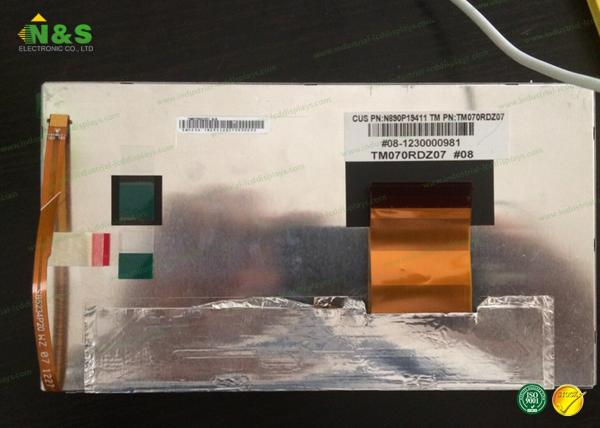

Tianma LCD Displays TM070RDZ07 7.0 inch 157.2×82.32 mm Active Area 167×93×6 mm Outline
Tianma LCD Displays TM070RDZ07 7.0 inch 157.2×82.32 mm Active Area 167×93×6 mm Outline
Specifications
Brand Name :
Tianma LCD Displays
Model Number :
TM070RDZ07
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Display Mode :
TN, Normally White, Transmissive
Active Area :
157.2×82.32 mm
Outline :
167×93×6 mm
Surface :
Antiglare, Hard coating (3H)
Contrast Ratio :
400:1 (Typ.)
Display Colors :
262K (6-bit) , CIE1931 70%
Response Time :
20 (Typ.)(Tr+Td)
Viewing Angle :
70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Description

Tianma LCD Displays TM070RDZ07 7.0 inch 157.2×82.32 mm Active Area 167×93×6 mm Outline

TIANMA TM070RDZ07 General Features

Panel Brand : TIANMA
Panel Model : TM070RDZ07
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 157.2×82.32 mm
Outline : 167×93×6 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 650 cd/m² (Typ.)
Contrast Ratio : 400:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 70%
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 5S3P WLED
Signal Interface : Parallel RGB (1 ch, 6-bit) , 60 pins
Input Voltage : 3.3/3.3/9.84/19.0/-7.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE)

Excellent service on before-sale, on-sale and after-sale

1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

2. Your inquiry related to our products or prices will be replied in 24 hours.

3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
TM240160XCFWGRA Tianma 2.2" 240×160
TM128128F6CCWGWC1 Tianma 1.44" 128×128
TM12864G3CCWGWA-1 Tianma 2.4" 128×64
TM050XYSP02 Tianma 5.0" 540×960
TM050JYHN11-00 Tianma 5.0" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

TIANMA TM070RDZ07 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 650 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 70% NTSC (CIE1931)
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White Variation : 1.25/1.33 (Typ./Max.)(9 points)

Packing & Delivery for our LCD Screen Panel Replacements:

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3 .Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.
