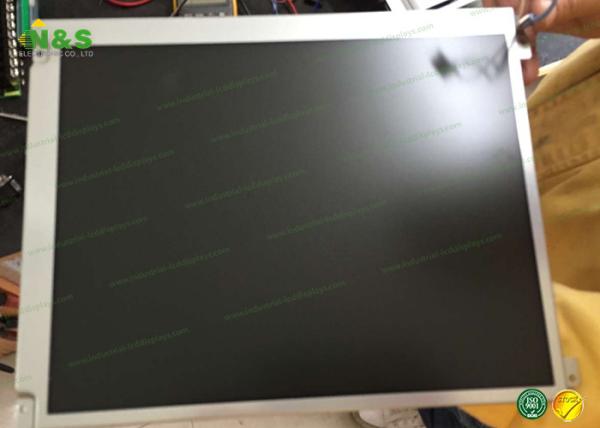

Normally White 5.7 inch AA057VD01 TFT LCD Module Mitsubishi 640×480 200 for Industrial Application panel
Normally White 5.7 inch AA057VD01 TFT LCD Module Mitsubishi 640×480 200 for Industrial Application panel
Specifications
Brand Name :
Mitsubishi
Model Number :
AA057VD01
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
5.7 inch
Resolution :
640(RGB)×480 , VGA
Display Mode :
AHVA, Normally Black, Transmissive
Active Area :
115.2×86.4 mm
Outline :
135×104.8×9.35 mm
Description

Normally White 5.7 inch AA057VD01 TFT LCD Module Mitsubishi 640×480 200 for Industrial Application panel

AA057VD01 Information

Panel Size : 5.7 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 141 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.060×0.180 mm (H×V)
Pixel Pitch : 0.180×0.180 mm (H×V)
Weight : 160g (Typ.)
Surface : Hard coating (3H), Antireflection
Active Area : 115.2×86.4 mm (H×V)
Bezel Area : 119.8×91.0 mm (H×V)
Outline Dimension : 135×104.8 mm (H×V)
Outline Depth : 8.85±0.5 mm
Holes & Brackets : Rear mounting holes (4-Ф2.6)
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transflective
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 150 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 10/20 (Typ.)(Tr/Td)
Viewing Angle : 80/80/45/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.320; Wy:0.360
White Variation : 1.30 (Max.)(5 points)
Sunlight Readable : Y


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AA084SD11-DA-01 Mitsubishi 8.4" 800×600
AA084SB11--T2 Mitsubishi 8.4" 800×600
AA104XF12-CE-01 Mitsubishi 10.4" 1024×768
D150X-N02 Mitsubishi 15.0" 1024×768
AA121TD03 Mitsubishi 12.1" 1280×800
AA150XT11-DE-01 Mitsubishi 15.0" 1024×768
AA104XF12-DE-02 Mitsubishi 10.4" 1024×768

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Packing & Delivery for our LCD Screen Panel Replacements:

  1. Anti-static Bag Packing.
  2. Anti-Shock Bubble Bag Packing
  3. Foam and Hard Carton Packing
  4. Picked up by forward and delivered by express services.

Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
