M215HW01 VB Hard coating industrial flat panel display 476.64×268.11 mm
M215HW01 VB Hard coating industrial flat panel display 476.64×268.11 mm
Specifications
Brand Name :
AUO
Model Number :
M215HW01 VB
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Supply Ability :
500PCS/DAY
Panel Type :
a-Si TFT-LCD , LCM
Active Area :
476.64×268.11 mm
Surface :
Antiglare, Hard coating (3H)
Brightness :
250 cd/m² (Typ.)
Display Colors :
16.7M (6-bit + Hi-FRC) , CIE1931 68%
Response Time :
3.8/1.2 (Typ.)(Tr/Td)
Description

21.5 inch M215HW01 VB AUO LCD Panel AUO Hard coating for Desktop Monitor

Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days

We can do for You:

1. Quality Guarantee:

100% original new Hard Disk for you.

2．Fast reply:

Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.

3．Delivery Guarantee:

Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.

4．After-Sale Service:

Professional support team to provide effective service, we are young and full of passion!

5. Professional acknowledgement of hard disks to provide customers with effective advice.

We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.

6. Competitive quotation:

Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

M215HW01 VB Detail

Panel Brand : AUO
Panel Model : M215HW01 VB
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 21.5 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : TN, Normally White, Transmissive
Active Area : 476.64×268.11 mm
Outline : 495.6×292.2×10.8 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 68%
Response Time : 3.8/1.2 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 16S4P WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)

Panel Size : 21.5 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 102 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.08275×0.24825 mm (H×V)
Pixel Pitch : 0.24825×0.24825 mm (H×V)
Weight : 1.80Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 476.64×268.11 mm (H×V)
Bezel Area : 479.84×271.31 mm (H×V)
Outline Dimension : 495.6×292.2 mm (H×V)
Outline Depth : 10.3 (Typ.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
H598QAN01.0 AUO 6.0" 1440×2560
T430HVN01.2 CELL AUO 43" 1920×1080
H495TAN01.2 AUO 5.0" 720×1280
T650QVN04.5 CELL AUO 65" 3840×2160
M320DVN01.0 CELL AUO 32.0" 2560×1440
M238HVN01.0 CELL AUO 23.8" 1920×1080
M238HVN01.2 CELL AUO 23.8" 1920×1080
T320XVN02.F CELL AUO 31.5" 1366×768
T430HVN01.6 CELL AUO 43" 1920×1080

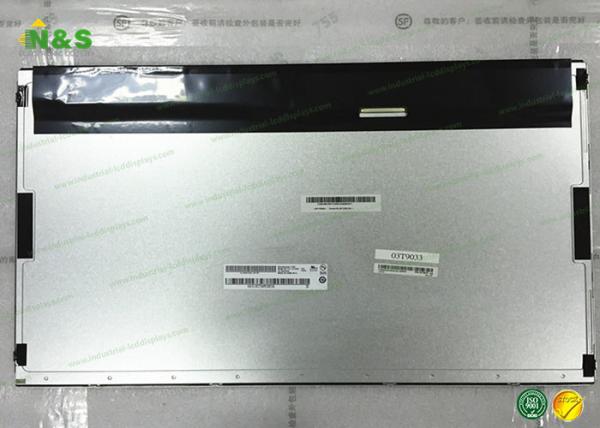

M215HW01 VB AUO LCD Panel AUO Picture
