176.64×99.36 mm CLAA080NA12 CW CPT TFT LCD Module 8.0 inch Normally White
176.64×99.36 mm CLAA080NA12 CW CPT TFT LCD Module 8.0 inch Normally White
176.64×99.36 mm CLAA080NA12 CW CPT TFT LCD Module 8.0 inch Normally White
176.64×99.36 mm CLAA080NA12 CW CPT TFT LCD Module 8.0 inch Normally White
176.64×99.36 mm CLAA080NA12 CW CPT TFT LCD Module 8.0 inch Normally White
176.64×99.36 mm CLAA080NA12 CW CPT TFT LCD Module 8.0 inch Normally White
176.64×99.36 mm CLAA080NA12 CW CPT TFT LCD Module 8.0 inch Normally White
176.64×99.36 mm CLAA080NA12 CW CPT TFT LCD Module 8.0 inch Normally White
Specifications
Brand Name :
CPT
Model Number :
CLAA080NA12 CW
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
CPT
Panel Model :
CLAA080NA12 CW
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
8.0 inch
Resolution :
1024(RGB)×600 , WSVGA
Display Mode :
TN, Normally White, Transmissive
Description

176.64×99.36 mm CLAA080NA12 CW CPT LCD Panel 8.0 inch Normally White

Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!

CLAA080NA12 CW Specification

Panel Brand : CPT
Panel Model : CLAA080NA12 CW
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 8.0 inch
Resolution : 1024(RGB)×600 , WSVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 176.64×99.36 mm
Outline : 192.8×116.9×6.7 mm
Surface : Antiglare
Brightness : 600 cd/m² (Typ.)
Contrast Ratio : 800:1 (Typ.)
Display Colors : 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 50%
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 75/75/50/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 3S13P WLED Without Driver
Signal Interface : LVDS (1 ch, 6/8-bit) , 40 pins
Input Voltage : 3.3/9.6/21.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL)

FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.

Panel Size : 8.0 inch
Dot Resolution : 1024(RGB)×600 (WSVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 148 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0575×0.1656 mm (H×V)
Pixel Pitch : 0.1725×0.1656 mm (H×V)
Weight : 220g (Typ.)
Surface : Antiglare
Active Area : 176.64×99.36 mm (H×V)
Bezel Area : 180.1×103.4 mm (H×V)
Outline Dimension : 192.8×116.9 mm (H×V)
Outline Depth : 6.4±0.3 mm
Holes & Brackets : Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
CLAG045LJ72 CPT 4.5" 480×854
CLAN050WD61 6XM CPT 5.0" 720×1280
CLAD015GC41 AX CPT 1.5" 240×240
CLAA090WK05XN CPT 9.0" 1280×720
CLAC080XA12LW CPT 8.0" 1024×768
CLAD015GB01 AX CPT 1.5" 240×240
CLAG045LG71 XX CPT 4.5" 480×854
CLAG045LH41 AXXA CPT 4.5" 480×854
CLAF020GC21A0 CPT 2.0" 240×320

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

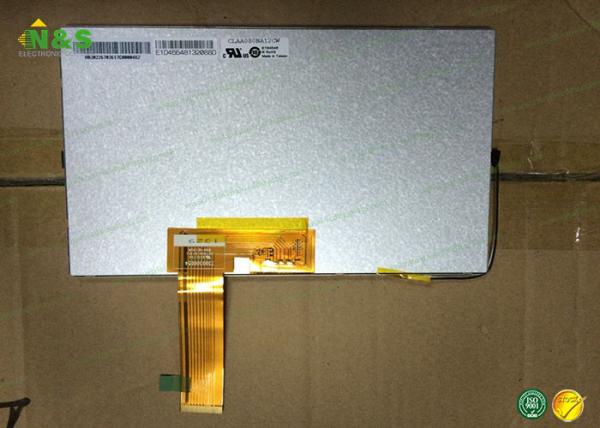

CLAA080NA12 CW Picture

176.64×99.36 mm CLAA080NA12 CW CPT TFT LCD Module 8.0 inch Normally White
