Handheld Industrial Gas Dew Point Analyzer Trace Water Analyzer Micro Water Tester With Robust Metal Housing
Handheld Industrial Gas Dew Point Analyzer Trace Water Analyzer Micro Water Tester With Robust Metal Housing
Handheld Industrial Gas Dew Point Analyzer Trace Water Analyzer Micro Water Tester With Robust Metal Housing
Handheld Industrial Gas Dew Point Analyzer Trace Water Analyzer Micro Water Tester With Robust Metal Housing
Handheld Industrial Gas Dew Point Analyzer Trace Water Analyzer Micro Water Tester With Robust Metal Housing
Handheld Industrial Gas Dew Point Analyzer Trace Water Analyzer Micro Water Tester With Robust Metal Housing
Specifications
type :
Multi-Gas Detector
Delivery Time :
appointed time
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Place of Origin :
Xi'an, Shaanxi, China
Accuracy Class :
High Accuracy
Price :
Negotiable
Packaging Details :
Export Standard
Brand Name :
Runlai
Certification :
ISO certification
Payment Terms :
L/C、D/A、D/P、T/T
MOQ :
1
Target Gas :
All Gas
Alarm Mode :
Sound
Description

Handheld Gas Dew Point Meter Runlai DPH300 High Accuracy Trace Water Analyzer Micro Water Tester with Robust Metal Housing, Customizable Detector for Industrial Gas Dew Point Measurement

The RL-DPH300 handheld dew point meter is an intelligent analyzer powered by a microprocessor. It uses a thin-film capacitive measurement principle to accurately measure the moisture content in mixed gases. The device is compact and easy to carry, featuring a clear color screen and a user-friendly menu. Its core sensor boasts fast response, high measurement accuracy, and a long service life. It also includes a built-in temperature compensation function, effectively ensuring measurement stability in different environments.

Measurement Principle

Thin-film Capacitive Ceramic Humidity Sensor | The core of this sensor is a ceramic thin-film medium that is sensitive to water molecules. When water vapor molecules in the environment penetrate and adsorb onto this medium, it causes a change in its dielectric constant, which directly results in a change in the sensor's capacitance value. By precisely measuring this change in capacitance, the instrument can calculate the corresponding humidity or dew point value.

Basic Parameters
Measurement Principle Thin-film Capacitive Ceramic Humidity Sensor;
Measurement Range Range can be selected from 60.0°C to 60°C)
Accuracy ±1.0°C FS
Repeatability +1°C
Stability ±1%/7 days
Sample Gas Flow Rate (2 + 0.5) L/min
Sample Gas Pressure 0.05MPa ≤ Inlet Pressure ≤ 0.25MPa
Response Time T90 ≤ 3 minutes;
Operating Power Supply 12VDC

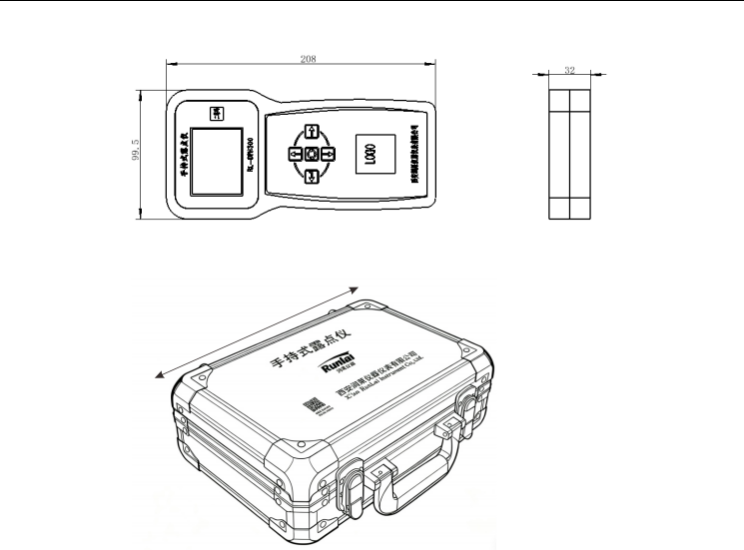

Dimensions 99.5mm (width) * 208mm (height);
Charging Power Supply (220 + 22)VAC, (50 + 5)Hz, with built-in charging protection
Service Life >12 months (under normal operating conditions as specified);

This principle allows for direct measurement of the water vapor partial pressure in gases, making it fast-responding and highly stable.

Key Features

  • Precision Sensing: Uses high-performance imported sensors for fast response, accurate measurements, and long lifespan.
  • Intelligent Stability: Built-in temperature compensation and automatic data storage features enhance reliability in long-term measurements.
  • Portable Design: Compact size and light weight make it easy to carry and use on-site.
  • Easy Operation: Features a clear color screen and intuitive menus for a user-friendly experience
Handheld Industrial Gas Dew Point Analyzer Trace Water Analyzer Micro Water Tester With Robust Metal Housing Handheld Industrial Gas Dew Point Analyzer Trace Water Analyzer Micro Water Tester With Robust Metal Housing Handheld Industrial Gas Dew Point Analyzer Trace Water Analyzer Micro Water Tester With Robust Metal Housing
