Metal Construction Gas Dew Point Detector Trace Water Analyzer Micro Water Tester
Metal Construction Gas Dew Point Detector Trace Water Analyzer Micro Water Tester
Metal Construction Gas Dew Point Detector Trace Water Analyzer Micro Water Tester
Metal Construction Gas Dew Point Detector Trace Water Analyzer Micro Water Tester
Specifications
type :
Multi-Gas Detector
Place of Origin :
Xi'an, Shaanxi, China
Certification :
ISO certification
Brand Name :
Runlai
Accuracy Class :
High Accuracy
MOQ :
1
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Packaging Details :
Export Standard
Price :
Negotiable
Delivery Time :
appointed time
Payment Terms :
L/C、D/A、D/P、T/T
Target Gas :
All Gas
Alarm Mode :
Sound
Description

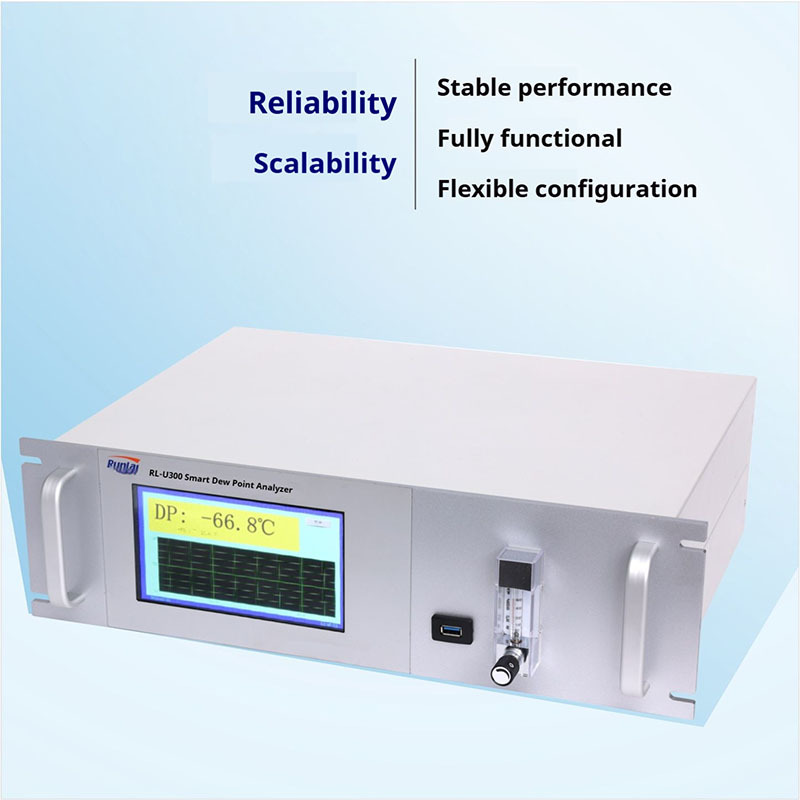

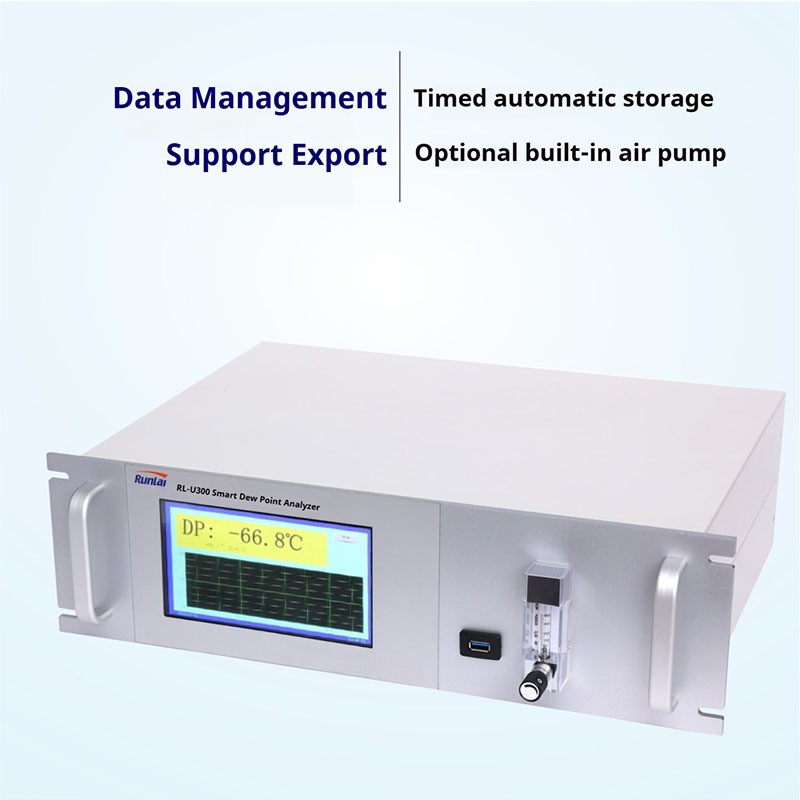

Industrial High Accuracy Runlai U300 Trace Water Analyzer Micro Water Tester Metal Construction Customizable Gas Dew Point Detector

  • Measurement Principle: Imported thin-film capacitive ceramic humidity sensor/phosphorus pentoxide (optional based on customer requirements)
  • Measurement Range: -100.0～0.0℃/-80.0～+20.0℃/-60.0～+60.0℃/0-1000PPM (Range can be selected arbitrarily)
  • Accuracy: ≤±1.5℃ (above -60℃) ≤±2℃ (below -60℃)
  • Resolution: 0.1℃
  • Repeatability: ±0.5℃
  • Stability: Zero drift ≤±1℃ Range drift ≤±1℃
  • Response Time: T90≤3min
  • Storage Interval: 1-60min (adjustable)
  • Number of Stored Points: Millions+
  • Instrument Lifespan: 6 years (under proper operating conditions)
  • Operating Voltage: 220-240VAC, 50/60Hz
  • Total Power Consumption: ≤15W
  • Digital Signal: Standard RS485/RS232 communication ports for two-way communication with computers
  • Analog Output: 4～20mA standard output signal, load resistance less than 500 ohms (0～10V available)
  • Installation Method: Embedded installation

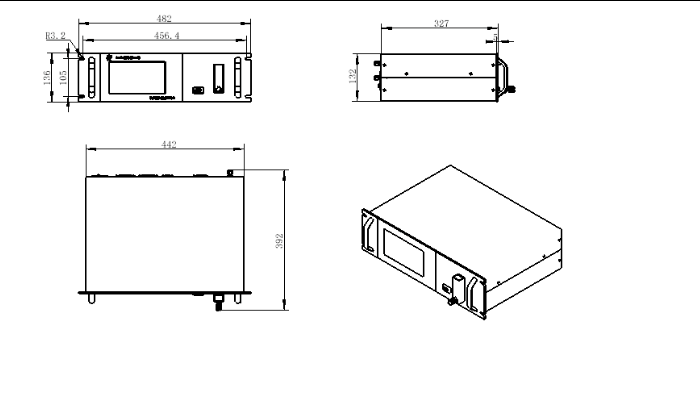

  • Dimensions: 482mm (width) × 136mm (height) × 370mm (depth)
  • Opening Size: 456.4mm (width)×105mm (height)
  • Inlet/Outlet: Φ6 ferrule connectors (customizable)
  • Total Weight: Approximately 4.5Kg
  • Ambient Temperature: -25℃～+55℃
  • Ambient Humidity: ≤90%RH
  • Inlet Pressure: 0.05 MPa ≤ inlet pressure ≤ 0.25Mpa
  • Sample Gas Flow Rate: (1.0±0.5) L/min (100ml/min for phosphorus pentoxide principle)
