Metal Construction Micro Water Tester Gas Dew Point Analyzer Industrial Detector
Metal Construction Micro Water Tester Gas Dew Point Analyzer Industrial Detector
Metal Construction Micro Water Tester Gas Dew Point Analyzer Industrial Detector
Metal Construction Micro Water Tester Gas Dew Point Analyzer Industrial Detector
Specifications
Brand Name :
Runlai
type :
Multi-Gas Detector
MOQ :
1
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Accuracy Class :
High Accuracy
Packaging Details :
Export Standard
Place of Origin :
Xi'an, Shaanxi, China
Price :
Negotiable
Delivery Time :
appointed time
Payment Terms :
L/C、D/A、D/P、T/T
Target Gas :
All Gas
Certification :
ISO certification
Alarm Mode :
Sound
Description

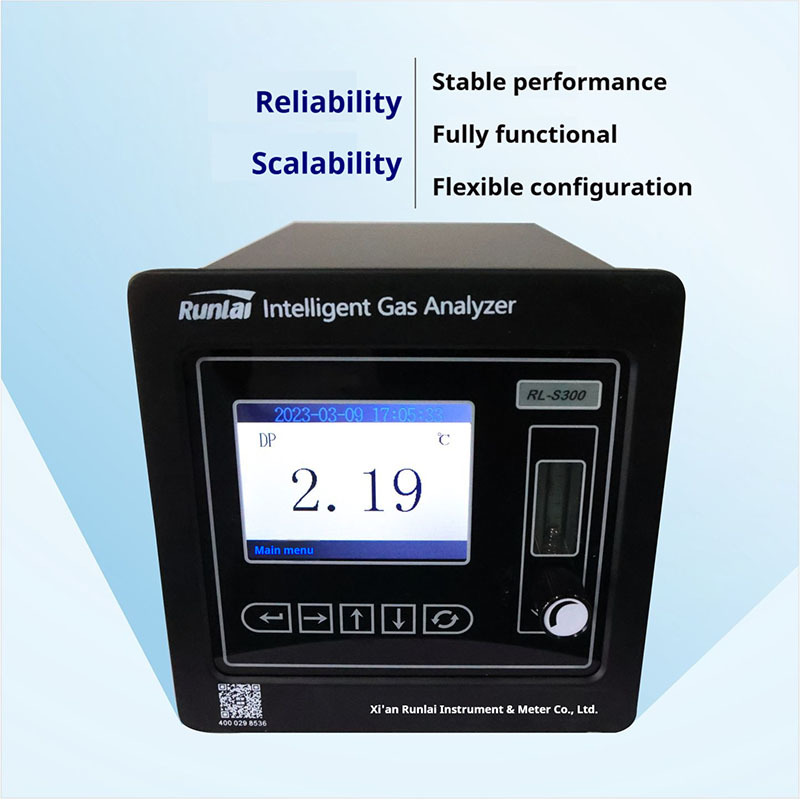

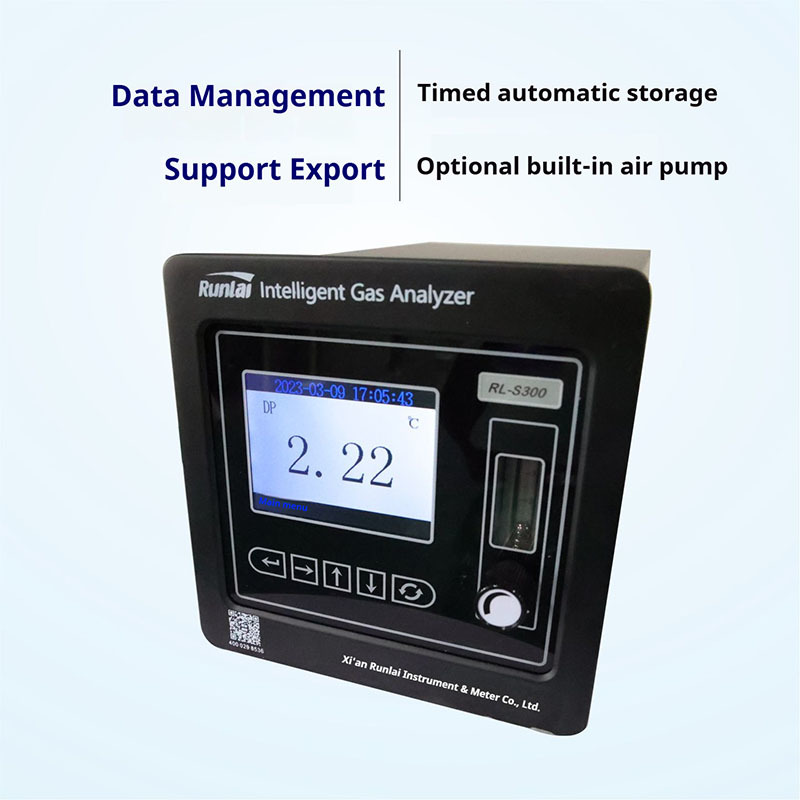

Metal Construction Runlai S300 Micro Water Tester High Accuracy Gas Dew Point Trace Water Analyzer Customizable Industrial Detector

Product specs
Name parameters
Measurement Principle Imported thin-film capacitive ceramic humidity sensor
Measurement Range -100.0～0.0°C/-80.0～+20.0°C/-60.0～+60.0°C/0-1000PPM (Range can be selected arbitrarily)
Accuracy ≤±2°C
Resolution 0.1°C
Repeatability ≤±1°C
Stability ≤±1°C
Response Time T90≤3min
Storage Interval 1S-99min
Number of Storage Points 1824
Instrument Lifespan 6 years (under proper operating conditions)
Operating Voltage 220-240VAC, 50/60Hz
Total Power Consumption ≤10W
Contact Output Dual relay output
Contact Capacity 220VAC, 2A/24VDC, 1A
Digital Signal Standard RS485/RS232 communication ports, enabling two-way communication with computers
Analog Output 4～20mA standard output signal, load resistance less than 500 ohms (0～10V optional)
Installation Method Embedded installation

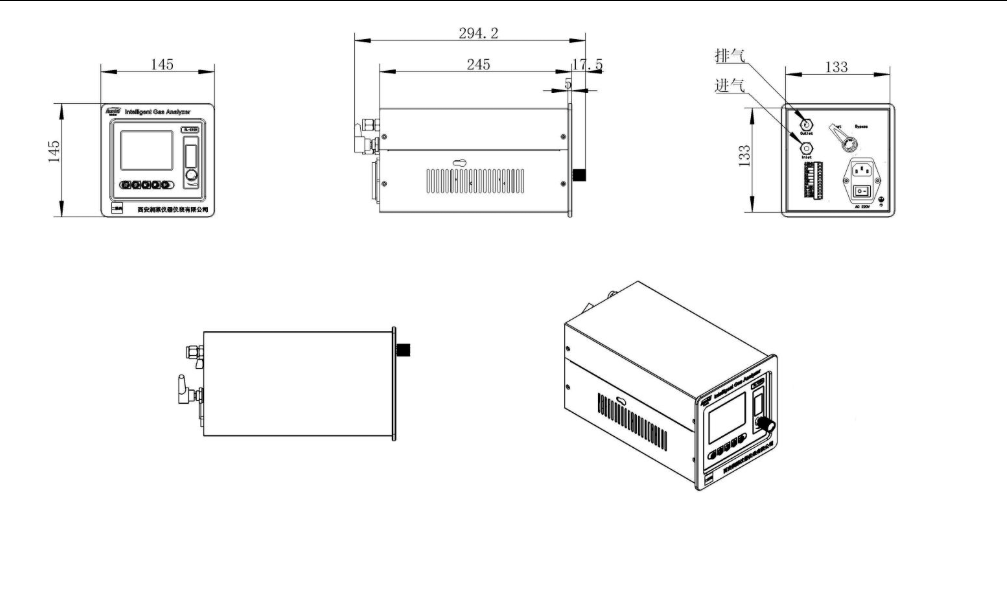

Dimensions 145mm (width) × 145mm (height) × 282mm (depth)
Opening Size 135mm (width)×135mm (height)
Inlet and Outlet Φ3 (outer diameter) ferrule connectors (customizable sizes available)
Total Weight Approximately 2.5Kg
Ambient Temperature -25°C～+55°C
Ambient Humidity ≤90%RH
Inlet Pressure 0.05 MPa≤Inlet Pressure≤0.25MPa
Metal Construction Micro Water Tester Gas Dew Point Analyzer Industrial Detector Metal Construction Micro Water Tester Gas Dew Point Analyzer Industrial Detector Metal Construction Micro Water Tester Gas Dew Point Analyzer Industrial Detector
