Specifications
Target Gas :
All Gas
Alarm Mode :
Sound
Delivery Time :
appointed time
type :
Multi-Gas Detector
Brand Name :
Runlai
MOQ :
1
Packaging Details :
Export Standard
Payment Terms :
L/C、D/A、D/P、T/T
Accuracy Class :
High Accuracy
Certification :
ISO certification
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Place of Origin :
Xi'an, Shaanxi, China
Price :
Negotiable
Description

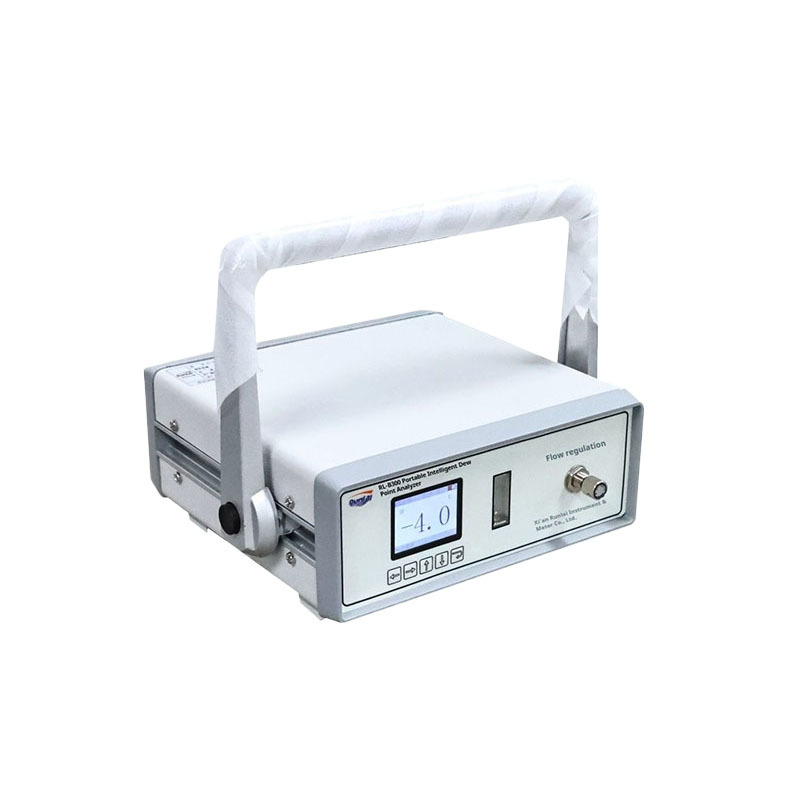

Metal Construction High Accuracy Portable Multi-Gas Dew Point Meter Trace Water Analyzer Customizable Micro Water Detector Runlai B300

Technical Specifications
  • Measurement Principle: Imported film capacitive ceramic humidity sensor;
  • Measurement Range: -100.0 to +20°C, -80.0 to +20°C, -60.0 to +60°C (Range can be selected arbitrarily)
  • Accuracy: ±1.0°C FS;
  • Repeatability: ±1°C;
  • Stability: ±1%/7 days;
  • Sample Gas Flow Rate: (2±0.5) L/min;
  • Sample Gas Pressure: 0.05MPa ≤ Inlet Pressure ≤ 0.25MPa;
  • Response Time: T90 ≤ 3 minutes;
  • Power Supply: 12VDC;

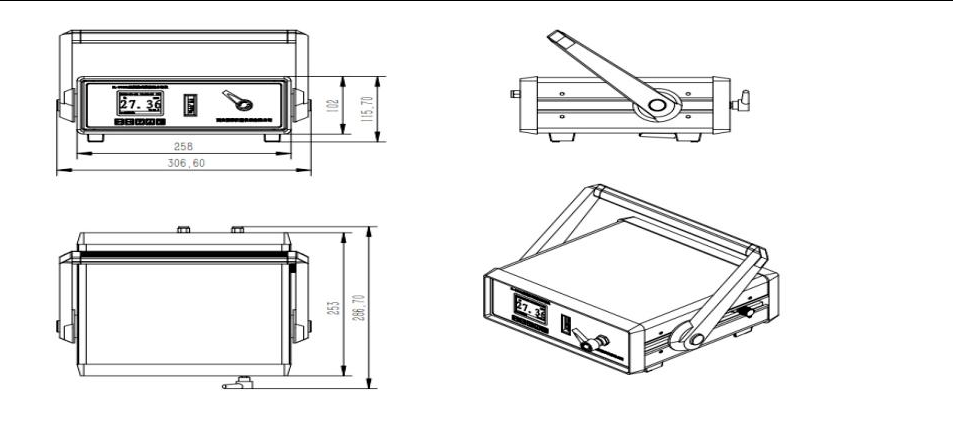

  • Dimensions: 300mm (width) * 120mm (height) * 270mm (depth);
  • Charging Power Supply: (220±22)VAC, (50±5)Hz, with built-in charging protection function
  • Service Life: >12 months (Under normal operating conditions according to specifications);
  • Gas Connection: Φ3 stainless steel pipe (Customizable according to customer requirements);
Key Features
  1. 320*240 true color TFT screen, intuitive display, Chinese/English menu interface, easy to operate;
  2. Uses imported film capacitive ceramic humidity sensor, featuring long life, high accuracy, and fast response. Different sensors can be selected based on the background gas being measured on-site;
  3. Displays dew point (°C), volume percentage (PPMV), and humidity (mg/m3) simultaneously, with clear readings eliminating the need for manual lookup tables;

Widely used for rapid detection and analysis of dew point in gases such as nitrogen, oxygen, argon, hydrogen, etc., in industries including air separation, chemical processes, magnetic materials, electronics, building materials, and various mixed gases.
