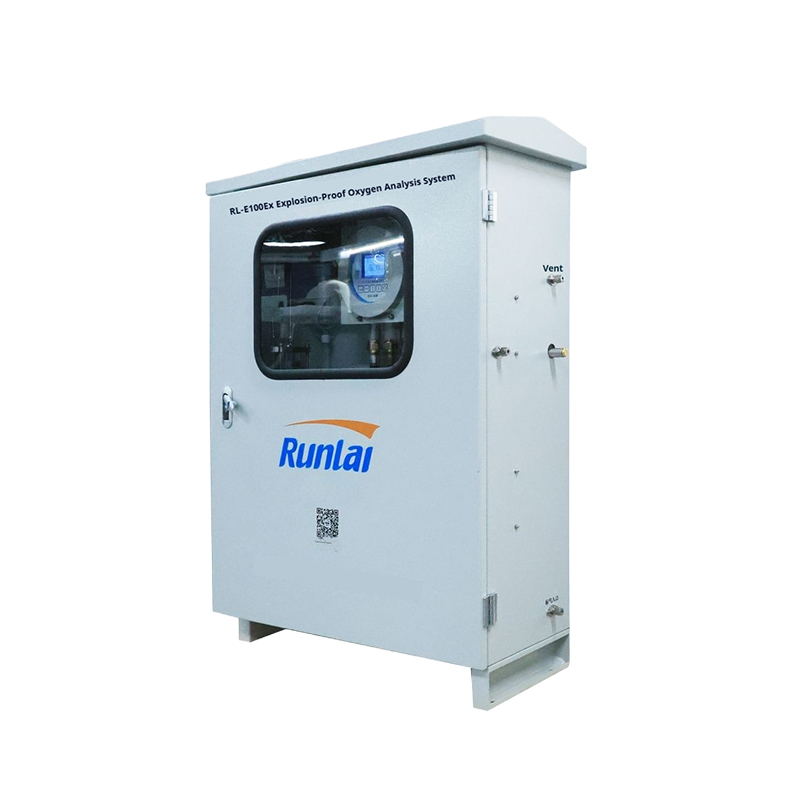

Flameproof Electrochemical Industrial Oxygen Detector O2 Gas Analyser With Audible Alarm
Flameproof Electrochemical Industrial Oxygen Detector O2 Gas Analyser With Audible Alarm
Flameproof Electrochemical Industrial Oxygen Detector O2 Gas Analyser With Audible Alarm
Flameproof Electrochemical Industrial Oxygen Detector O2 Gas Analyser With Audible Alarm
Flameproof Electrochemical Industrial Oxygen Detector O2 Gas Analyser With Audible Alarm
Flameproof Electrochemical Industrial Oxygen Detector O2 Gas Analyser With Audible Alarm
Specifications
type :
Oxygen Detector
Price :
Negotiable
Model Number :
E100Ex
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Accuracy Class :
High Accuracy
Delivery Time :
appointed time
Place of Origin :
Xi'an, Shaanxi, China
Certification :
ISO certification
Packaging Details :
Export Standard
Brand Name :
Runlai
Payment Terms :
L/C、D/A、D/P、T/T
MOQ :
1
Target Gas :
Oxygen
Alarm Mode :
Sound
Description
Product Specifications
Parameter Value
Measurement principle Imported electrochemical fuel cell type, magnetic mechanical type, laser, fluorescence
Measurement range 0.00%–25% O2 / 0.00%–99.99% O2; (Range selectable)
Accuracy ±1%FS
Response time τ90 ≤ 30S
Preheating time ≤ 10min
Sample gas flow rate (400±40) mL/min
Sample gas pressure 0.05MPa ≤ inlet pressure ≤ 0.25MPa
Analog output (4–20) mA standard signal; (0–10) V available upon request
Digital output Standard RS485 communication port, enabling two-way communication with a computer
Contact output Dual relay outputs of 220VAC, 2A or 24VDC, 1A
Operating environment Temperature: –10°C to +45°C
Humidity: ≤90%RH
Power supply (220±22)VAC, (50±5)Hz

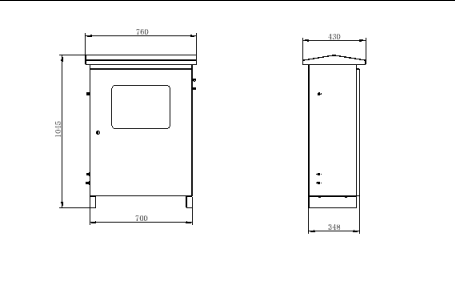

Dimensions Analyzer 210mm*210mm*150mm (L*W*H) / 260*260
Weight Approximately 6 Kg
Explosion-proof grade EXdII CT6
Service life >6 years (under normal operating conditions with proper maintenance)
Gas interface Φ6 stainless steel pipe (customizable according to customer requirements)
Mounting method Wall-mounted or horizontal installation
Gas pump Built-in suction pump (optional)
Key Features
  • Uses imported sensors featuring long lifespan, high accuracy, and fast response;

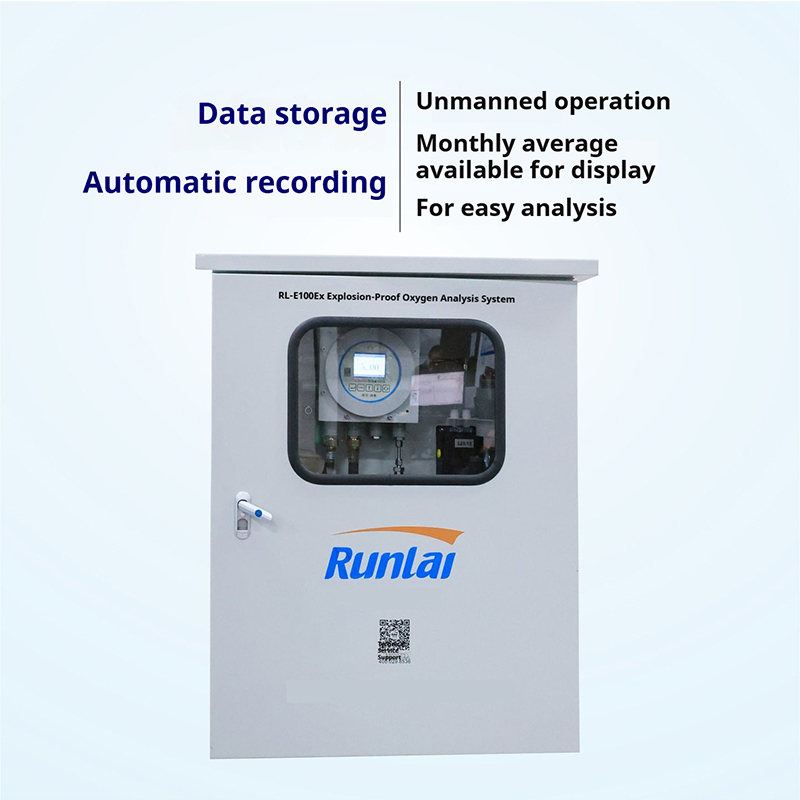

  • Scheduled automatic data storage function, allowing for real-time data retrieval;
  • Instrument features a user-friendly Chinese menu interface, simple and reliable, with control over contact outputs, over-limit self-alarm (buzzer), and customizable control modes;
  • Standard 4–20mA current output and external ports such as RS-232 or RS-485 (either available);
  • Can automatically record oxygen content values when unattended, with up to 3000 data points stored;
  • Features a new type of gas flow stabilization system; offers advanced technology, high accuracy, fast response, stable performance, comprehensive functionality, ease of operation, and continuous gas analysis process;
  • Widely applicable to online explosion-proof oxygen content monitoring in petrochemical, natural gas, metallurgy, electronics and power, machinery manufacturing, reaction kettles, centrifuges, and other industries.
