Explosion Proof Multi Gas Analysis System O2 CO CO2 CH4 CnHm H2S H2 NH3 DP Tester
Explosion Proof Multi Gas Analysis System O2 CO CO2 CH4 CnHm H2S H2 NH3 DP Tester
Explosion Proof Multi Gas Analysis System O2 CO CO2 CH4 CnHm H2S H2 NH3 DP Tester
Explosion Proof Multi Gas Analysis System O2 CO CO2 CH4 CnHm H2S H2 NH3 DP Tester
Specifications
Payment Terms :
L/C、D/A、D/P、T/T
Packaging Details :
Export Standard
Delivery Time :
appointed time
type :
Multi-Gas Detector
Accuracy Class :
High Accuracy
Explosion-proof rating :
Exd IIC T6 Gb
Place of Origin :
Xi'an, Shaanxi, China
material :
Metal
Precision :
≤±1%F.S
Overall dimensions :
1800mm x 800mm x 600mm (Height x Width x Depth)
Measure principle :
Various methods for different gases (please check the details below)
Gas sample flow rate :
(400 ± 50) mL/min
Overall machine weight :
Customizable, vary with customized products
Model Number :
RL-609
Target Gas :
Multi-Gas
Alarm Mode :
Sound
Certification :
ISO certification
MOQ :
1
Price :
Negotiable
Brand Name :
Runlai
customized support :
OEM/ODM/OBM/Software Reengineering
Operating voltage (customizable) :
220V±10%, 50hz±10%
Measuring range :
Different gases, different ranges(please check the details below)
Environmental temperature :
-25°C ~ +55°C (Customizable)
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Description

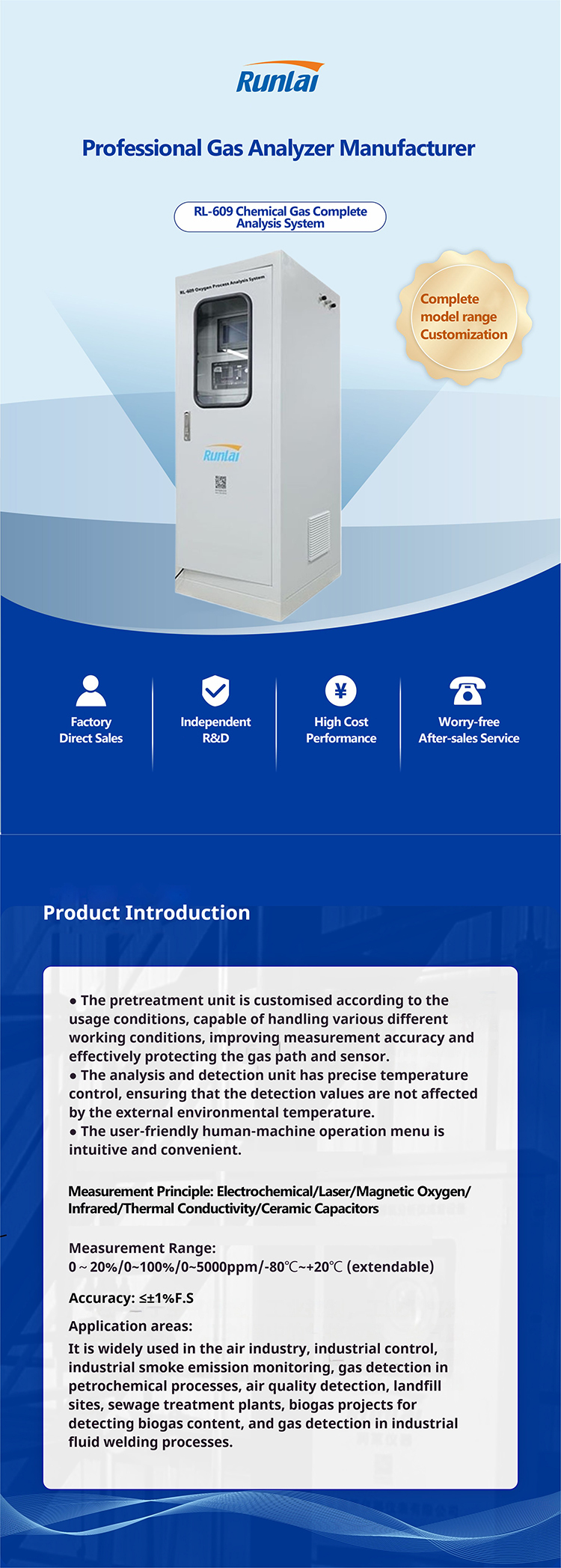

Product Introduction

The RL-609 Chemical Gas Analysis System is a high-precision online gas analysis solution designed for applications in fertilizer, chemical, pharmaceutical, biofermentation, and pesticide synthesis industries. By integrating advanced detection technologies such as electrochemistry, infrared, laser, magnetic oxygen, and thermal conductivity, this system enables real-time, accurate monitoring of various gas components including oxygen, carbon monoxide, carbon dioxide, methane, hydrocarbons, hydrogen sulfide, hydrogen, ammonia, and dew point. Its core strength lies in its ability to adapt to complex operating conditions, ensuring reliable and safe gas content detection during production processes, thereby providing critical technical support for industrial process control and environmental protection.

Product Features

  • Customized Pre-treatment System
    Tailored pre-treatment units for different operating conditions effectively handle complex environments, significantly improving measurement accuracy while comprehensively protecting gas lines and sensors.
  • Gas Line and Sensor Protection
    Features comprehensive protection functions to ensure unobstructed gas lines and sensor safety.
  • Constant Temperature Control Technology
    The analysis unit employs precise temperature control to eliminate interference from external temperature fluctuations, ensuring long-term stability and reliability of data.
  • Intelligent and User-friendly Interface
    Equipped with an intuitive and user-friendly operating interface, simplifying adjustment and monitoring processes to enhance user experience and operational efficiency.
Explosion Proof Multi Gas Analysis System O2 CO CO2 CH4 CnHm H2S H2 NH3 DP Tester
