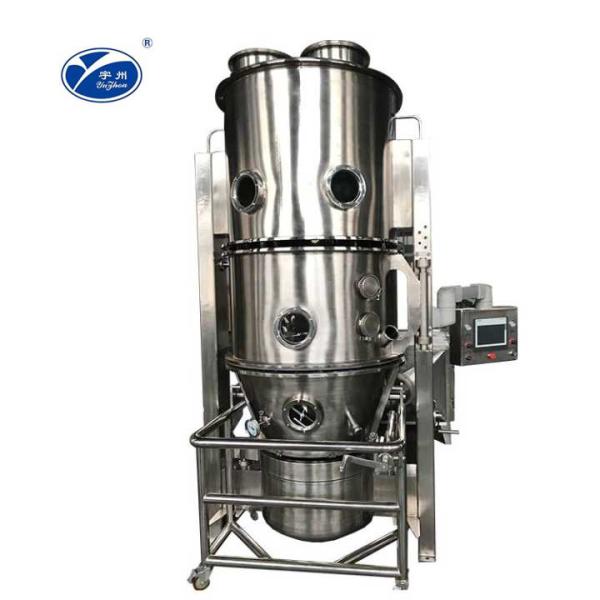

Copulation 0.1-6mm Vertical Fluidized Bed Dryer GMP Standard medicine powder or granule
Copulation 0.1-6mm Vertical Fluidized Bed Dryer GMP Standard medicine powder or granule
Copulation 0.1-6mm Vertical Fluidized Bed Dryer GMP Standard medicine powder or granule
Copulation 0.1-6mm Vertical Fluidized Bed Dryer GMP Standard medicine powder or granule
Copulation 0.1-6mm Vertical Fluidized Bed Dryer GMP Standard medicine powder or granule
Copulation 0.1-6mm Vertical Fluidized Bed Dryer GMP Standard medicine powder or granule
Copulation 0.1-6mm Vertical Fluidized Bed Dryer GMP Standard medicine powder or granule
Copulation 0.1-6mm Vertical Fluidized Bed Dryer GMP Standard medicine powder or granule
Specifications
Brand Name :
YUTONG
Model Number :
GFG
Certification :
SGS, CE, ISO
Place of Origin :
China
MOQ :
1unit
Price :
USD10990-59000/unit
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000unit per year
Delivery Time :
35 working days
Packaging Details :
shipping container
Name :
fluid bed dryer/Fluidized Bed Dryer
Material :
SUS 304, SUS316L
Standard :
GMP
Evaporation capacity :
50-120KG/HOUR
Heating source :
electricity or steam
Packing :
40HQ container
Application :
food, chemical, medicine powder or granule
Heating temperature :
30-200℃
Description

Big Capacity Vertical Fluidized Bed Dryer Fast Drying Speed Low Maintenance

Application

Fluidized Bed Dryer is used for Food powder or granule drying, chemical powder drying, medicine powder drying.

Used for boiling drying of particle material with a size of 0. 1-6mm, and suitable for speedy drying of finished product, intermediate (semi finished product) in such trades aspharmaceutical, food, light industry and chemical etc.

Working principle
Used the draught of fan, natural air flows through purifying cabinet, heater and froms high speed air flow in the hole of material bed, which makes the material into boiling(fluidized)status, during the large area touch between gas and solid phases, mosture of material is veaporated quickly, and thus reaching the purpose of drying.

Main feature
Fluidized Bed Dryer hopper is sealed with frame by way of O type air cell, featuring convenient handling. Hopper is equipped with agitator inside, materail is dried uniformly and speedily without boiling dead angle.
Filter bag and cylinder automatic bag shake unit are supplied on the top to avoid materialloss.
With air purifying cabinet, it usesoutdoor air has no influence on air purifying load of purified workshop.
High drying speed, drying time can be freely set up according to features of materials, normally at 10-30min.


Item		 Model
GFG-60 GFG-100 GFG-120 GFG-150 GFG-200 GFG-250 GFG-300
Volume of hopper L 200 300 400 500 650 800 1000
Production capacity kg/ 30-60 50-100 60-120 70-150 100-200 120-250 150-300
Air inlet temperature 0C 50-100
Fan Blast M3/h 2576 3488 3619 5114 5153 6032 7185 7766
Air pressure Pa 5639 5080 7109 5869 9055 7610 7400 7218
Motor power kw 7.5 11 11 15 18.5 22 22 30
Agitator Speed r/min 11 11 11 11 11 11 11
Motor power kw 0.55 1.1 1.1 1.5 1.5 2.2 2.2
Steam Pressure Mpa 0.4 0.4 0.4 0.4 0.6 0.6 0.6
Consumption kg/h 140 170 210 240 230 280 280
Compressed air Pressure Mpa 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Consumption m3/h 0.6 0.6 0.6 0.9 0.9 0.9 0.9
Weight of main frame kg 1000 1200 1200 1500 1700 2000 2200
