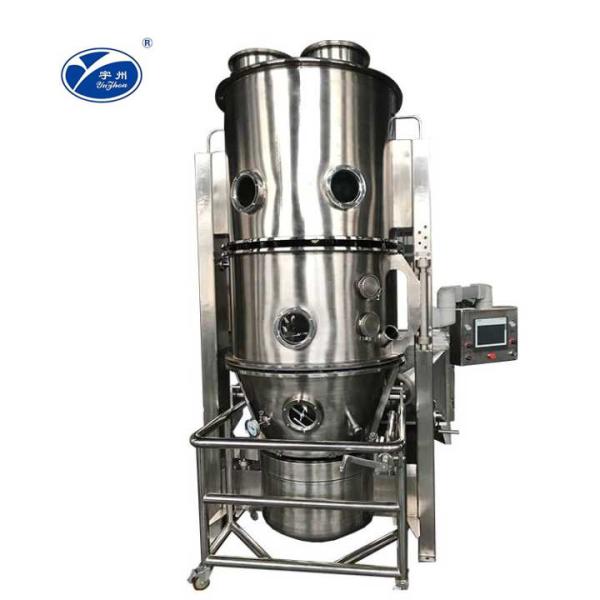

Pharmaceutical Vertical Fluidized Bed Dryer 50-120KG/Batch For Herb Powder
Pharmaceutical Vertical Fluidized Bed Dryer 50-120KG/Batch For Herb Powder
Pharmaceutical Vertical Fluidized Bed Dryer 50-120KG/Batch For Herb Powder
Pharmaceutical Vertical Fluidized Bed Dryer 50-120KG/Batch For Herb Powder
Specifications
Model Number :
GFG
Certification :
SGS, CE, ISO
Place of Origin :
China
MOQ :
1unit
Price :
USD10990-59000/unit
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000unit per year
Delivery Time :
35 working days
Packaging Details :
shipping container
Name :
fluid bed dryer/Fluidized Bed Dryer
Material :
SUS 304, SUS316L
Temperature :
30-200
Evaporation capacity :
50-120KG/Batch
Heating source :
electricity or steam
Packing :
40HQ container
Application industry :
food/pharmaceutical
Description

Pharmaceutical Vertical Fluidized Bed Dryer For Drying Herb Powder 50 -120KG / HOUR

There are many types of dryers. You can look at the actual performance when you choose to understand them. However, you need to know the whole equipment in detail so that you can know that the desiccant produced is used. Not very good. We can look at the current sales in the market so that you will be more assured when you choose.


Feature 1, in terms of the closed negative pressure operation of the device itself, it is relatively simple, because after the airflow is filtered, the whole operation is simple, and it is very convenient when cleaning. Now it is mainly used in the GMP workshop. . The high-efficiency Fluidized Bed Dryer really has such an ideal equipment state, and the overall performance advantage can be better in actual use.


The temperature of the professional equipment itself is uniform, and the drying time of each batch is 20-30 minutes. This speed is actually very fast, and it can guarantee better overall effect. In the process of using it now, everyone also has A good evaluation is given, which is enough to show that the performance of the product is still very good.

Feature 3: When choosing to use the high-efficiency Fluidized Bed Dryer, you should realize that the automatic feeding and discharging system is adopted throughout the design, which ensures the convenience in the whole process. Now the mixing of the hopper is not the same. In the overall advantage, it still plays a big role in other aspects. If we can understand in detail, we can choose it reasonably.

Item Model
GFG-60 GFG-100 GFG-120 GFG-150 GFG-200 GFG-250 GFG-300
Volume of hopper Liter 200 300 400 500 650 800 1000
Production capacity kg/batch 30-60 50-100 60-120 70-150 100-200 120-250 150-300
Air inlet temperature 0C 50-100
Fan Blast M3/h 2576 3488 3619 5114 5153 6032 7185 7766
Air pressure Pa 5639 5080 7109 5869 9055 7610 7400 7218
Motor power kw 7.5 11 11 15 18.5 22 22 30
Agitator Speed r/min 11 11 11 11 11 11 11
Motor power kw 0.55 1.1 1.1 1.5 1.5 2.2 2.2
Steam Pressure Mpa 0.4 0.4 0.4 0.4 0.6 0.6 0.6
Consumption kg/h 140 170 210 240 230 280 280
Compressed air Pressure Mpa 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Consumption m3/h 0.6 0.6 0.6 0.9 0.9 0.9 0.9
Weight of main frame kg 1000 1200 1200 1500 1700 2000

2200
