Specifications
Model Number :
GFG-120
Certification :
SGS, CE, ISO
Place of Origin :
China
MOQ :
1unit
Price :
USD10990-59000/unit
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000unit per year
Delivery Time :
35 working days
Packaging Details :
shipping container
Name :
fluid bed dryer
Material :
SUS 304, SUS316L
GMP :
yes
Evaporation capacity :
50-120KG/Batch
Heating source :
electricity or steam
Packing :
40HQ container
Temperature :
30-200
Description

high efficient fluidized bed dryer for food,chemical, medicine, drink powder or granule batch by batch drying

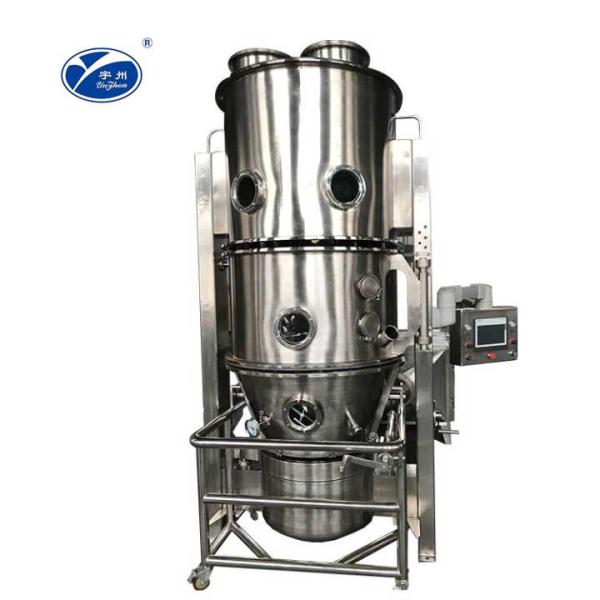

High Efficient Vertical Fluidized Bed Dryer Fast Drying Speed Temperature Uniformity

GFG series high-efficiency vertical fluidized bed dryer is suitable for drying mechanism screw extrusion granules,
Rocking granules, wet high-speed mixed granules; wet in the fields of medicine, food, feed, chemical, etc.
Dry granules and powdery materials; large granules, small pieces, viscous granules; konjac, poly propylene
A material that changes in volume when dried, such as an enamide.
The process is shown in the figure.

After the air is purified by heating, it is introduced from the lower part by the induced draft fan, and is worn.
Through the stencil of the hopper. In the working chamber, fluidization is formed by stirring and negative pressure, and the water is fast.


After the evaporation, the material is quickly dried as the exhaust gas is taken away.


GFG series high efficiency fluid bed dryer features:
1 The fluidized bed is a circular structure to avoid dead ends;
2The hopper is set to stir to avoid the agglomeration of wet materials.
And forming a channel when drying;
3 Use the tumbling and unloading, which is convenient and quick and thorough.
Automatic feeding and discharging system can be designed as required;
4 sealed negative pressure operation, the air flow is filtered;
5 easy to operate, easy to clean, is in line with
Ideal equipment required by “GMP”;
6 drying speed, temperature uniformity, drying each batch
The time is usually 20-30 minutes.
The GFG high efficiency boiling dryer is suitable for use in Vietnam, Thailand, Kazakhstan, Sri Lanka, Indonesia, the Philippines and other countries and countries.

Item Model
GFG-60 GFG-100 GFG-120 GFG-150 GFG-200 GFG-250 GFG-300
Volume of hopper Liter 200 300 400 500 650 800 1000
Production capacity kg/batch 30-60 50-100 60-120 70-150 100-200 120-250 150-300
Air inlet temperature 0C 50-100
Fan Blast M3/h 2576 3488 3619 5114 5153 6032 7185 7766
Air pressure Pa 5639 5080 7109 5869 9055 7610 7400 7218
Motor power kw 7.5 11 11 15 18.5 22 22 30
Agitator Speed r/min 11 11 11 11 11 11 11
Motor power kw 0.55 1.1 1.1 1.5 1.5 2.2 2.2
Steam Pressure Mpa 0.4 0.4 0.4 0.4 0.6 0.6 0.6
Consumption kg/h 140 170 210 240 230 280 280
Compressed air Pressure Mpa 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Consumption m3/h 0.6 0.6 0.6 0.9 0.9 0.9 0.9
Weight of main frame kg 1000 1200 1200 1500 1700 2000

2200
