50-200kg/H Oscillating Granulator Machine For Wet Powder Mixture
50-200kg/H Oscillating Granulator Machine For Wet Powder Mixture
50-200kg/H Oscillating Granulator Machine For Wet Powder Mixture
50-200kg/H Oscillating Granulator Machine For Wet Powder Mixture
Specifications
Model Number :
YK
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1unit
Price :
USD 1690-3290 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100units per month
Delivery Time :
15days
Packaging Details :
export wooden case
Name :
oscillating granulator
Mesh size :
0.2mm-3mm
Roller size :
60mm 90mm 160mm 250mm 320mm
Principle :
swaying roller press
Standard :
GMP
Raw material :
soft mix wet powder
Function :
pelletizing
Description

High Speed Oscillating Granulator Machine 1500 × 1200 × 1500m Long Service Life

Ocsillating granulator machine Compare with rotary granulator

Working principle and characteristics of ocsillating granulator

1, the main purpose:
This machine is a special equipment for making the wet powder mixture into the granules under the action of the positive and negative rotation of the rotating drum.


2. Working principle and characteristics:

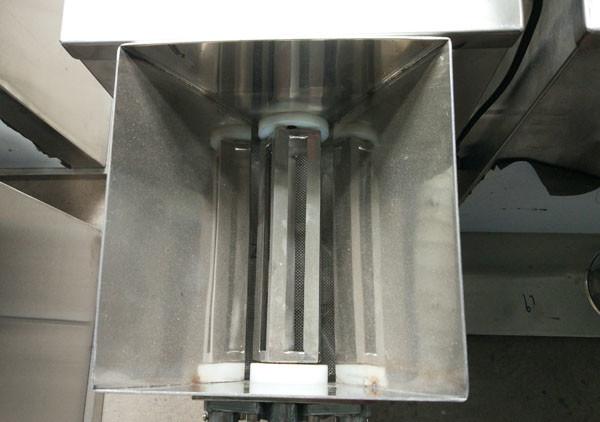

The motor, the V-belt wheel, the worm and the worm wheel drive, under the action of the eccentric crankshaft and the lifting rack, make the seven-corner hob of the gear shaft belt rotate periodically. The material is continuously moved and the particles are controlled and extruded by the screen and rotor gap. The production capacity varies with the moisture, type, viscosity and mesh of the material, and various sizes of particles can be produced. When the dry material is pulverized, the condensed material is collided and pulverized in a drum made of a seven-corner hob, and the dry material is forced to pass through the screen.

Technical Parameter

spec YK160 YK320
capacity 50-200 kg/h 50-400 kg/h
power 2.2kw 7.5kw
speed 65rpm 65rpm
sway angle 360o 360o
diameter Φ160mm Φ320mm
weight 450kg 750kg
overall dimension 1000×800×1300m 1500×1200×1500m
