Pelletizing Oscillating Granulator Machine For 0.2mm -3mm Mesh
Pelletizing Oscillating Granulator Machine For 0.2mm -3mm Mesh
Pelletizing Oscillating Granulator Machine For 0.2mm -3mm Mesh
Pelletizing Oscillating Granulator Machine For 0.2mm -3mm Mesh
Specifications
Model Number :
YK
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1unit
Price :
USD 1690-3290 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100units per month
Delivery Time :
15days
Packaging Details :
export wooden case
Name :
oscillating granulator
Mesh size :
0.2mm-3mm
Roller size :
60mm 90mm 160mm 250mm 320mm
Principle :
swaying roller press
Standard :
GMP
Raw material :
soft mix wet powder
Function :
pelletizing
Description

High Output Oscillating Granulator Machine Pelletizing Function Low Maintenance

YK oscillating granulator machine function:

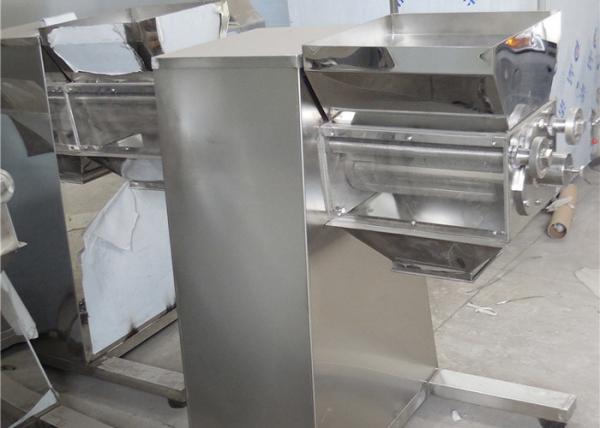

The oscillating granulator machine makes the wet powder or the block dry material into the required granules, and the screen mesh is made of wire mesh, which is easy to assemble and disassemble, and is elastically adjustable. The main components of the machine are enclosed in the machine body, and a lubrication system is attached to make the production process run smoothly. The whole machine adopts stainless steel plate and conforms to GMP standards.

Chinese name Swing granulator conforms to the standard GMP use Pharmaceutical, chemical, food

The main purpose of ocsillating granulator machine:
Oscillating granulator is popular used in the pharmaceutical, chemical, food and other industries, the wet powder is made into granules, and the lumps of dry materials can be pulverized and can be quickly granulated.

working principle:

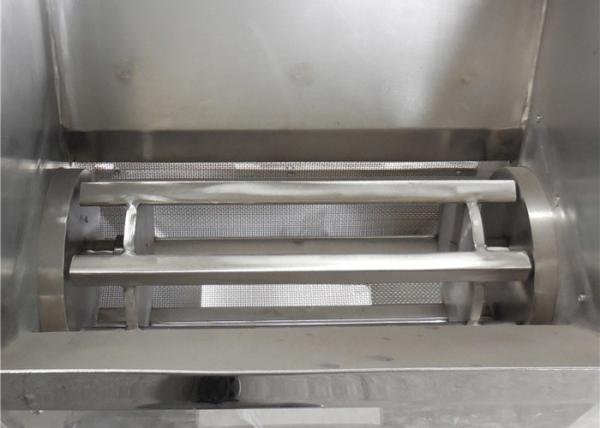

The drum is reciprocated by mechanical transmission, and the material is extruded from the screen to be granulated or pulverized or granulated.



Technical Parameter

spec YK160 YK320
capacity 50-200 kg/h 50-400 kg/h
power 2.2kw 7.5kw
speed 65rpm 65rpm
sway angle 360o 360o
diameter Φ160mm Φ320mm
weight 450kg 750kg
overall dimension 1000×800×1300m 1500×1200×1500m
