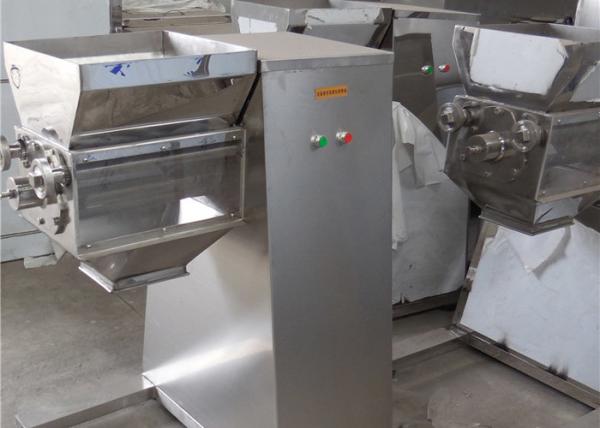

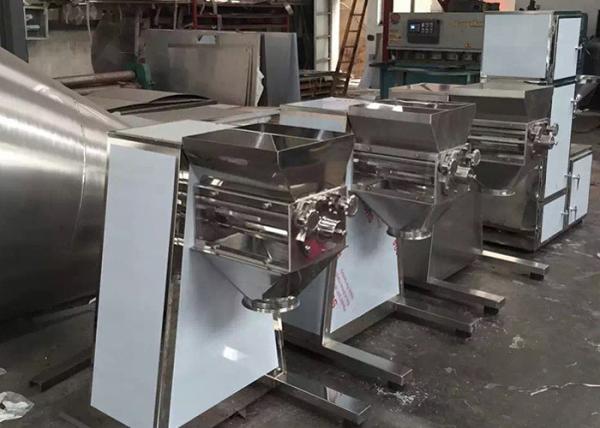

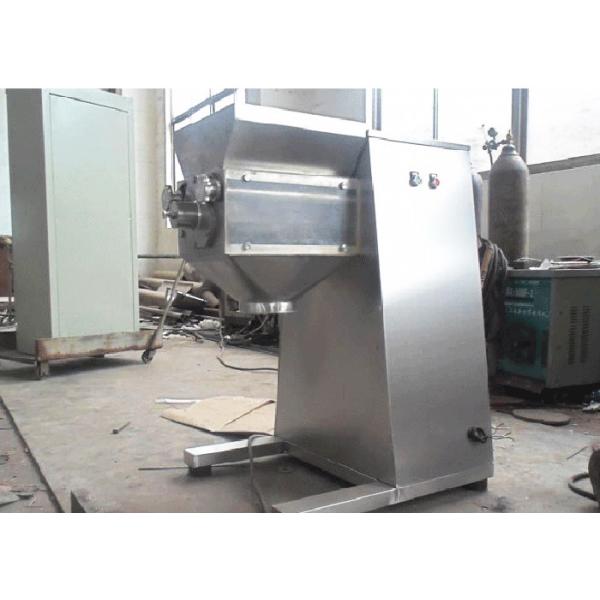

2.2kw Oscillating Machine , GMP Pharmaceutical Oscillating Granulator
2.2kw Oscillating Machine , GMP Pharmaceutical Oscillating Granulator
2.2kw Oscillating Machine , GMP Pharmaceutical Oscillating Granulator
2.2kw Oscillating Machine , GMP Pharmaceutical Oscillating Granulator
Specifications
Model Number :
YK
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1unit
Price :
USD 1690-3290 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100units per month
Delivery Time :
15days
Packaging Details :
export wooden case
Name :
oscillating granulator
Mesh size :
0.2mm-3mm
Roller size :
60mm 90mm 160mm 250mm 320mm
Principle :
swaying roller press
Standard :
GMP
Raw material :
soft mix wet powder
Function :
pelletizing
Description

Pharmaceutical Oscillating Granulator 2.2kw 1000 × 800 × 1300m Stable Performance

YK oscillating granulator is a kind of mixing moist powder, in the rotary drum of the positive and reverse rotation of the action,
Make the material mandatory through the roller of the triangular bars and sieve mesh made of special equipment for particles.

Oscillating granulator is mainly used in pharmaceutical, chemical, food and other industries to manufacture various specifications of the particles, drying into a variety of molded products, the machine can also be used to crush condensed into a block of dry material, all material contact is made of stainless steel materials. yk-Pellet Machine Features 1.
The machine has the advantages of compact structure, elegant appearance, convenient cleaning, simple operation, high output and low energy consumption. 2. Material contact is made of high-quality stainless steel and polished treatment, good finish, easy to clean, low noise, no wear material, operation, maintenance convenience, in line with the GMP requirements.



Technical Parameter

spec YK160 YK320
capacity 50-200 kg/h 50-400 kg/h
power 2.2kw 7.5kw
speed 65rpm 65rpm
sway angle 360o 360o
diameter Φ160mm Φ320mm
weight 450kg 750kg
overall dimension 1000×800×1300m 1500×1200×1500m
