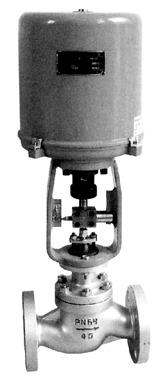

ZDLM Electronic Miniature Sleeve Control Valve
The ZDLM type electronic miniature sleeve control valve is composed of a 381L electronic actuator and a miniature sleeve control valve. It is smaller in volume and weight than ordinary control valves. The valve core adopts a balanced structure, featuring good stability, low noise, and a large allowable pressure difference. It adopts a low-resistance flow design, resulting in a large flow capacity. It is easy to assemble and disassemble, and its performance indicators are better than those of similar products.

The electronic miniature sleeve valve can directly accept the 4-20mA·DC (2-10V·DC) standard signal output by industrial control instruments or computers to drive the valve, so as to regulate industrial parameters such as pressure, flow rate, and temperature of the regulated medium. It is widely used in industrial process automatic control where low noise and large pressure difference are required.

This electronic sleeve control valve is equipped with a servo amplifier, a position transmitter, and a manual operation mechanism. It can realize segmented range adjustment, positive/negative action conversion, selection of valve position (open or closed) upon signal interruption, and has valve position signal feedback. The feedback signals available for selection include 4-20mA (standard), 0-10V, and 1-5V. It can also realize remote manual operation.
Basic technical parameters
Nominal diameterDN(mm) 25 40 50 65 80 100 150 200
Rated flow coefficient
Kv		 Linear 11 17.6 27.6 44 69 110 176 275 440 690
Equal percentage 10 16 25 40 63 100 160 250 400 630
Nominal pressure (MPa) 1.64.06.4
Actuator Model 381LSA-20 381LSB-30 381LSB-50 381LSC-65
Output shaft thrust
N		 2000 3000 5000 6500
Stroke mm 16 25 40 60
Input signal 4～20mA·DC
Full stroke time (S) 33 52 84 126
Flow characteristic Linear, Equal percentage
Allowable leakage 10⁻³ × valve rated capacity
Turndown ratio (R) 50∶1
Valve cover type Standard type, Hot plate type
Operating temperature (℃) -40～—+250,-40～—+450
Flange standard JB/T79
Allowable pressure difference (MPa) ≤ Nominal pressure 4.8

Performance Indicators

Item

Technical indicators

Basic error %

 ≤±2.5

Hysteresis %

 ≤±2.5

Dead band %

 ≤±1

Pure lag

 ≤1S

Deviation at start and end points %

 ≤±2.5

Rated stroke deviation %

 ≤+2.5

Material of main components and applicable temperature range

Valve body and bonnet

 ZG230-450 -40～+450℃
ZG1Cr18Ni9TiZG0Cr18Ni12MoTi -250～+550℃

Valve stem

 1Cr18Ni9Ti -250～+550℃

Valve plug

 ZG1Cr18Ni9ZG0Cr18Ni12MoTi -250～+550℃

Sleeve

 ZG1Cr18Ni9ZG0Cr18Ni12MoTi -250～+550℃

Packing

Polytetrafluoroethylene (PTFE)

 -40～+200℃

Flexible graphite

 -200～+600℃

Nominal diameter

DN		 φA L H H1
PN1.6 PN4.0 PN6.4

Standard type

Hot plate type

 PN1.6 PN4.0 PN6.4
20 225 181 194 206 636 723 53 53 65
25 184 197 210 655 738 58 58 68
40 255 222 235 251 676 769 73 733 83
50 254 267 286 689 782 80 80 88
65 255 276 292 311 706 816 90 90 100
80 298 317 337 766 876 98 98 105
100 352 368 394 776 894 108 115 125
150 270 451 473 508 896 1106 140 150 170
200 600 600 650 936 1196 168 188 203

Ordering Information
  1. Product model
  2. Nominal diameter
  3. Nominal pressure
  4. Operating temperature
  5. Flow characteristic
  6. Action mode
  7. Input signal
  8. Material of valve body and trim
  9. Actuator requirements
