HPAC High-Pressure Cage-Type Angle Valve
HPAC high-pressure cage-type angle valve is a pressure-balanced control valve, featuring small pressure drop loss in the valve body, large flow rate and wide adjustable range. The angle valve can be selected according to the requirements of pipeline turning layout.
The control valve is equipped with a multi-spring diaphragm actuator, which has a compact structure and large output force. This valve is widely applicable to high-pressure drop occasions requiring good dynamic stability, low noise and little cavitation corrosion.
Cv value and stroke are shown in Table 1. Table 1 |
Nominal diameter (mm) | 40 | 50 | 80 | 100 | 150 | 200 |
Valve seat diameter (mm) | 25 | 32 | 40 | 32 | 40 | 50 | 50 | 65 | 80 | 65 | 80 | 100 | 100 | 125 | 150 | 125 | 150 | 200 |
Rated Cv value | Equal percentage linearity | ANSI900,1500 JIS63K | 12 | 17 | 25 | 17 | 25 | 52 | 52 | 78 | 110 | 78 | 110 | 180 | 180 | 270 | 375 | 270 | 375 | 650 |
ANSI2500 | - | 12 | 17 | 12 | 17 | 31 | 31 | 52 | 78 | 52 | 78 | 125 | 125 | 180 | 270 | 180 | 270 | 470 |
Linear characteristic | ANSI900,1500 JIS63K | 12 | 20 | 30 | 20 | 30 | 62 | 62 | 90 | 135 | 90 | 135 | 210 | 210 | 330 | 485 | 330 | 485 | 700 |
ANSI2500 | - | 12 | 20 | 12 | 20 | 43 | 43 | 62 | 90 | 62 | 90 | 150 | 150 | 210 | 330 | 210 | 330 | 520 |
Rated stroke (mm) | 25 | 38 | 50 | 75 |
Allowable pressure difference
Equipped with HA or VA actuators (with positioners) are shown in Tables 2 and 3
A. Air-closed valves Table 2 |
Nominal pressure | Actuator | Supply pressure (MPa) | Spring range (MPa) | Allowable pressure difference |
Valve seat diameter (mm) |
40 | 50 | 80 | 100 | 150 | 200 |
ANSI 900 1500 JIS63K | HA3D | 0.28 | 0.04~0.20 | 15.3 26.4 | 11.6 19 | 7.8 11.3 | 5.8 7.4 | - | - |
0.3 | 15.3 26.4 | 11.6 24.8 | 7.8 15.2 | 5.8 10.3 | - | - |
0.35 | 0.08~0.24 | 26.1 26.4 | 23.3 26.4 | 15.6 17.2 | 11.7 11.8 | 6.4 | - |
0.4 | 26.4 | 23.3 26.4 | 15.6 26.4 | 11.7 19.1 | 7.8 11.7 | - |
HA4D | 0.28 | 0.04~0.20 | 21.1 26.4 | 20.1 26.4 | 13.5 22.7 | 10.1 15.9 | 6.7 9.1 | 5 5.7 |
0.3 | 26.3 26.4 | 20.1 26.4 | 13.5 26.4 | 10.1 21 | 6.7 12.5 | 5 8.3 |
0.35 | 0.08~0.24 | - | 26.4 | 26.4 | 20.2 23.5 | 13.5 14.2 | 9.5 |
0.4 | - | - | - | 20.2 26.4 | 13.5 22.6 | 10.1 15.8 |
VA5D | 0.28 | 0.04~0.20 | - | - | - | 13.8 23.4 | 9.2 14.1 | 6.9 9.5 |
ANSI 2500 | HA3D | 0.28 | 0.04~0.20 | 15.3 26.4 | 11.6 19 | 10.6 16.9 | 7.1 9.9 | 4.4 4.5 | - |
0.3 | 15.3 33.9 | 11.6 24.8 | 10.6 22.2 | 7.1 13.5 | 4.4 6.7 | - |
0.35 | 0.08~0.24 | 26.1 37.7 | 23.3 27.7 | 21.2 24.9 | 14.2 15.3 | 7.8 | - |
0.4 | 30.6 44 | 23.3 42.3 | 21.2 38.1 | 14.2 24.2 | 8.8 13.4 | - |
HA4D | 0.28 | 0.04~0.20 | 21.1 44 | 20.1 35.9 | 18.3 32.4 | 12.3 20.3 | 7.6 11 | 6.7 9.1 |
0.3 | 26.3 44 | 20.1 44 | 18.3 41.5 | 12.3 26.5 | 7.6 14.8 | 6.7 12.5 |
0.35 | 0.08~0.24 | 28.9 44 | 28.9 44 | 28.9 44 | 24.6 29.5 | 15.3 16.7 | 13.5 14.2 |
0.4 | 42 44 | 40.3 44 | 38.7 44 | 24.6 44 | 15.3 26.3 | 13.5 22.6 |
VA5D | 0.28 | 0.04~0.20 | - | - | - | 16.8 29.4 | 10.4 16.6 | 9.2 14.1 |
B. Air-to-open valves Table 3 |
Nominal pressure | Actuator | Supply pressure (MPa) | Spring range (MPa) | Allowable pressure difference |
Valve seat diameter (mm) or Cv value |
40 | 50 | 80 | 100 | 150 | 200 |
ANSI900 1500 JIS63K | HA3R | 0.28 | 0.08~0.24 | 15.3 26.4 | 11.6 19 | 7.8 11.3 | 5.8 7.4 | - | - |
0.3 | 19 26.4 | 17.5 19 | 11.3 | 7.4 | - | - |
0.35 | - | 18.9 19 | - | - | - | - |
HA4R | 0.28 | 0.08~0.24 | 21.1 26.4 | 20.1 26.4 | 13.5 22.7 | 10.1 15.9 | 6.7 9.1 | 5 5.7 |
0.3 | - | 21 26.4 | 20.3 22.7 | 15.2 15.9 | 9.1 | 5.7 |
0.35 | - | - | 21 22.7 | 15.9 | - | |
VA5R | 0.28 | 0.08~0.24 | - | - | - | 13.8 23.4 | 9.2 14.1 | 6.9 9.5 |
VA6R | 0.5 | 0.19~0.35 | - | - | - | 26.4 | - | |
0.5 | 0.19~0.40 | - | - | - | - | 19.1 26.4 | - |
ANSI2500 | HA3R | 0.28 | 0.08~0.24 | 15.3 26.4 | 11.6 19 | 10.6 16.9 | 7.1 9.9 | 4.4 4.5 | - |
0.3 | 19 26.4 | 17.5 19 | 15.9 16.9 | 9.9 | 4.4 4.5 | - |
0.35 | - | 18.9 19 | 16.9 | - | - | - |
HA4R | 0.28 | 0.08~0.24 | 21.1 44 | 20.1 35.9 | 18.3 32.4 | 12.3 20.3 | 7.6 11 | 6.7 9.1 |
0.3 | - | 21 35.9 | 21 32.4 | 18.4 20.3 | 11 | 9.1 |
0.35 | - | - | - | 20.3 | - | - |
VA5R | 0.28 | 0.08~0.24 | - | - | - | 16.8 29.4 | 10.4 16.6 | 9.2 14.1 |
VA6R | 0.4 | 0.19~0.35 | - | - | - | 36.2 44 | - | - |
0.5 | 0.19~0.40 | - | - | - | - | 21.6 36.8 | - |
I. Equipped with VP actuator (with positioner) see Table 4 |
Nominal pressure | Actuator | Nominal diameter (mm) | Supply pressure(MPa) |
0.3 | 0.4 | 0.5 |
ANSI9001500JIS63K | VP5 | 150 | 19.8 24.2 | 26.4 | 26.4 |
ANSI2500 | 19.8 28.1 | 26.4 38.9 | 3.3 4.4 |
ANSI9001500JIS63K | VP6 | 200 | 19.1 26.4 | 25.5 26.4 | 26.4 |
ANSI2500 | 19.2 44 | 25.5 44 | 31.9 44 |
Remarks: - If the actuator is equipped with an auxiliary air supply, the smaller of the two supply pressures shall be selected as the basis for calculating the allowable pressure difference.
- The condition for the allowable pressure difference when closed in the table is △P = P1 (P2 = 0). The pressure difference when fully closed varies slightly with the outlet pressure P2.
- The maximum allowable pressure difference shall not exceed the maximum value specified in ANSI B16.34 or JIS B2201.
- The inlet pressure P1 shall not exceed the allowable pressure difference when the valve is closed.
- The upper number in the same cell indicates the allowable pressure difference when the valve is fully open, and the lower number indicates the allowable pressure difference when the valve is fully closed.
|

Equipped with HA,VA5,VA6,VP actuator

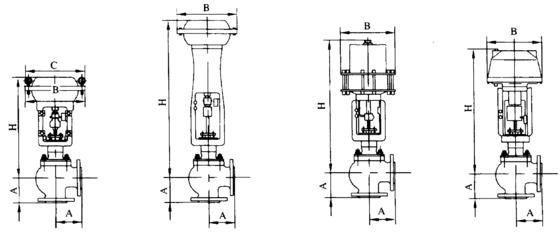

Flange distance refers to Table 5. Table 5 Unit: mm |
Nominal diameter | A |
JIS63K RF | ANSI900 | ANSI1500 | ANSI2500 |
RF,SW, BW | RJ | RF,SW, BW | RJ | RF,SW, BW | RJ |
40 | 161.5 | 166.5 | 179 | 180.5 |
50 | 177 | 187.5 | 189 | 188 | 189 | 225 | 225 |
80 | 215.5 | 220 | 221.5 | 230 | 230 | 270 | 270 |
100 | 248 | 255 | 256.5 | 265 | 260 | - | - |
150 | 349.5 | 357.5 | 359 | 385 | 388 | - | - |
200 | 492.5 | 457.5 | 459 | 486 | 491 | - | - |
