ZS A B T Type Pneumatic Piston Diaphragm Valve Corrosion Resistant
ZS A B T Type Pneumatic Piston Diaphragm Valve Corrosion Resistant
Specifications
Brand Name :
WEYO
Model Number :
ZS(AB)T
Place of Origin :
China
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
L/C, T/T
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Description

ZS(AB)T Pneumatic Piston Diaphragm Valve

The ZS A/B/T type pneumatic piston diaphragm control valve has better stability and greater pressure difference resistance than ZJHT within a larger range of nominal diameters, while being relatively small in size and light in weight. However, it must be equipped with a valve positioner to achieve proportional regulation control. A solenoid valve can be used for two-position control. The ZS A/B/T type consists of a ZS A/B type spring-loaded piston actuator and a diaphragm control valve. It is used for the regulation and control of strong corrosive media such as strong acids and alkalis, as well as high-viscosity media with fibers, toxic and harmful media.

Main technical parameters

Nominal diameter

DNmm		 15 20 25 32 40 50 65 80 100 125 150 200 250

Rated flow coefficient

Kv		 8 12 16 38 60 68 90 150 300 500 600 1200 1600

Nominal pressure

MPa		 1

Nominal pressure

Model

 ZS A
B		 -1 ZS A
B		 -2 ZS A
B		 -3 ZS A
B		 -4 ZS A
B		 -5 ZS A
B		 -6

Cylinder diameter

mm		 80 100 125 160 200 250

Stroke

mm		 10 16 25 40 60

Spring range

KPa		 40～200,80～240,Two-position air supply pressure,400～600

Flow characteristic

Approximately quick-opening

Flange standard

 JB/T79.1-94

Performance indicators

Item

With positioner

 Item With positioner

Basic error %

 ≤±2.5

Deviation at start and end points %

 ±3

Hysteresis %

 ≤2.5

Allowable leakage L/h

Rubber diaphragm

 0.01%×Rated capacity of the valve

Dead band %

 ≤1.0

F46 diaphragm

 0.5×Rated capacity of the valve

Rated stroke deviation %

 ±2.5

Materials of main components and applicable temperature ranges

Valve body material

Lining material

Diaphragm material

Operating temperature (℃)

Applicable occasions
HT200 无 Chloroprene rubber 0～65 non-corrosive occasions; abrasives, mud
HT200 F46 fluororubber -20～+180

Strong acids, strong alkalis, strong oxidants, and general organic solvents.

Not suitable for slurry-like media.
HT200 F46 F46 -20～+200 It has better corrosion resistance than the above-mentioned ones.
ZG1Cr18Ni9Ti 无 fluororubber -20～+180 Media such as general acids, alkalis, and organic solvents
Note: The valve body can be made of corrosion-resistant materials, and the diaphragm material is made of special fluororubber, with a pressure up to PN16 and PN25.

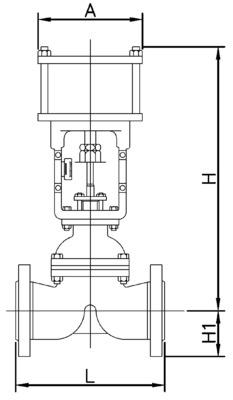

Nominal diameter
DN(mm)		 Overall dimension
A H H1 L
15 94 290 48 140
20 300 53 145
25 148 420 58 155
32 430 68 165
40 185 521 73 190
50 528 80 210
65 232 680 90 240
80 688 98 270
100 698 108 335
125 283 880 123 375
150 987 140 410
200 945 168 540
250 283(Double cylinder) 1180 200 650

Code of valve body material, lining and diaphragm
Base and lining HT200 ZG1Cr18Ni9Ti diaphragm
none F46 lined with chlorotrifluoroethylene chloroprene rubber fluororubber F46
code 1 3 2 4 1 3 2

Optional accessories
  • A positioner and an air filter pressure reducer must be equipped for proportional control
  • The handwheel mechanism has a side-mounted type: ZPXS, and a top-mounted type: ZDS
  • A solenoid valve can be equipped for two-position control
