Specifications
Model Number :
BSJ70L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Supply Ability :
1000 sets per month
Delivery Time :
5-10 days
Packaging Details :
wooden box
Payment Terms :
T/T
Surface :
Painting
Color :
Army Green
Pumping Rate :
280 m3/h (4670 L/min)
Material :
Aluminium alloy
G.W. :
63kgs
N.W. :
51kgs
Meas. :
85*40*42cm
Features :
Corrosion resistance
Description

160CFM (280m³/h) 50Hz/60Hz 0.75kW 2Poles Mechanical Booster Pump,Roots Pump BSJ70L

Description :

Roots vacuum pumps, which are also called Roots blowers, are rotary plunger-type pumps where two symmetrically shaped impellers rotate in opposite directions inside the pump housing.

Characteristics:

  • The use of an oil-free intermediate seal, multiple sealed ways to ensure a hight clean vacuum environment in the rotor chamber.
  • Advanced processing to ensure the good geometrical symmetry of the rotors, as well as low noise and long service life.
  • The rotors are made of aluminium alloy, which has the characteristics of fast corrosion resistance and energy-efficient.

​Technical Parameter :

Model Units BSJ70L
Pumping Rate 50 Hz m³h-1 / Lmin-1 280/4670
60 Hz 330/5500
Max Inlet Pressure*1 50Hz Pa 1.2x103
60Hz Pa 9.3x102
Max allowable differential pressure

50Hz

Pa 4.0x103
60Hz Pa 3.3x103

Ultimate Vacuum*2

Pa

4×10-1

Motor Power kW(hp) 0.75 (1)
Inlet -- VG80
Outlet -- VF80
Cooling Method Water cooled
Oil Need L 0.8
Ambient Temp. 5~40
Vacuum Pump Oil -- BSO-46

Note:

*1 The value changes depending on the performance of the fore pump. The above data is obtained when the pump is used in combination with a standard fore pump.

*2 The value of 'Ultimate Pressure' in this sheet is measured by the Pirani gauge when the Baosi special pump oil is used, and the value should be 4x10-3 if the McLeod gauge is used.

Performance Curve:

BSJ70L 160cfm, 280m3/h Roots Vacuum Pump 50Hz 0.75kW, Army Green

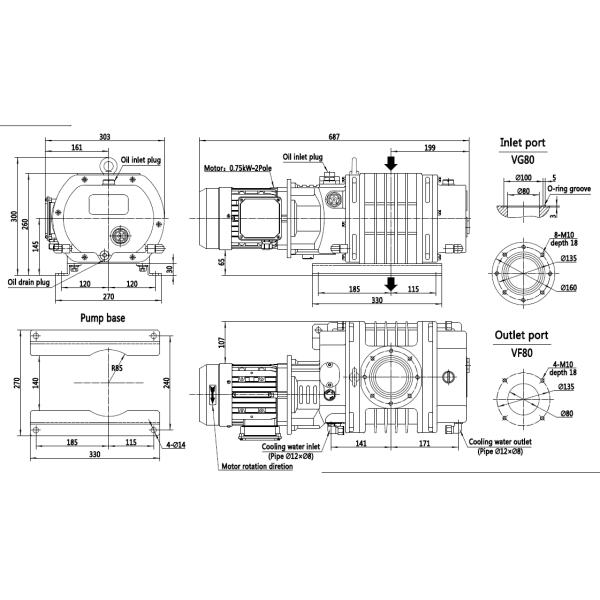

Dimensions:

BSJ70L 160cfm, 280m3/h Roots Vacuum Pump 50Hz 0.75kW, Army Green

Applications

  • Semiconductor Fabrication
  • LED & Display Manufacturing
  • Vacuum Heat Treatment
  • Physical Vapor Deposition (PVD)
  • Vacuum Distillation & Drying
  • Food Preservation & Processing
  • Vacuum Packaging
  • Scientific Research

Typical System Configurations

  • Roots + Rotary Vane Pump
    Commonly used in general industrial applications (e.g., packaging, heat treatment) to achieve medium vacuum (10⁻¹–10³ Pa).
  • Roots + Screw Pump
    Preferred for dry processes (e.g., semiconductor etching) to avoid oil contamination, with screw pumps serving as the backing stage.
  • Roots + Turbomolecular Pump
    Used in UHV systems (10⁻⁶ Pa or lower) for research and aerospace, where roots pumps pre-evacuate chambers before turbopumps take over.
