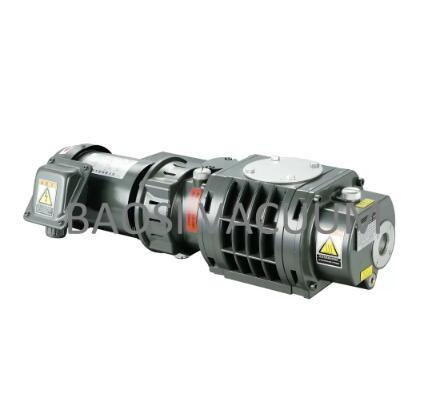

160CFM Roots Vacuum Pumps Oil Rotary Vacuum Pump Aluminium Alloy Structure
160CFM Roots Vacuum Pumps Oil Rotary Vacuum Pump Aluminium Alloy Structure
Specifications
Model Number :
BSJ70L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 2400 per set
Supply Ability :
1000 sets per month
Delivery Time :
5-30 days
Packaging Details :
wooden box
Surface :
Painting
Color :
Army Green
Pumping Rate :
280 m3/h (160cfm)
Material :
Aluminium alloy
G.W. :
63kgs
N.W. :
52kgs
Meas. :
85*40*42cm
Features :
Corrosion resistance
Description

160CFM (280m³/h) 50Hz 0.75kW 2Poles Mechanical Booster Pump,Roots Pump BSJ70L

Description :

Roots vacuum pumps ,which are also called Roots blowers,are rotary plunger type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.

Characteristics:

  • The use of oil-free intermediat seal,multiple sealed way to ensure the hight clean vacuum environment in the rotor chamber .
  • Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
  • The whole rotors is made of aluminium alloy which has the charateristics of fast corrosion resistance and energy-efficient.

​Technical Parameter :

Model Units BSJ70L
Pumping Rate 50 Hz m³h-1 / Lmin-1 280/4670
60 Hz 330/55000
Max Inlet Pressure 50Hz Pa 1.2x103
60Hz Pa 9.3x102

Ultimate Vacuum

 Pa

4×10-2
Motor Power kW(hp) 0.75 (1)
Inlet -- VG80
Outlet -- VF80
Cooling Method Water cooled
Oil Need L 0.8
Ambient Temp. ℃ 5~40
Vacuum Pump Oil -- BSO-46

Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.

Performance Curve:

160CFM Roots Vacuum Pumps Oil Rotary Vacuum Pump Aluminium Alloy Structure

Dimensions:

160CFM Roots Vacuum Pumps Oil Rotary Vacuum Pump Aluminium Alloy Structure

160CFM Roots Vacuum Pumps Oil Rotary Vacuum Pump Aluminium Alloy Structure

Applications

  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freez drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses

We provide you with individual support,we train you and we offer 24/7 service worldwide.
