Freeze Drying Roots Vacuum Pump 500m3/H Rotary Vane Blower Plunger Type
Freeze Drying Roots Vacuum Pump 500m3/H Rotary Vane Blower Plunger Type
Specifications
Model Number :
BSJ150L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 1920 per set
Supply Ability :
1000 sets per month
Delivery Time :
5-30 days
Packaging Details :
wooden box
Surface :
Painting
Color :
Army Green
Pumping Rate :
600 m3/h(1000L/min)
Material :
Aluminium alloy
G.W. :
95kgs
N.W. :
82kgs
Meas. :
102*50*50cm
Features :
Corrosion resistance
Description

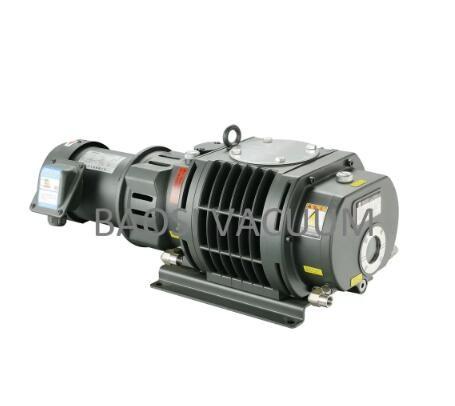

Army Green , 500m³/h Mechanical Booster Pump,Roots Pump BSJ150L

Description :

Roots vacuum pumps ,which are also called Roots blowers,are rotary plunger type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.

Characteristics:

  • The use of oil-free intermediat seal,multiple sealed way to ensure the hight clean vacuum environment in the rotor chamber .
  • Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
  • The whole rotors is made of aluminium alloy which has the charateristics of fast corrosion resistance and energy-efficient.

​Technical Parameter :

Model Units BSJ150L
Pumping Rate 50 Hz m³h-1 / Lmin-1 500/8330
60 Hz 600/10000
Max Inlet Pressure 50Hz Pa 1.3x103
60Hz Pa 1.1x103

Ultimate Vacuum

 Pa/ mbar

0.04/4×10-4
Motor Power kW(hp) 2.2(3.0)
Inlet -- VG80
Outlet -- VF80
Cooling Method Water cooled
Oil Need L 1.6
Ambient Temp. ℃ 5~40
Weight -- BSO-46

Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.

Performance Curve:

Freeze Drying Roots Vacuum Pump 500m3/H Rotary Vane Blower Plunger Type

Dimensions:

Freeze Drying Roots Vacuum Pump 500m3/H Rotary Vane Blower Plunger Type

Freeze Drying Roots Vacuum Pump 500m3/H Rotary Vane Blower Plunger Type

Applications

  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freez drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses
