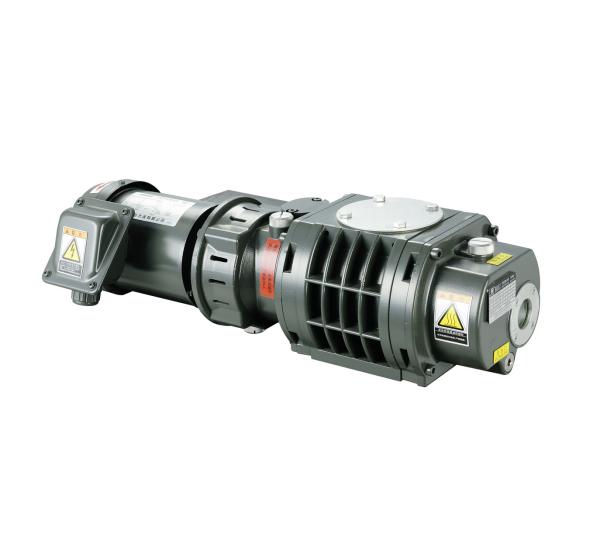

30L/S Mechanical Roots Booster Vacuum Pump Low Noise Corrosion Resistance
30L/S Mechanical Roots Booster Vacuum Pump Low Noise Corrosion Resistance
Specifications
Model Number :
BSJ30L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Supply Ability :
1000 sets per month
Delivery Time :
5-30 days
Packaging Details :
cartoon
Brand Name :
KACO
Payment Terms :
T/T
Surface :
Painting
Color :
Army Green
Pumping Rate :
100 m3/h(1667L/min)
Material :
Aluminium alloy
G.W. :
30kgs
N.W. :
29kgs
Meas. :
65*34*24cm
Features :
Corrosion resistance
Description

30L/s (100m³/h) 0.4kW Mechanical Army Green Booster Pump,Roots Pump BSJ30L

Description :

Roots vacuum pumps, which are also called Roots blowers, are rotary plunger-type pumps where two symmetrically shaped impellers rotate in opposite directions inside the pump housing.

Baosi Roots vacuum pumps offer a reliable, clean, and energy-efficient solution for demanding vacuum applications. Their combination of high performance, durability, and low maintenance makes them a preferred choice across multiple industries.

Characteristics:

  • The use of an oil-free intermediate seal and multiple sealed ways ensures a high, clean vacuum environment in the rotor chamber.
  • Advanced processing to ensure the good geometrical symmetry of the rotors, as well as low noise and long service life.
  • The whole rotor is made of aluminium alloy, which has the characteristics of fast corrosion resistance and energy efficiency.

  • Precision-balanced rotors and robust construction minimize vibration and noise

  • Wide pressure range and stable performance

  • Energy-saving operation

  • Compact and modular structure.

​Technical Parameter :

Model Units BSJ30L
Pumping Rate 50 Hz m³h-1 / Lmin-1 95/1584
60 Hz 114/1900
Max Inlet Pressure 50Hz Pa 1.3x103
60Hz Pa 1.3x102

Ultimate Vacuum

 Pa

4×10-1
Motor Power kW(hp) 0.4(0.55)
Inlet -- VG50
Outlet -- VF50
Cooling Method air cooling
Oil Need L 0.4
Ambient Temp. ℃ 5~40
Vacuum Pump Oil -- BSO-46

Note: The value of 'Ultimate Pressure' in this sheet is measured by the Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the McLeod gauge is used.

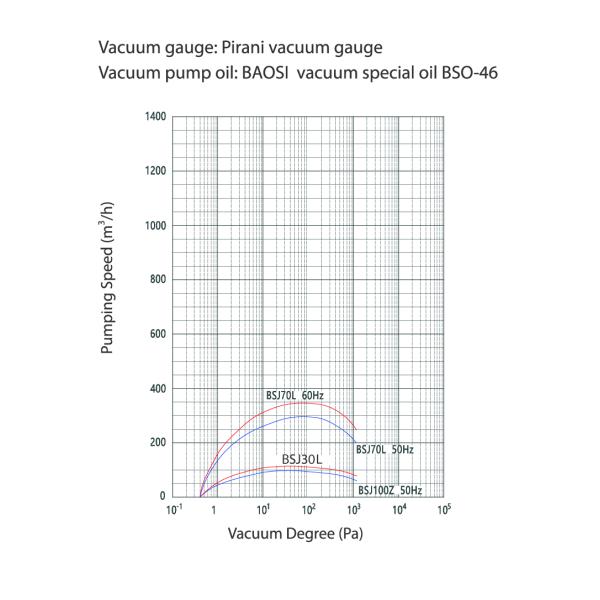

Performance Curve:

30L/S Mechanical Roots Booster Vacuum Pump Low Noise Corrosion Resistance

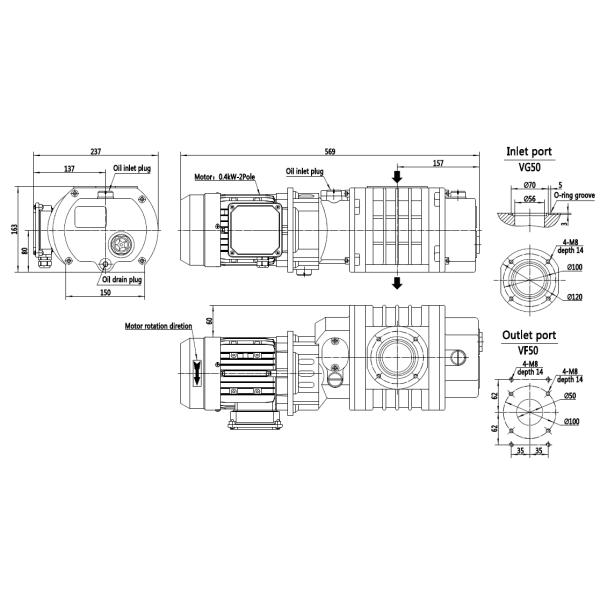

Dimensions:

30L/S Mechanical Roots Booster Vacuum Pump Low Noise Corrosion Resistance

Applications

  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freeze drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses
  • Food packaging
  • Power Generation
