DRV175 Two Stage Rotary Vacuum Pump High Speed Oil Lubricated Rotary Vane Pumps 7.5kW
DRV175 Two Stage Rotary Vacuum Pump High Speed Oil Lubricated Rotary Vane Pumps 7.5kW
Specifications
Model Number :
DRV175
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
＄400-＄6000
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-10 days
Packaging Details :
wooden box
Brand Name :
KACO
Surface :
Painting
Color :
7047
Speed :
160 m3/h
Oil need :
20~25 L
Noise level :
70
Motor power :
7.5 kW
Description

High Pumping Speed 160m3/h Two Stage Oil Sealed Rotary Vane Vacuum Pump DRV175

  • The use of a non-spring rotary vane to achieve low noise, low vibration, and long service life.
  • A built-in check valve is used to avoid the oil return phenomenon.
  • Built-in forced-fed oil pump is used to ensure the long-term continuous operation of the pump at atmospheric pressure.
  • The use of air cooling, oil cooling, water cooling, and other cooling methods ensures a good cooling effect and makes the long-term stable running of the pump as well as the stable pumping performance.
  • A reasonable structure has the advantages of easy assembly and disassembly, as well as the fast and easy maintenance.

​Technical Data

Units DRV175
Pumping Rate 50 Hz m³h-1 / Lmin-1 160/2656
60 Hz 196/3254
Ultimate Vacuum Without gas ballast Pa/ mbar 0.5/5×10-3
With gas ballast 2/2×10-2
Inlet VG80
Outlet VG50
Oil Needs litre 20~25
Noise Level dB 75

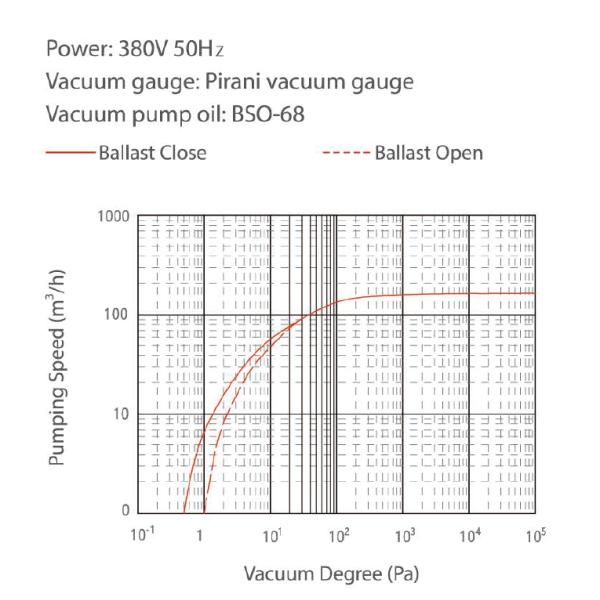

Performance Curve

DRV175 Two Stage Rotary Vacuum Pump High Speed Oil Lubricated Rotary Vane Pumps 7.5kW

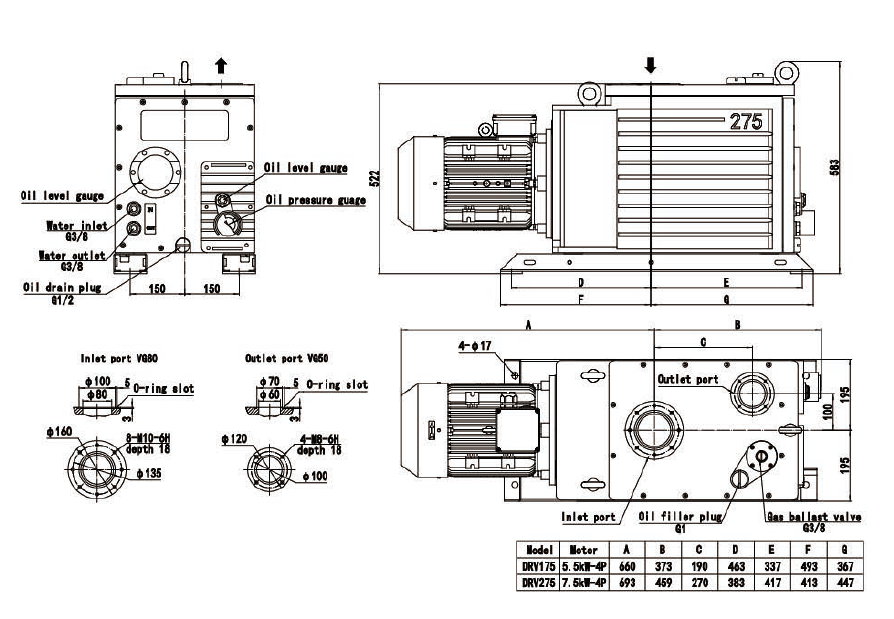

Dimensions

DRV175 Two Stage Rotary Vacuum Pump High Speed Oil Lubricated Rotary Vane Pumps 7.5kW

Application

Two-stage oil rotary vane vacuum pumps are widely used across multiple industries due to their ability to achieve relatively high vacuum levels and their reliability.

Vacuum metallurgy process.

Thin film coating technologies.

Decorative and Functional coating.

Mass Spectrometry.

Electron Microscopy

Food Industry

Pharmaceutical freeze drying.

Refrigeration and air Conditioning system evacuation, drying, and backfilling.

Laboratory Equipment
