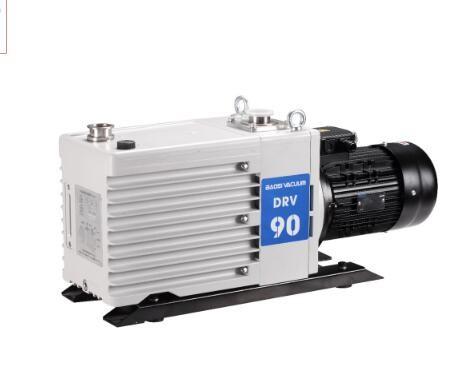

90 m³/h Two-stage Oil Sealed Rotary Vane Vacuum Pump DRV90 RAL 7047
90 m³/h Two-stage Oil Sealed Rotary Vane Vacuum Pump DRV90 RAL 7047
Specifications
Model Number :
DRV90
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
＄400-＄6000
Payment Terms :
T/T
Supply Ability :
500 sets per month
Delivery Time :
5-10 days
Packaging Details :
plywooden box
Surface :
Powder painting
Color :
RAL 7047
Speed :
90 m³/h 50Hz
Ultimate pressure :
0.5 Pa
Noise level :
65dB(A)
Motor power :
2.2kW
Weight :
~91kgs
Description

DRV90 90m3/h Two-Stage Oil Sealed Rotary Vane Vacuum Pump

When the ambient temperature range is under 40℃, the air inlet pressure is less than 1300Pa, which allows long-term continuous operation. However, when pumped gas relative humidity is above 90%, it should open the gas ballast valve.

Features&Benefits

*Using a non-spring rotary vane to achieve low noise, low vibration, and long service life.

*A Built-in oil check valve is used to avoid the oil return phenomenon.

*A Built-in forced-fed oil pump is used to ensure the long-term continuous operation of the pump at atmospheric pressure.

*The use of air cooling, oil cooling, water cooling, and other cooling methods to ensure a good cooling effect, and make the long-term stable running of the pump and the stable pumping performance.

*Reasonable structure has the advantages of easy assembly and disassembly as well as fast and easy maintenance.

​Technical Data

Units DRV90
Pumping Rate 50 Hz m³h-1 / Lmin-1 90/1500
60 Hz 108/1800
Ultimate Vacuum Gas ballast off Pa/ mbar 0.5/5×10-3
Gas ballast on 4/4×10-2
Inlet KF40
Outlet KF40
Oil Capacity liter 5.5
Noise Level dB(A) ≤65

Performance Curve

90 m³/h Two-stage Oil Sealed Rotary Vane Vacuum Pump DRV90 RAL 7047

Dimensions

DRV60［90］

90 m³/h Two-stage Oil Sealed Rotary Vane Vacuum Pump DRV90 RAL 7047

Application

Vacuum metallurgy

Thin film coating

Freeze drying
